iBeam TE-JPKT - Box Contents and Components; Included Components; Vehicle Applications and Compatibility; Vehicle Compatibility

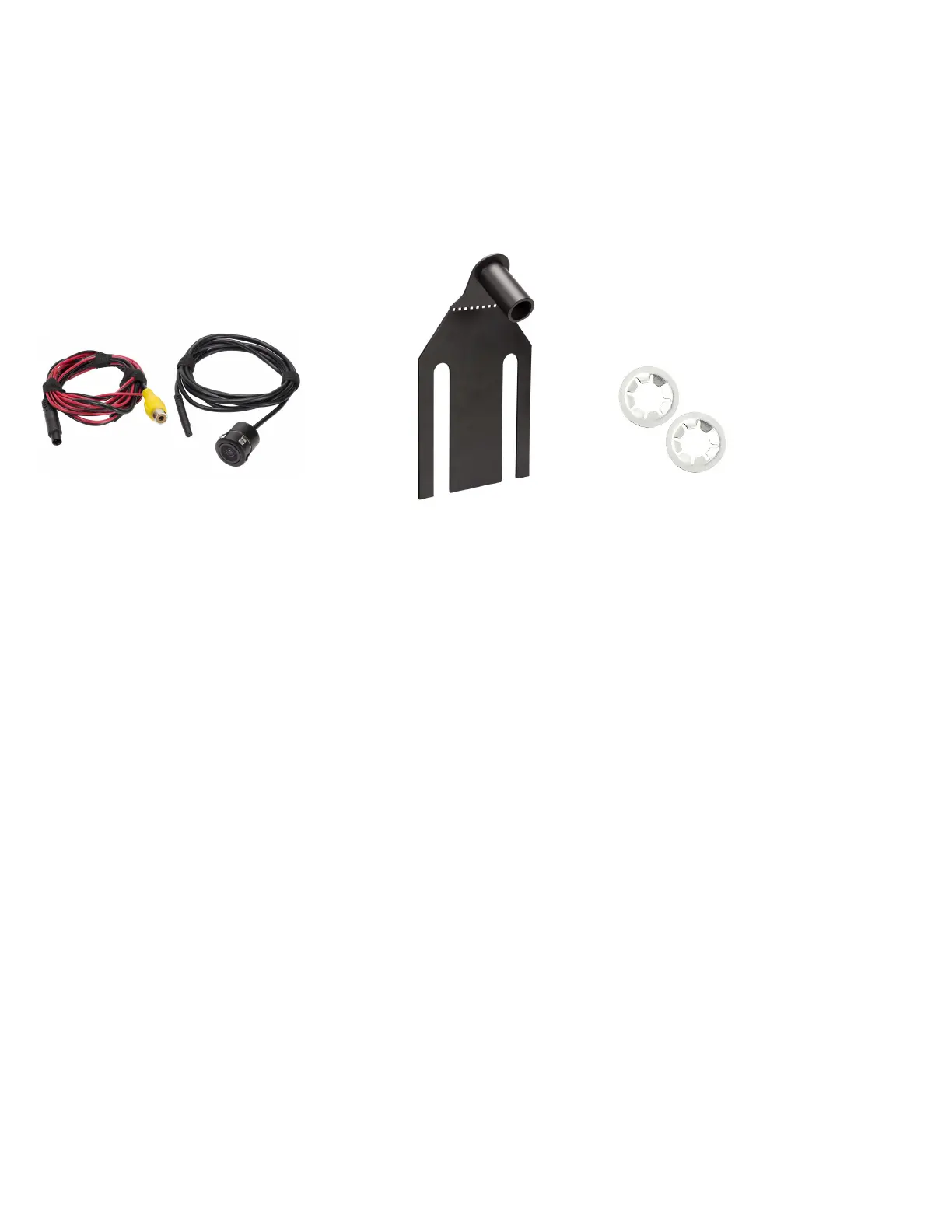

1. Box Contents
Camera and wiring Bracket 2 Push nuts
• Applications
2007-2018* Jeep Wrangler (* 2018 JK trim only)
• Installation of camera
• Run camera wire through stem of bracket, DO NOT pop the camera
into the bracket before confirming visual on monitor.
• Connect the RED wire to a 12V reverse trigger.
• Connect the BLACK wire to a chassis ground.
• If reverse signal is needed in the front of vehicle, RED wire with RCA
will provide that signal from the red wire in the rear of the vehicle.
• If parking lines are needed, please cut the white loop on the harness.
