ibis HAKKA MX User Manual

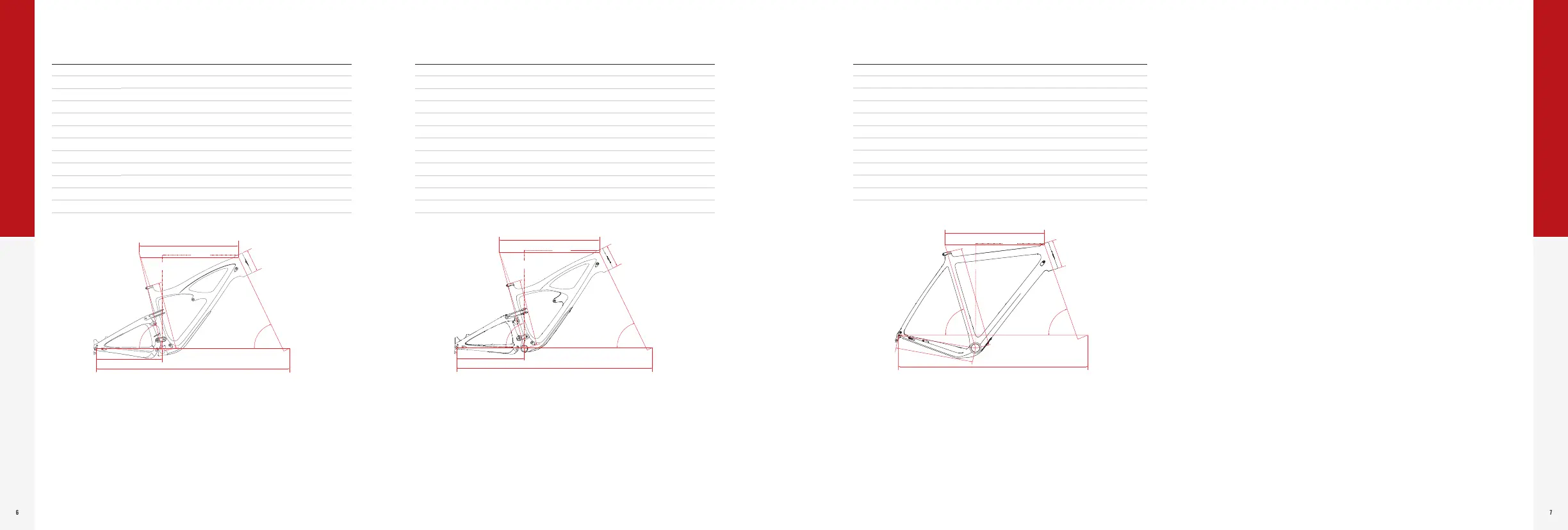

REACH
B
STACK
C
A
E
F
G
D
REACH
STACK
E
A
G
B
C
D
F
B
REACH
STACK
C
A
E
F
G
D
6 7
• 650b (27.5”) wheels
• 130mm rear wheel dw-link travel
• Best with 140mm forks
• 65.4º head angle with a 140mm fork
• Cable routing through continuous internal tubes
• Chainstay length: 16.7”
• Threaded bottom bracket (73mm English thread)
• ISCG 05 compatible with optional removable adapter
• Tapered headtube and steerer, ZS44 upper, ZS56 lower
• 12 x 148mm BOOST rear axle
• 160mm post mount rear brake
MOJO
SIZE SMALL MEDIUM LARGE X-LARGE
SEATTUBE A
14.2” 14.5” 16.5” 18.5”
TOPTUBE B 580mm 603mm 632mm 666mm
HEADTUBE C 109mm 126mm 142mm 158mm
CHAINSTAY D 425mm 425mm 425mm 425mm
SEAT ANGLE E 76.6° 76.6° 76.6° 76.6°
HEAD ANGLE F 65.4° 65.4° 65.4° 65.4°
WHEELBASE G 1166mm 1193mm 1225mm 1262mm
STACK 586mm 601mm 616mm 630mm
REACH 440mm 460mm 485mm 515mm
STANDOVER 680mm 690mm 720mm 742mm
BB DROP 18mm 18mm 18mm 18mm
• 700c or 650b (27.5”) wheels
• Trail: 67mm @ 71.5º head angle, 70mm @ 71º and 73mm @ 70.5º
• Super versatile internal cable routing, Di2 compatible
• T47 bottom bracket (68mm shell width)
• 700x40c BB Height: 283mm
• 700x33c or 27.5x2.1” BB Height: 277mm
• 34.9mm bottom pull front derailleur
• Tapered headtube: IS41 upper, IS52 lower
• 142x12mm rear dropout spacing
• 140mm flat mount rear (160mm max rotor)
SIZE 49 53 55 58 61
SEATTUBE A 455mm 525mm 550mm 575mm 605mm
TOPTUBE B 520mm 540mm 550mm 570mm 590mm
HEADTUBE C 110mm 135mm 155mm 175mm 195mm
CHAINSTAY D 430mm 430mm 430mm 430mm 430mm
SEAT ANGLE E 74.5° 73.5° 73.5° 73.5° 73.5°
HEAD ANGLE F 70.5° 71.5° 72° 72° 72°
WHEELBASE G 1007mm 1011mm 1021mm 1037mm 1057mm
STACK 532mm 560mm 580mm 599mm 616mm
REACH 370mm 373mm 382mm 391mm 406mm
STANDOVER 729mm 785mm 802mm 827mm 853mm
BB DROP 70mm 70mm 70mm 70mm 70mm
MOJO HD5
SIZE SMALL MEDIUM LARGE X-LARGE
SEATTUBE A 14” 14.5” 16.5” 18.5”
TOPTUBE B 582mm 606mm 635mm 669mm
HEADTUBE C 109mm 126mm 142mm 158mm
CHAINSTAY D 430mm 430mm 430mm 430mm
SEAT ANGLE E 76° 76° 76° 76°
HEAD ANGLE F 64.2° 64.2° 64.2° 64.2°
WHEELBASE G 1184mm 1211mm 1243mm 1280mm
STACK 595mm 611mm 626mm 640mm
REACH 427mm 447mm 472mm 503mm
STANDOVER 696mm 710mm 731mm 750mm
BB DROP 7mm 7mm 7mm 7mm
SADDLE HEIGHT FOR
SEATTUBE ANGLE
640mm 690mm 760mm 810mm
• 650b (27.5”) wheels
• 153mm rear wheel dw-link travel
• Approved for 160-170mm forks
• 64.2º head angle with a 170mm fork
• Cable routing through continuous internal tubes
• Chainstay length: 16.9”
• Threaded bottom bracket (73mm English thread)
• ISCG 05 compatible with removable adapter
• Tapered headtube and steerer, ZS44 upper, ZS56 lower
• 12 x 148mm BOOST rear axle
• 180mm post mount rear brake
BUILD

BUILD


ibis HAKKA MX Specifications

General

Frame Material	Carbon Fiber
Wheel Size	700c
Brake Type	Disc
Max Chainring Size	50t
Seatpost Diameter	27.2mm
Drivetrain	1x or 2x
Tire Clearance	700c x 40mm
Fork	Enve Cross Disc Fork
