ibis Mojo Sl-R User Manual

50

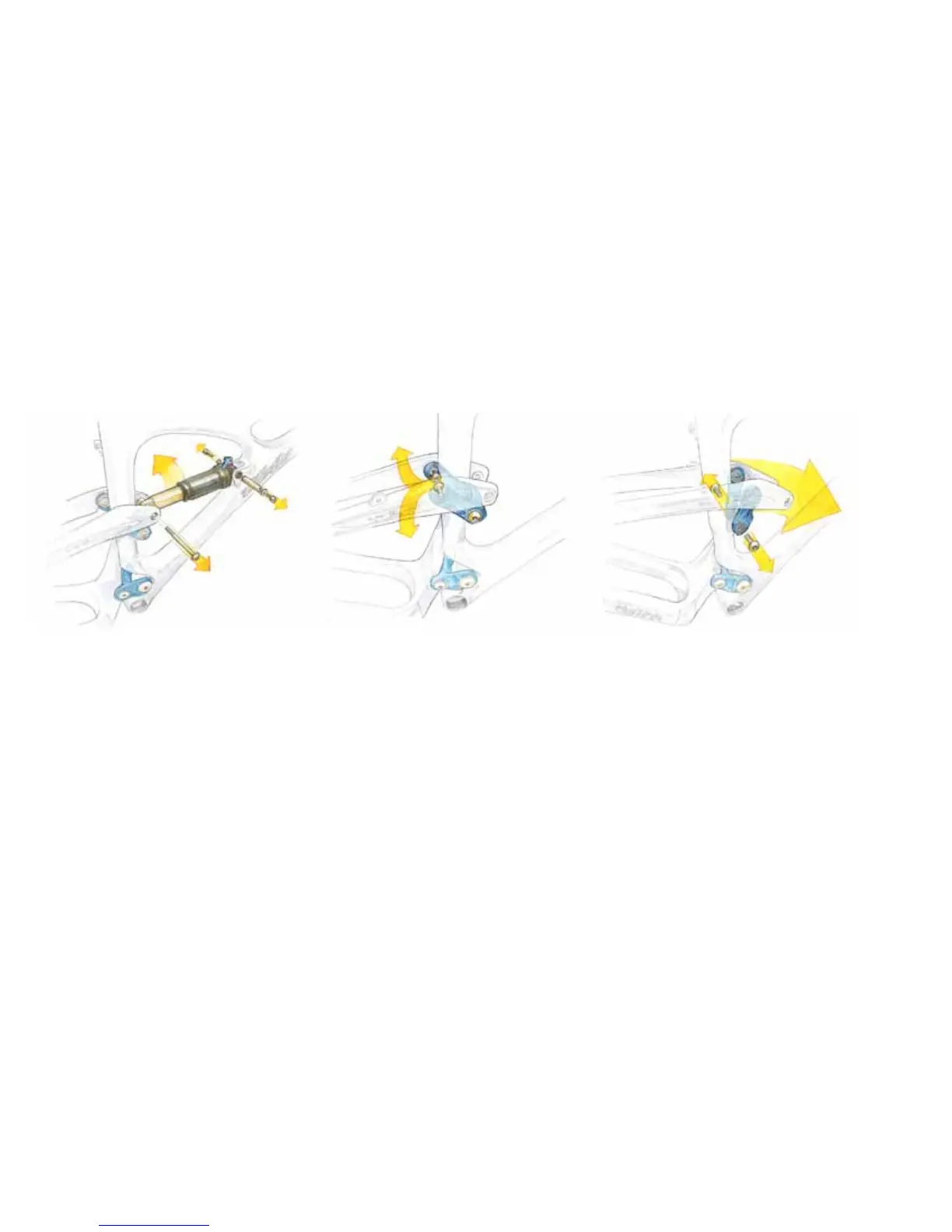

Step 1
Put your freshly cleaned Mojo in a
work stand. Remove the front derail-
leur, cranks, and the rear wheel.
Remove the shock by removing the
shock bolts with two 4mm and one
6mm Allen wrench.
Step 3
Remove the upper link from the front
triangle. It will help to slightly spread
apart the stays of the swingarm while
you remove the link.
Mojo Swingarm Removal
Step 2
Using a 5mm Allen wrench,
remove all four 5mm bolts that hold
the upper link to the swingarm and
front triangle. Since the strut on the
swingarm blocks access to the final
bolt, rotate the swingarm up to re-
move that last 5mm bolt.
