ibis Mojo Sl User Manual

5

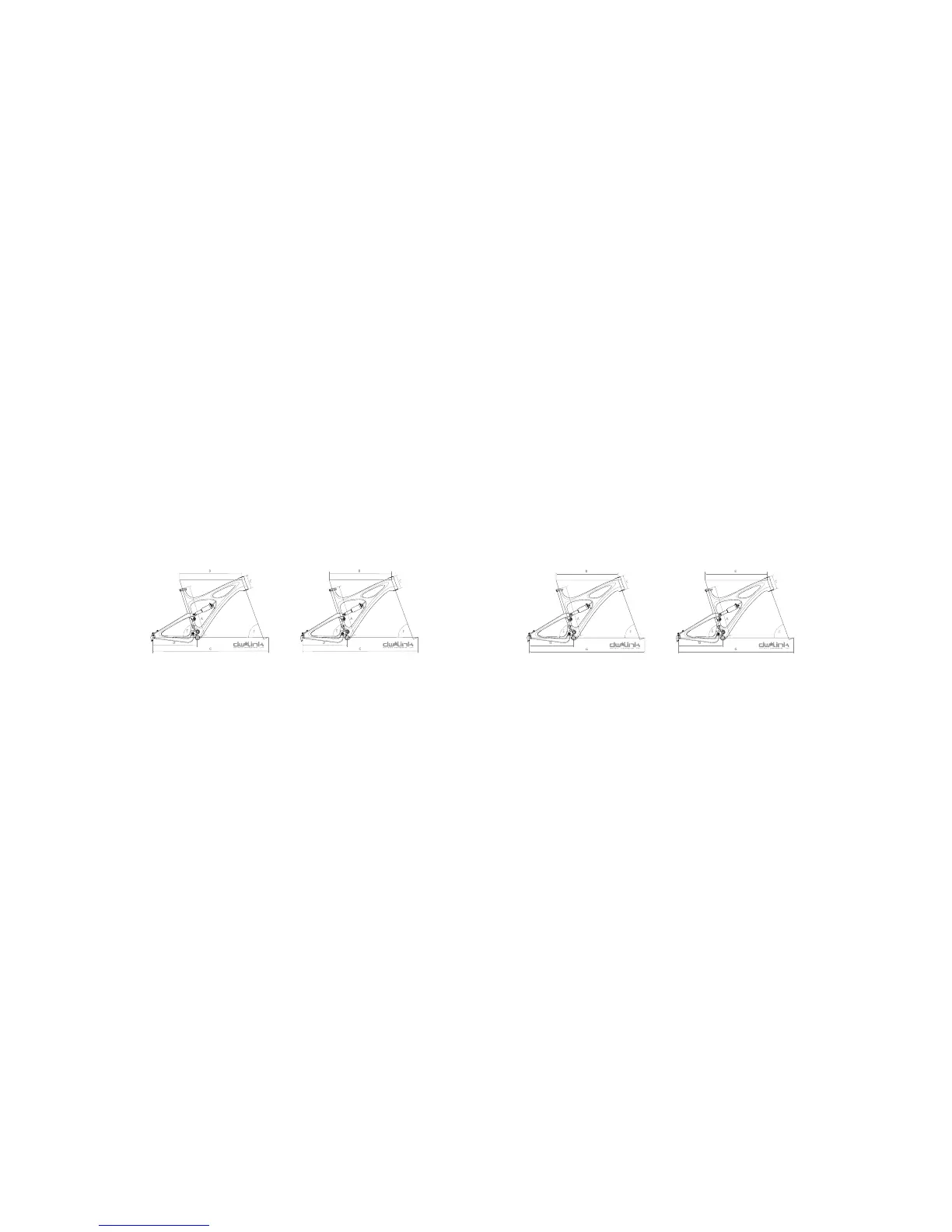

Frame Geometry Chart
4
Frame Geometry Chart
• 140mm rear wheel travel
• 130 to 160mm fork travel compatibility
• 31.6mm seat post
• 135mm hub with a 12mm through axle*
• 68mm bottom bracket
• Shock Specs: 7.875” (200mm) eye to eye, 2.0” (50mm) travel
• 2.8:1 leverage ratio
• For tapered steerer, use this headset: IS ZS44/28.6 | EC49/40
• For 1
1
/8” straight steerer, use this headset: IS ZS44/28.6 | EC49/30
• 140mm rear wheel travel
• 130 to 160mm fork travel compatibility
• 31.6mm seat post
• 34.9mm clamp top pull front derailleur
• 135mm hub with a standard dropout
• 68mm bottom bracket
• Shock Specs: 7.875” (200mm) eye to eye, 2.0” (50mm) travel
• 2.8:1 leverage ratio
• 1
1
/8” Integrated Standard Headset: S.H.I.S. IS41/28.6 | IS41/30
• 160mm rear wheel travel
• 160 to 180mm fork travel
• 31.6mm seat post
• 135mm hub with a 12mm through axle*
• 68mm bottom bracket
• Shock Specs: 8.5” (216mm) eye to eye, 2.5” (63.5mm) travel
• 2.52:1 leverage ratio
• For tapered steerer, use this headset: IS ZS44/28.6 | EC49/40
• For 1
1
/8” straight steerer, use this headset: IS ZS44/28.6 | EC49/30
Mojo Sl
Mojo Hd 140 Mojo Hd 160
*Measurements Taken With 160mm Fork, Geometry Specs with
180mm Fork Available on Ibis website.
*Measurements Taken With 150mm Fork.
Size
Seattube
Toptube
Headtube
Chainstay
Seat Angle
Head Angle
Wheelbase
A
B
C
D
E
F
G
Small
15”
564mm
94mm
435mm
71°
67°
1093mm
Medium
17”
587mm
103mm
435mm
71°
67°
1114mm
Large
19”
604.5mm
118mm
435mm
71°
67°
1134mm
X-large
21”
625mm
134mm
435mm
71°
67°
1155mm
Size
Seattube
Toptube
Headtube
Chainstay
Seat Angle
Head Angle
Wheelbase
A
B
C
D
E
F
G
Small
15”
560mm
100mm
429mm
73°
69°
1063.6mm
Medium
17”
580mm
115mm
429mm
73°
69°
1084.5mm
Large
19”
600mm
130mm
429mm
73°
69°
1105mm
X-Large
21”
620mm
145mm
429mm
73°
69°
1126mm
Mojo Sl-R
Size
Seattube
Toptube
Headtube
Chainstay
Seat Angle
Head Angle
Wheelbase
A
B
C
D
E
F
G
Small
15”
560mm
94mm
429mm
73°
69°
1063.6mm
Medium
17”
580mm
103mm
429mm
73°
69°
1084.5mm
Large
19”
600mm
118mm
429mm
73°
69°
1105mm
X-Large
21”
620mm
134mm
429mm
73°
69°
1126mm
Size
Seattube
Toptube
Headtube
Chainstay
Seat Angle
Head Angle
Wheelbase
A
B
C
D
E
F
G
Small
15”
561mm
94mm
435mm
72°
68°
1085mm
Medium
17”
584mm
103mm
435mm
72°
68°
1106mm
Large
19”
602mm
118mm
435mm
72°
68°
1128mm
X-large
21”
622mm
134mm
435mm
72°
68°
1148mm
• Depending on date of manufacture, the Mojo HD could have either a
Down Swing High Direct Mount front derailleur or a 34.9mm clamp
top pull front derailleur. See note on page 11.
• *Beginning in June of 2011, the Mojo HD and HD 140 use a
142 x 12mm Maxle rear axle.
• 140mm rear wheel travel
• 130 to 150mm fork travel
• 31.6mm seat post
• 142mm x 12mm Maxle through axle
• BB92/Press GXP Bottom Bracket
• Shock Specs: 7.875” (200mm) eye to eye, 2.0” (50mm) travel
• 2.8:1 leverage ratio
• For tapered steerer, use this headset: IS ZS44/28.6 | EC49/40
• High Direct mount front derailleur
• Rear Brake Mount: Post Mount, 160mm
S.H.I.S.=Standardized Headset Identification System
• 140mm rear wheel travel
• 130 to 160mm fork travel compatibility
• 31.6mm seat post
• 135mm hub with a 12mm through axle*
• 68mm bottom bracket
• Shock Specs: 7.875” (200mm) eye to eye, 2.0” (50mm) travel
• 2.8:1 leverage ratio
• For tapered steerer, use this headset: IS ZS44/28.6 | EC49/40
• For 1
1
/8” straight steerer, use this headset: IS ZS44/28.6 | EC49/30
• 140mm rear wheel travel
• 130 to 160mm fork travel compatibility
• 31.6mm seat post
• 34.9mm clamp top pull front derailleur
• 135mm hub with a standard dropout
• 68mm bottom bracket
• Shock Specs: 7.875” (200mm) eye to eye, 2.0” (50mm) travel
• 2.8:1 leverage ratio
• 1
1
/8” Integrated Standard Headset: S.H.I.S. IS41/28.6 | IS41/30
• 160mm rear wheel travel
• 160 to 180mm fork travel
• 31.6mm seat post
• 135mm hub with a 12mm through axle*
• 68mm bottom bracket
• Shock Specs: 8.5” (216mm) eye to eye, 2.5” (63.5mm) travel
• 2.52:1 leverage ratio
• For tapered steerer, use this headset: IS ZS44/28.6 | EC49/40
• For 1
1
/8” straight steerer, use this headset: IS ZS44/28.6 | EC49/30
Mojo Sl
Mojo Hd 140 Mojo Hd 160
*Measurements Taken With 160mm Fork, Geometry Specs with
180mm Fork Available on Ibis website.
*Measurements Taken With 150mm Fork.
Size
Seattube
Toptube
Headtube
Chainstay
Seat Angle
Head Angle
Wheelbase
A
B
C
D
E
F
G
Small
15”
564mm
94mm
435mm
71°
67°
1093mm
Medium
17”
587mm
103mm
435mm
71°
67°
1114mm
Large
19”
604.5mm
118mm
435mm
71°
67°
1134mm
X-large
21”
625mm
134mm
435mm
71°
67°
1155mm
Size
Seattube
Toptube
Headtube
Chainstay
Seat Angle
Head Angle
Wheelbase
A
B
C
D
E
F
G
Small
15”
560mm
100mm
429mm
73°
69°
1063.6mm
Medium
17”
580mm
115mm
429mm
73°
69°
1084.5mm
Large
19”
600mm
130mm
429mm
73°
69°
1105mm
X-Large
21”
620mm
145mm
429mm
73°
69°
1126mm
Mojo Sl-R
Size
Seattube
Toptube
Headtube
Chainstay
Seat Angle
Head Angle
Wheelbase
A
B
C
D
E
F
G
Small
15”
560mm
94mm
429mm
73°
69°
1063.6mm
Medium
17”
580mm
103mm
429mm
73°
69°
1084.5mm
Large
19”
600mm
118mm
429mm
73°
69°
1105mm
X-Large
21”
620mm
134mm
429mm
73°
69°
1126mm
Size
Seattube
Toptube
Headtube
Chainstay
Seat Angle
Head Angle
Wheelbase
A
B
C
D
E
F
G
Small
15”
561mm
94mm
435mm
72°
68°
1085mm
Medium
17”
584mm
103mm
435mm
72°
68°
1106mm
Large
19”
602mm
118mm
435mm
72°
68°
1128mm
X-large
21”
622mm
134mm
435mm
72°
68°
1148mm
• Depending on date of manufacture, the Mojo HD could have either a
Down Swing High Direct Mount front derailleur or a 34.9mm clamp
top pull front derailleur. See note on page 11.
• *Beginning in June of 2011, the Mojo HD and HD 140 use a
142 x 12mm Maxle rear axle.
• 140mm rear wheel travel
• 130 to 150mm fork travel
• 31.6mm seat post
• 142mm x 12mm Maxle through axle
• BB92/Press GXP Bottom Bracket
• Shock Specs: 7.875” (200mm) eye to eye, 2.0” (50mm) travel
• 2.8:1 leverage ratio
• For tapered steerer, use this headset: IS ZS44/28.6 | EC49/40
• High Direct mount front derailleur
• Rear Brake Mount: Post Mount, 160mm
S.H.I.S.=Standardized Headset Identification System
