IBM 1000VA and 1500VA LCD Tower UPS 10
The buttons have the following functions:
Escape (X): Press this button to return to the previous menu without running a command or saving

any changes.
Down (
): Press this button to scroll down to the next menu option.

OK: Press this button to select the current menu or option.

On/off: Press this button to turn on the UPS. Press and hold this button for 3 seconds to turn off the

UPS.
On some panels, the OK button has an additional function if you press and hold the button longer than 1
second:
On the User Setting panels, this function saves the displayed setting.

On the Meter and Notice/Alarm panels, this function locks the panel (that is, it prevents the panel from

returning to its default after timeout). A locked panel displays a small key image near the status icon.
To unlock the panel, press any button to perform its usual function.
Rear panel

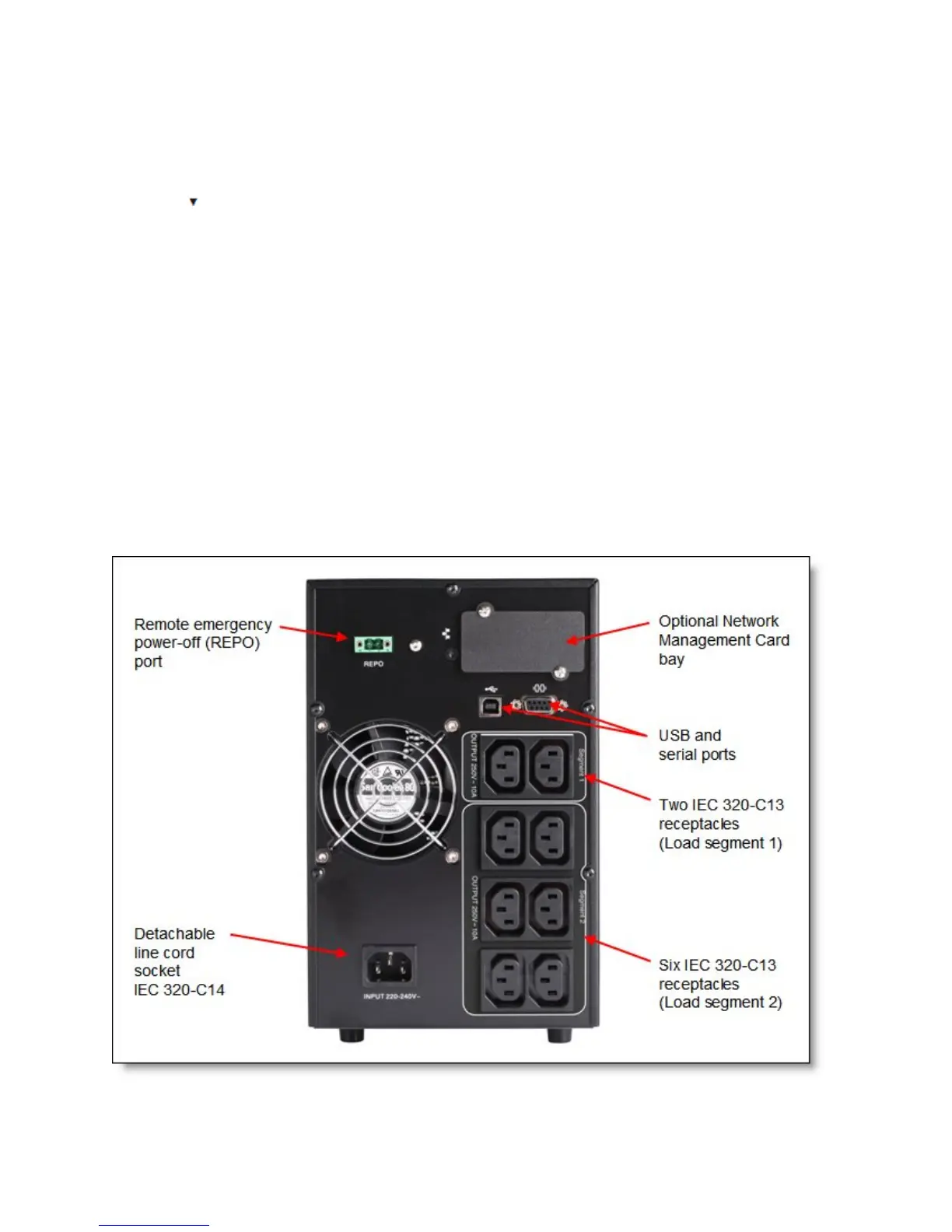

Figure 3 shows the rear panel of the 230 V models of the IBM 1000VA LCD Tower UPS (53961KX) and
IBM 1500VA LCD Tower UPS (53962KX).
Figure 3. Rear panel of the 230 V models of the IBM 1000VA LCD Tower UPS (53961KX) and IBM
1500VA LCD Tower UPS (53961KX)
