2. To locate the DIMM connectors. See “Identifying parts on the system board -
desktop model” on page 35.
3. Open the retaining clips.
4. Make sure the notches in the DIMM align with the tabs on the connector. Push
or insert the DIMM straight down into the connector until the retaining clips
close.
Notches
What to do next:
v To work with another option, go to the appropriate section.
v To complete the installation, go to “Replacing the cover and connecting the
cables - desktop model” on page 43.
Installing adapters - desktop model
This section provides information and instructions for installing and removing
adapters. Your computer has three expansion slots for peripheral component
interconnect (PCI) adapters. You can install an adapter up to 330 mm (13 inches)
long.
To install an adapter:

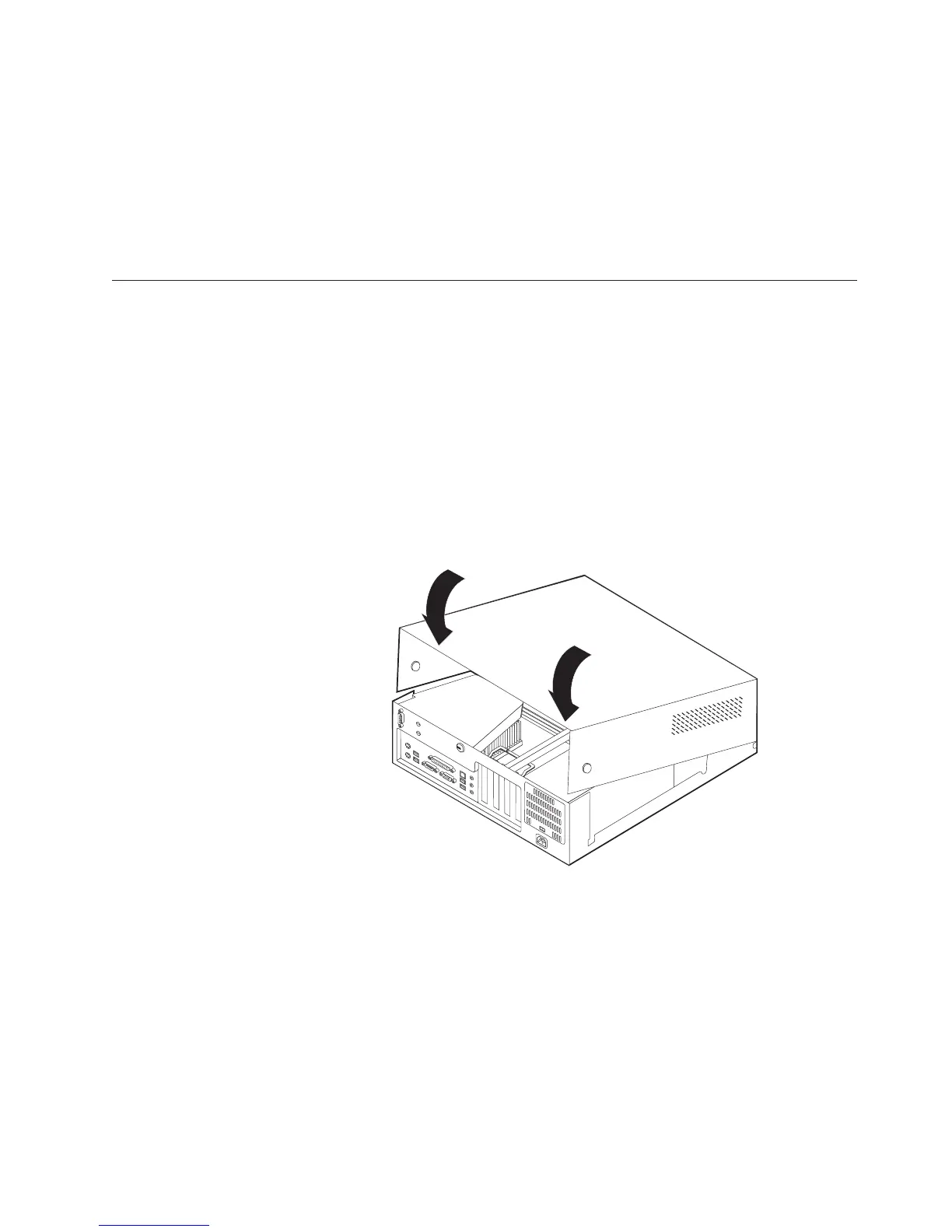

1. Remove the cover. See “Removing the cover - desktop model” on page 34.
Chapter 4. Installing Options 37
