Attaching the Printer Delivery Slot Adapter
The printer delivery slot adapter helps position paper correctly from the printer to the
2000-sheet finisher.
1. Remove face-up tray from printer.
2. Insert the delivery slot adapter into the printer face-up delivery slot. (See Figure 5
on page 9 for parts locations.) This adapter goes into the slot where the face-up
tray was attached.

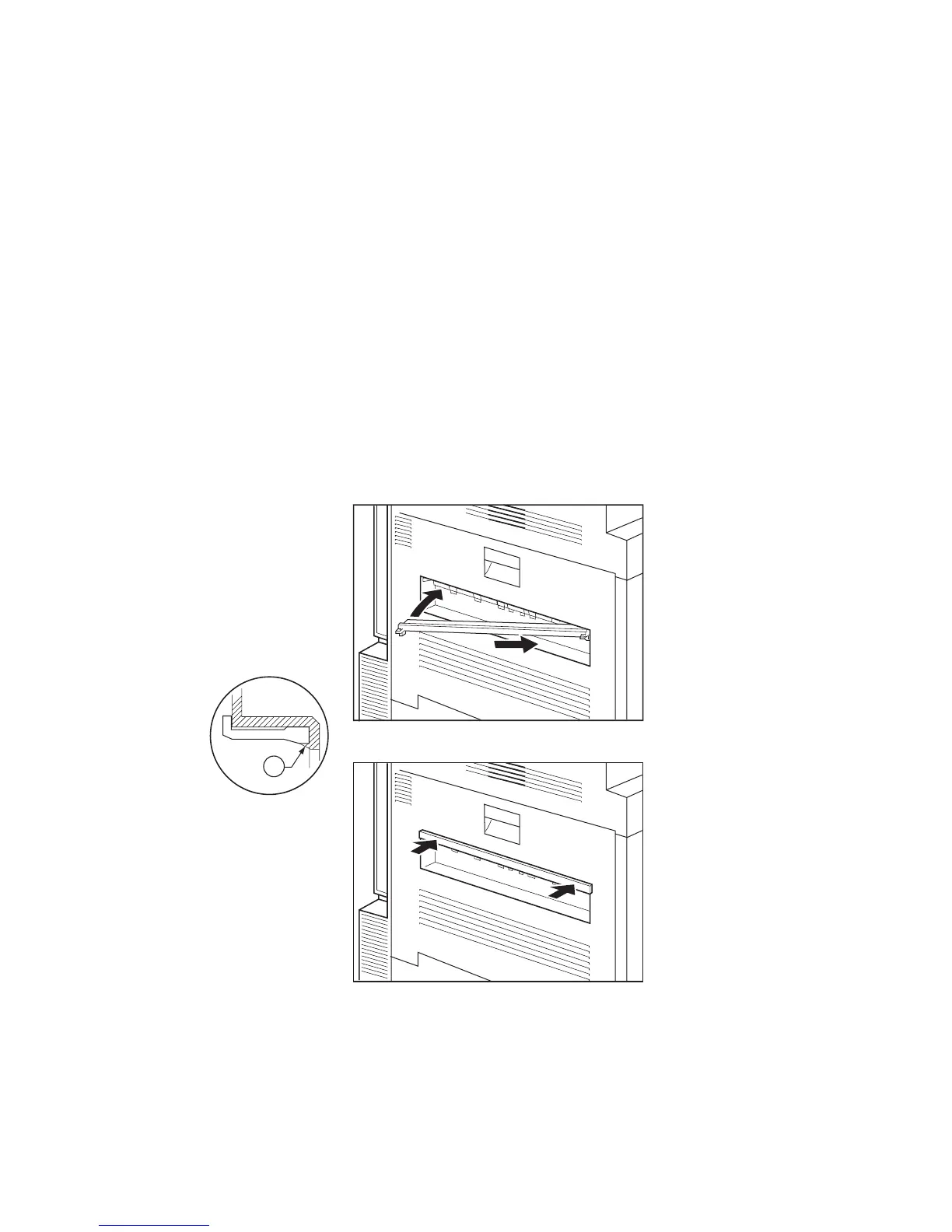

3. Make sure the adapter is seated over the lip (1) on the printer's eject slot as shown
below:
c9pu159
1
Attaching the Guide Rail
The guide rail attaches the 2000-sheet finisher to the printer. This guide rail must be
installed because the guide rail helps the 2000-sheet finisher to stay in place while
stacking paper. If the guide rail is not installed, the 2000-sheet finisher may shift from
vibration while stacking paper. This can cause paper jams and paper skewing.
