IBM 3270 Operation Guide

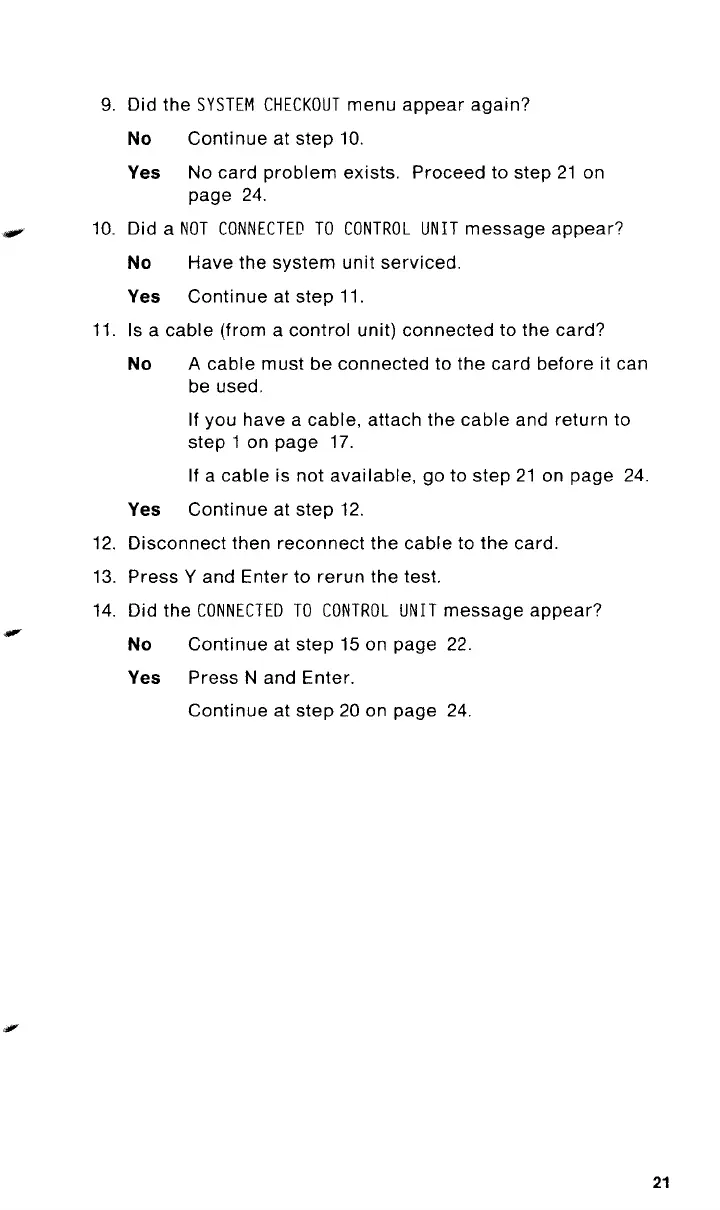

9. Did the SYSTEM CHECKOUT menu appear again?
No
Continue at step 10.
Yes
No card problem exists. Proceed to step 21 on
page 24.
-"
10. Did a NOT CONNECTEQ TO CONTROL UNIT message appear?
No
Have the
system unit serviced.
Yes Continue at step 11.
11. Is a cable (from a control unit) connected to the card?
No
A
cable must be connected to the card before it can
be used.
If you have a cable, attach
the cable and return to
step 1 on page 17.
If a cable is not available, go to step 21 on page
24.
Yes
Continue at step 12.
12.
Disconnect then reconnect the cable to the card.
13.
Press Y and Enter to rerun the test.
14.
Did the CONNECTED TO CONTROL UNIT message appear?
-
No
Continue at step 15 on page 22.
Yes
Press N and Enter.
Continue at step 20 on page
24.
21
