IBM 3852-2 User Manual

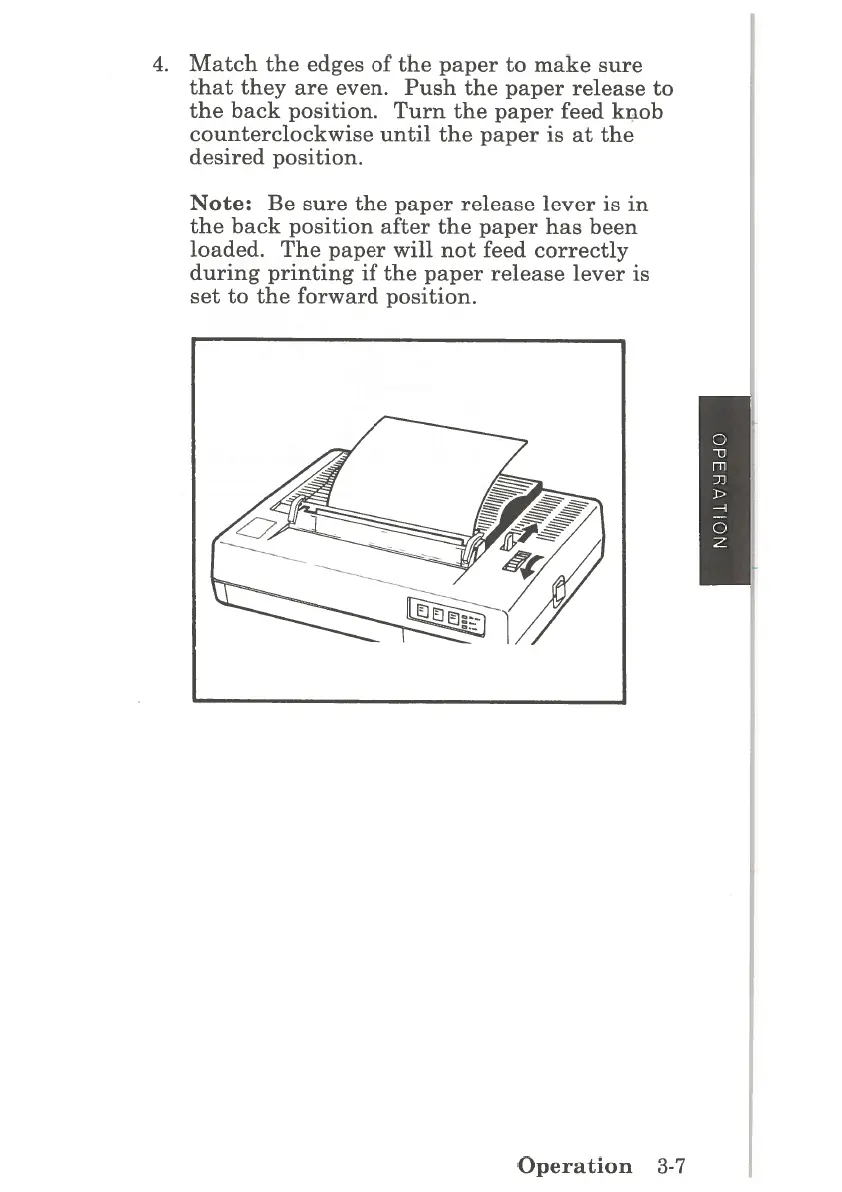

4.
Match
the edges of
the paper to make
sure
that they are even.
Push the
paper release
to
the
back position.
Turn the paper feed
knob
counterclockwise
until the
paper is
at
the
desired position.
Note: Be sure
the paper release
lever is in
the back position
after the paper
has been
loaded. The
paper
will not feed correctly
during printing
if the paper release
lever is
set to the forward
position.
Figure B-i (Part 2 of 3).
Printer
Specifications
Character Set Two character sets are available. The
standard
Personal
Computer graphics
character set number 2 and the IBM 3270
Display character set
number
1
Maximum Normal
80
characters per line
Characters per Line
Maximum Double Wide 40 characters per line
Characters per Line
Maximum Condensed 132
characters
per line
Characters
per Line
Maximum Double Wide 66 characters per line
Condensed
Characters
per
Line
Dual Color Image
Printing Vertical 8 dot information; 100 H x 96 V or
Data
100Hx72V
Dual Color
Image Printing 800 horizontal dots per line maximum
Resolution
Multicolor Image Printing
Horizontal
8 dot
information;
100 H x 96 V or
Data 100Hx72V
Multicolor Image Printing 800 horizontal dots per line maximum
Resolution
Printing Pitch Vertical 4.23 mm (1/6”) and
3.22
mm (Approx. 1/8”)
Printing
Pitch Horizontal 2.54 mm (1/10”)
Normal
Printing Pitch
Horizontal
1.54 mm (Approx. 6/100”)
Condensed
Print
Buffer Character
1
line
(40
to
132
characters)
Printing
Print Buffer Image
800
byte (Dual color)
Printing
Interface 8-bit Personal Computer parallel interface
Roll Paper Width 216 mm (8-1/2”)
Maximum diameter 70 mm (2-3/4”)
Thickness 0.093 mm
±
0.005 mm
Single Sheet Paper Width 216
mm
(8-1/2”)
Length 279 mm (11”)
Thickness 0.093 mm
±
0.005 mm
Continuous Form Pin Feed Width 241 mm (9-1/2”)
(including perforations)
Length
279 mm (11”)
Thickness
0.093 mm
±
0-05
mm
Transparencies
Letter
size single
sheet
Type Ink Cartridge Dual cartridge ink supply--tricolor
ink cartridge and black ink
cartridge
Ink Amount per Cartridge Three
to three and
a
half million characters
for color; about three million for black
B-2
Operation
3-7

IBM 3852-2 Specifications

General
