__ 11. Retrieve the white USB-C cable (P
/N 02EC951) from the KMM storage box; 2 cables are provided
(1 spare).

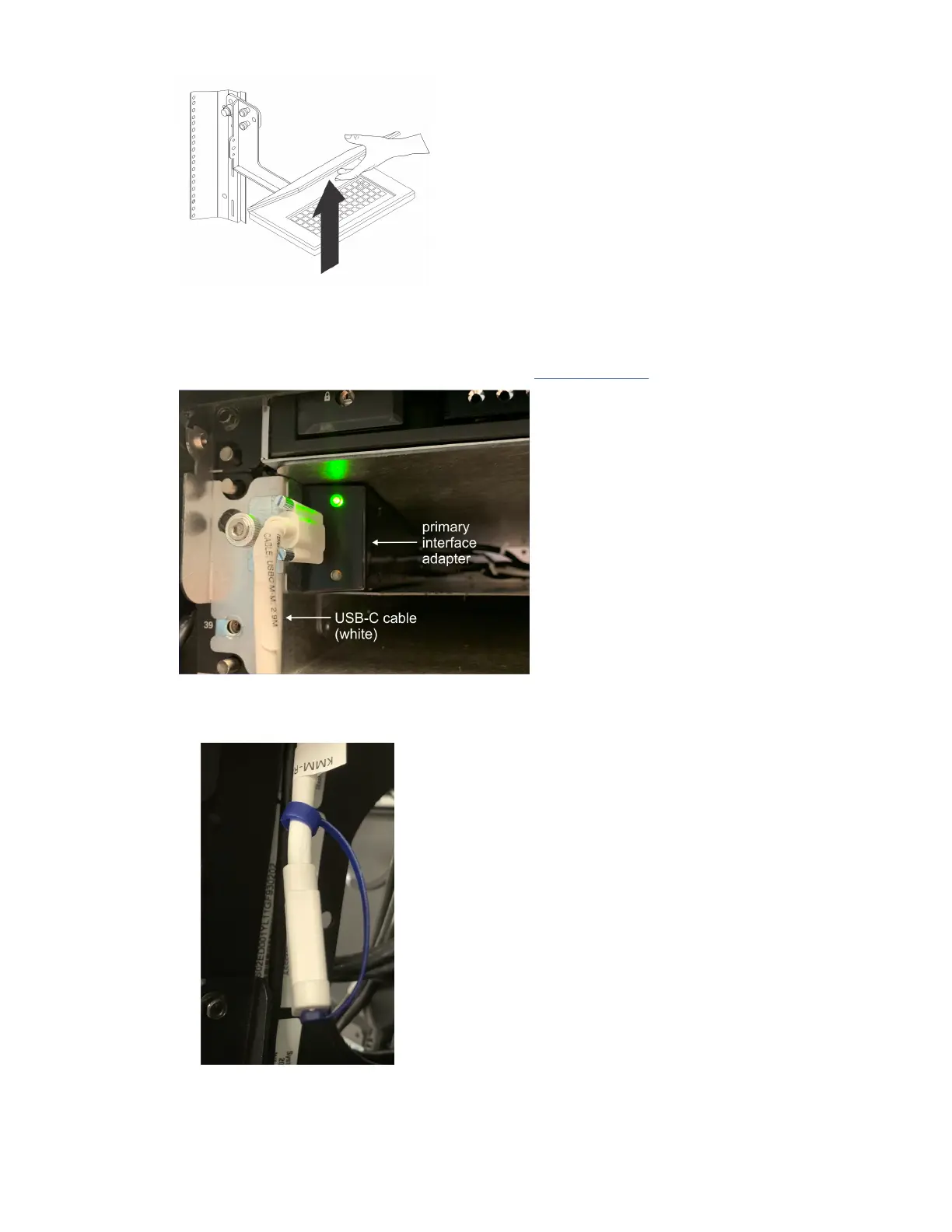

__ 12. If fastening the KMM to the front of the frame, plug the white USB-C cable into the primary
interface adapter as shown below. Then go to Step “14” on page 33
.
__ 13. If fastening the KMM to the r
ear of the frame:
a. Remove the blue protective cap from the USB-C connector.
b. Plug the white USB-C cable into the connector.
ENG-32 IBM: 3931 Safety Inspection
