STU
666

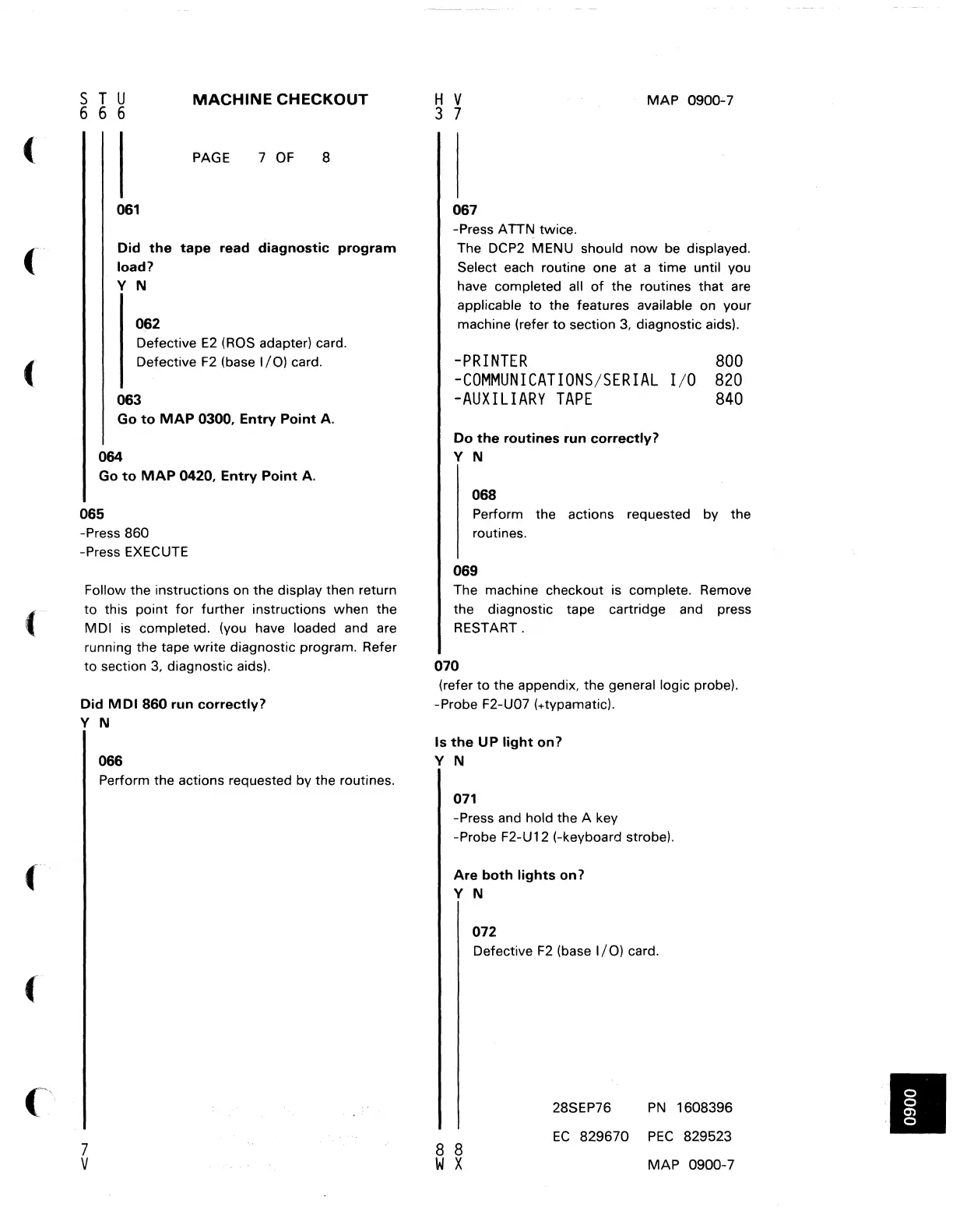

MACHINE
CHECKOUT
PAGE 7
OF
8
061
Did
the
tape
read
diagnostic
program
load?
V N
062
Defective
E2
(ROS adapter) card.
Defective
F2
(base
I/O)
card.
063
Go
to
MAP
0300.
Entry
Point
A.
064
Go
to
MAP
0420.
Entry
Point
A.
065
-Press 860
-Press EXECUTE
Follow the instructions on the display then return
to
this point
for
further instructions when the
MDI is completed. (you have loaded and are
running the tape write diagnostic program. Refer
to
section
3,
diagnostic aids).
Did
MOl
860 run
correctly?
V N
7
V
066
Perform the actions requested by the routines.
H V
3 7
067
-Press
AnN
twice.
MAP
0900'-7
The DCP2 MENU should
now
be displayed.
Select each routine one at a time until you
have completed all
of
the routines that are
applicable to the features available on your
machine (refer
to
section
3,
diagnostic aids).
-PRINTER
800
-COMMUNICATIONS/SERIAL
I/O
820
-AUXILIARY
TAPE
840
Do
the
routines
run
correctly?
V N
068
Perform the actions requested by the
routines.
069
The machine checkout is complete. Remove
the diagnostic tape cartridge and press
RESTART.
070
(refer
to
the appendix, the general logic probe).
-Probe F2-U07 (+typamatic).
Is
the
UP
light
on?
V N
071
-Press and hold the A key
-Probe F2-U 12 (-keyboard strobe).
Are
both
lights
on?
V N
8 8
W X
072
Defective
F2
(base
I/O)
card.
28SEP76
PN
1608396
EC
829670
PEC
829523
MAP
0900-7
To Next Page
