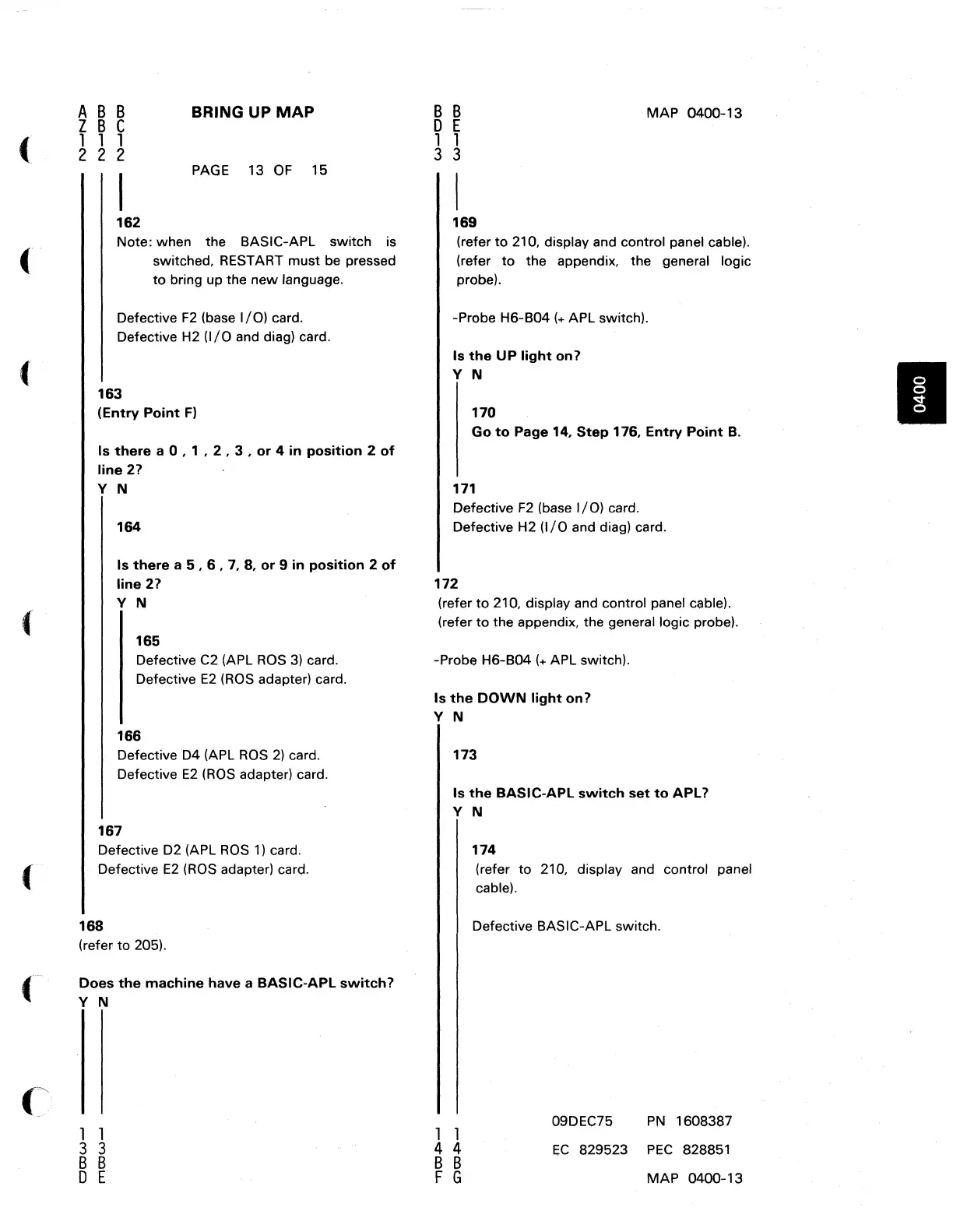

BRING UP
MAP
PAGE 13
OF
15
162
Note: when the BASIC-APL switch is
switched. RESTART must be pressed
to
bring up the
new
language.
Defective
F2
(base
I/O)
card.
Defective H2
(I/O
and diag) card.
163
(Entry
Point
F)
Is
there
a 0 , 1 , 2 • 3 ,
or
4
in
position
2
of
line
2?
Y N
164
Is
there
a
5,6,
7, 8,
or
9
in
position
2
of
line
2?
Y N
165
Defective C2 (APL
ROS
3)
card.
Defective
E2
(ROS adapter) card.
166
Defective
04
(APL
ROS
2)
card.
Defective
E2
(ROS
adapter) card.
167
Defective
02
(APL
ROS
1)
card.
Defective
E2
(ROS adapter) card.
168
(refer to 205).
Does
the
machine
have
a
BASIC-APL
switch?
Y N
1 1
3 3
B B
o E
B B
o E
1 1
3 3
169
MAP
0400-13
(refer
to
210, display and control panel cable).
(refer
to
the appendix. the
geJ'leral
logic
probe).
-Probe H6-B04
(+
APL switch).
Is
the
UP
light
on7
Y N
170
Go
to
Page 14,
Step
176,
Entry
Point
8.
171
Defective
F2
(base
I/O)
card.
Defective H2
(I/O
and diag) card.
172
(refer
to
210, display and control panel cable).
(refer
to
the appendix, the general logic probe).
-Probe H6-B04
(+
APL switch).
Is
the
DOWN
light
on?
Y N
173
Is
the
BASIC-APL
switch
set
to
APL?
Y N
1 1
4 4
B B
F G
174
(refer to 210, display and control panel
cable).
Defective BASIC-APL switch.
09DEC75
PN
1608387
~C
829523
PEC
828851
MAP
0400-13
To Next Page
