5. Create a rack-mounting bolt assembly by adding the following items, in the order listed, to each rack-
mounting bolt.
a. Thick washer (12.7 mm)
b. Thick washer (6.4 mm)
c. Spacer
6. Insert a rack-mounting bolt assembly through each of the leveling feet.
7. Reposition the rack-mounting plates under the four rack-mounting bolts so that the mounting bolts
are centered directly over the threaded bolt holes.
8. Turn the rack-mounting bolts four complete turns into the mounting plate's threaded bolt holes.

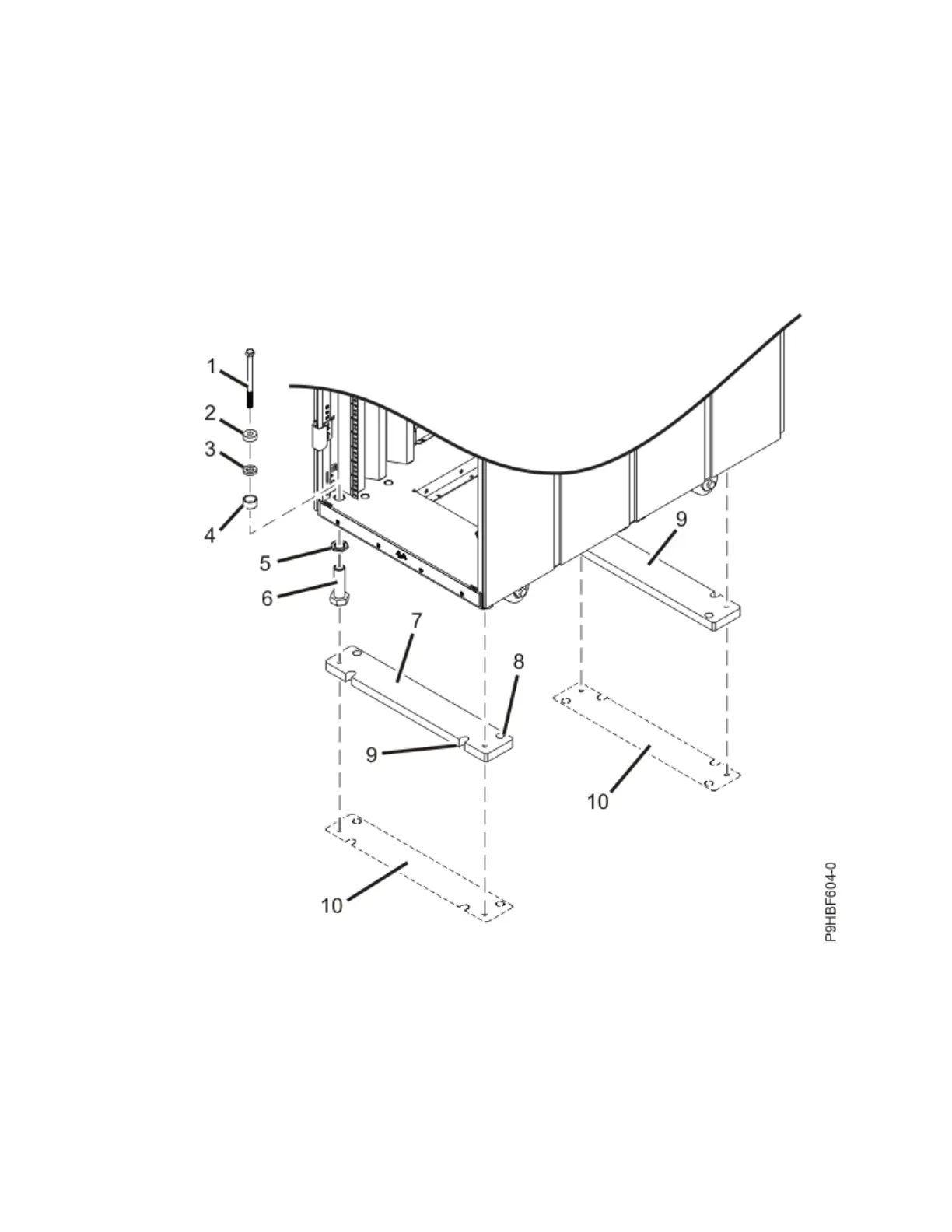

Figure 70. Securing the rack to the concrete floor
1
Rack-mounting bolt
2
Thick washer (12.7 mm)
3
Thick washer (6.4 mm)
102
Power Systems: Racks and rack features
