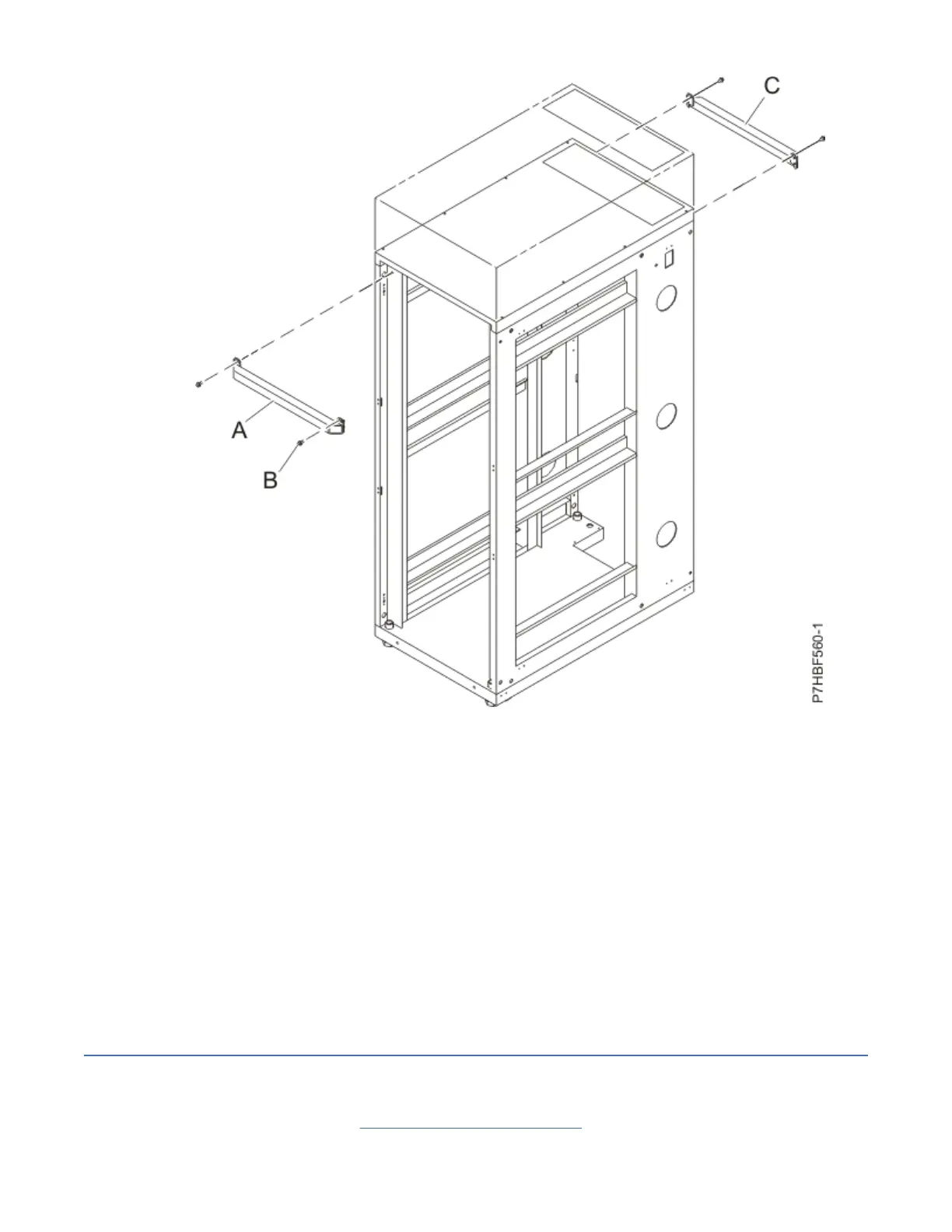

Item Description
A Front rack brace
B Retaining screws (quantity 2 for each brace)
C Rear rack brace
Figure 68. Replacing the top cover
4. Install the four screws (B) you removed from the rack braces into the four remaining locations for the
top cover to base frame attachment.
5. Torque the screws to 28 – 31 N-m (248 - 274 in lb, 21 - 23 ft lb).
6. Install rack ller panels to cover open areas at the front of the rack. Seal all gaps in the front of the
rack, including the gaps between pieces of equipment. This step ensures that proper airflow within the
rack is maintained.
Installing the IBM Enterprise Slim Rack (7965-S42) rack and features
Use this information to install the 7965-S42 rack and to install the related components of the racks
system.
Before installing a rack, read the “Rack safety notices” on page 1.
Racks and rack features
97
