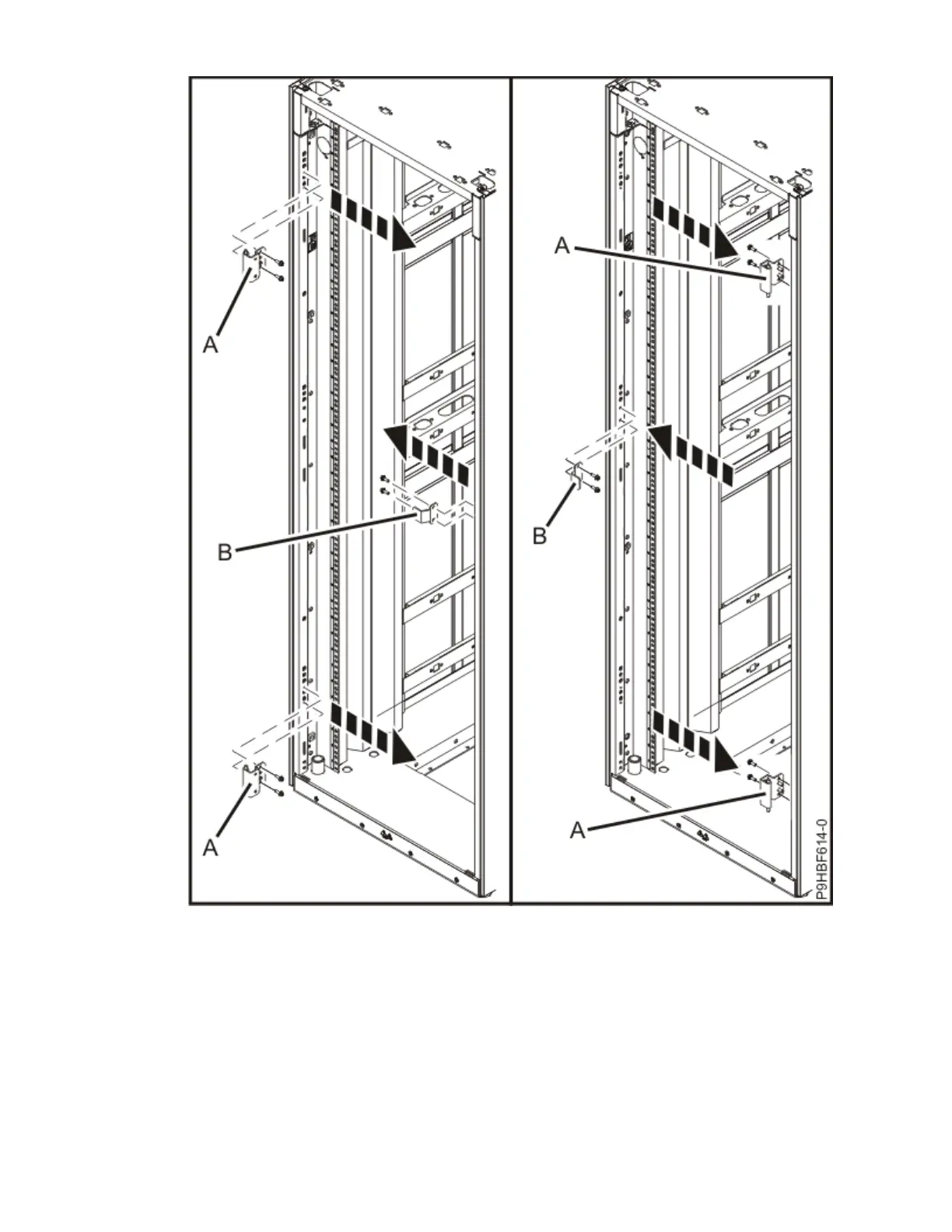

Figure 83. Moving the rack hinges
4. On the rack door, remove the two screws (A) that keep the door hinge bracket in place. Move the door
hinge bracket (B) down on both the top and bottom of the door.
5. Install the door hinge bracket by tightening the screws (A).
120
Power Systems: Racks and rack features
