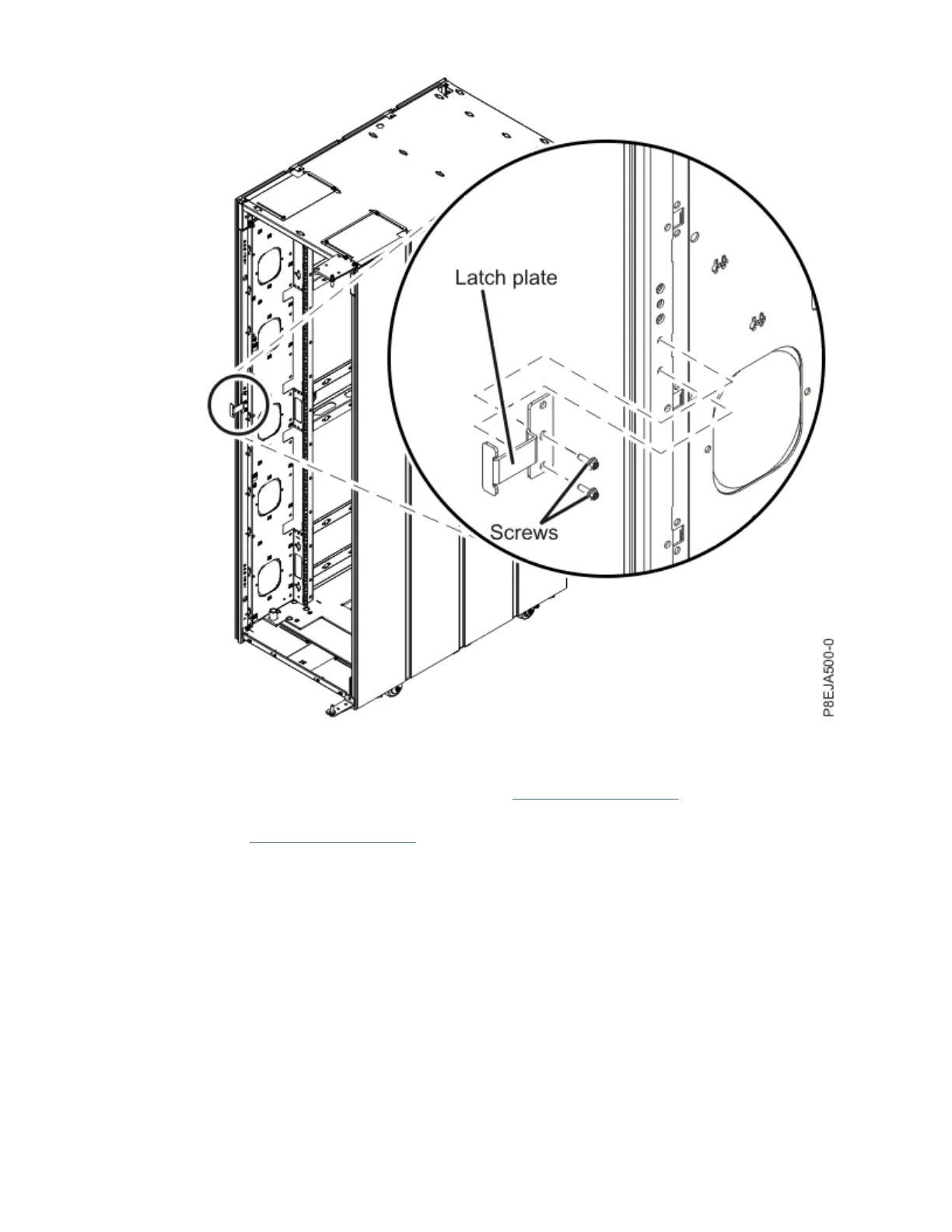

Figure 104. Installing the latch plate
8. Install the bottom hinge bracket on the rack:
a. Add three M6 nut clips to the rack, as shown in Figure 105 on page 148.
b. Install the lower hinge bracket by tightening the top and bottom M6x20 screws (PN 01KL839), as
shown in Figure 105 on page 148. Use a torque screwdriver to tighten the screws to 2.5 Nm ± 0.2
Nm (22.1 inch lbs ± 1.8 inch lbs).
Racks and rack features
147
