IBM 7014-T00 User Manual

9
Mounting plate
10
Threaded hole (Used to secure the rack to the mounting plate.)
11
Anchor bolt hole
12
Traced pattern (Pattern to be traced onto the floor using the mounting plate as a template)

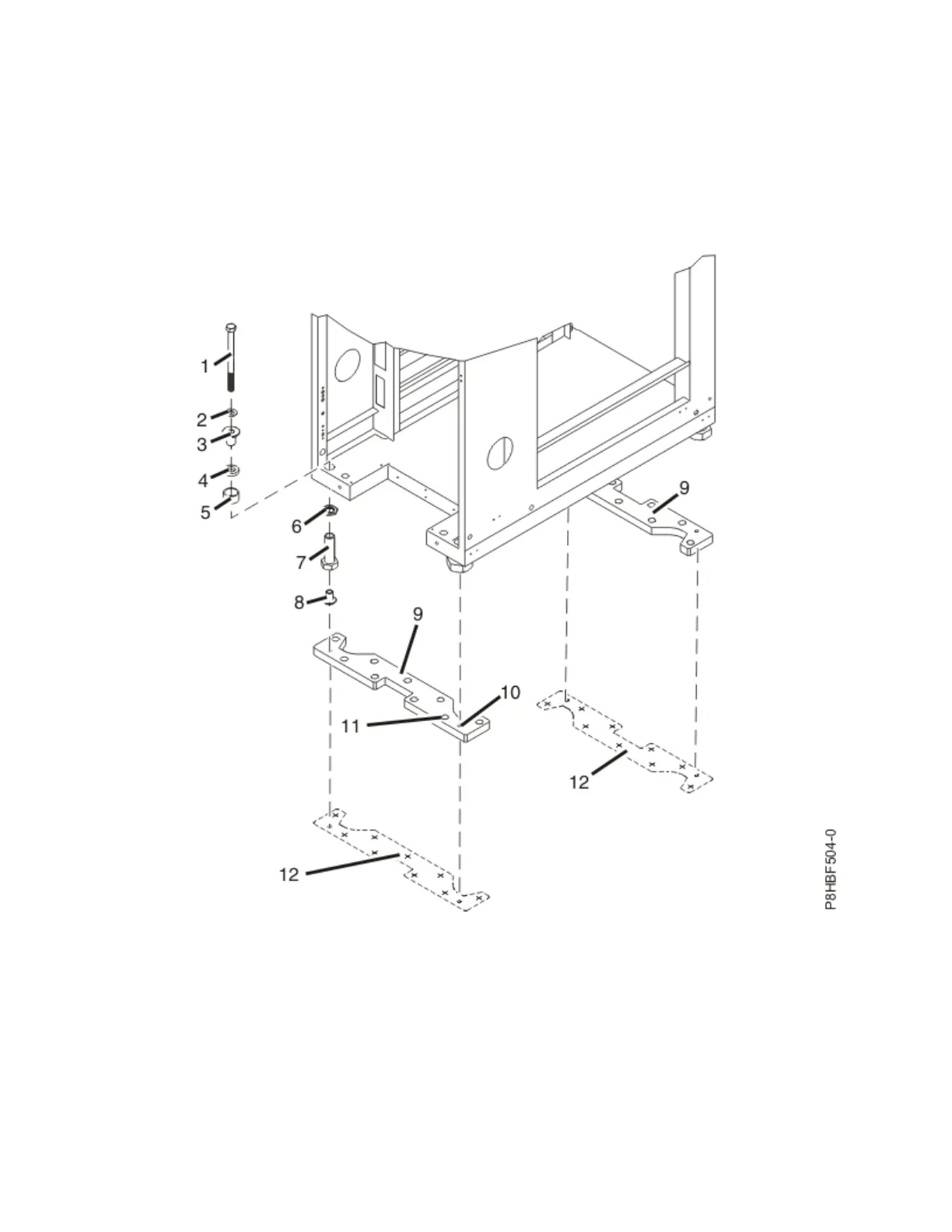

Figure 7. Securing the rack with the X brace to the floor
1
Rack-mounting bolt
2
Thin washer
3
Top plastic isolator bushing
4
Thick washer
10
Power Systems: Racks and rack features
