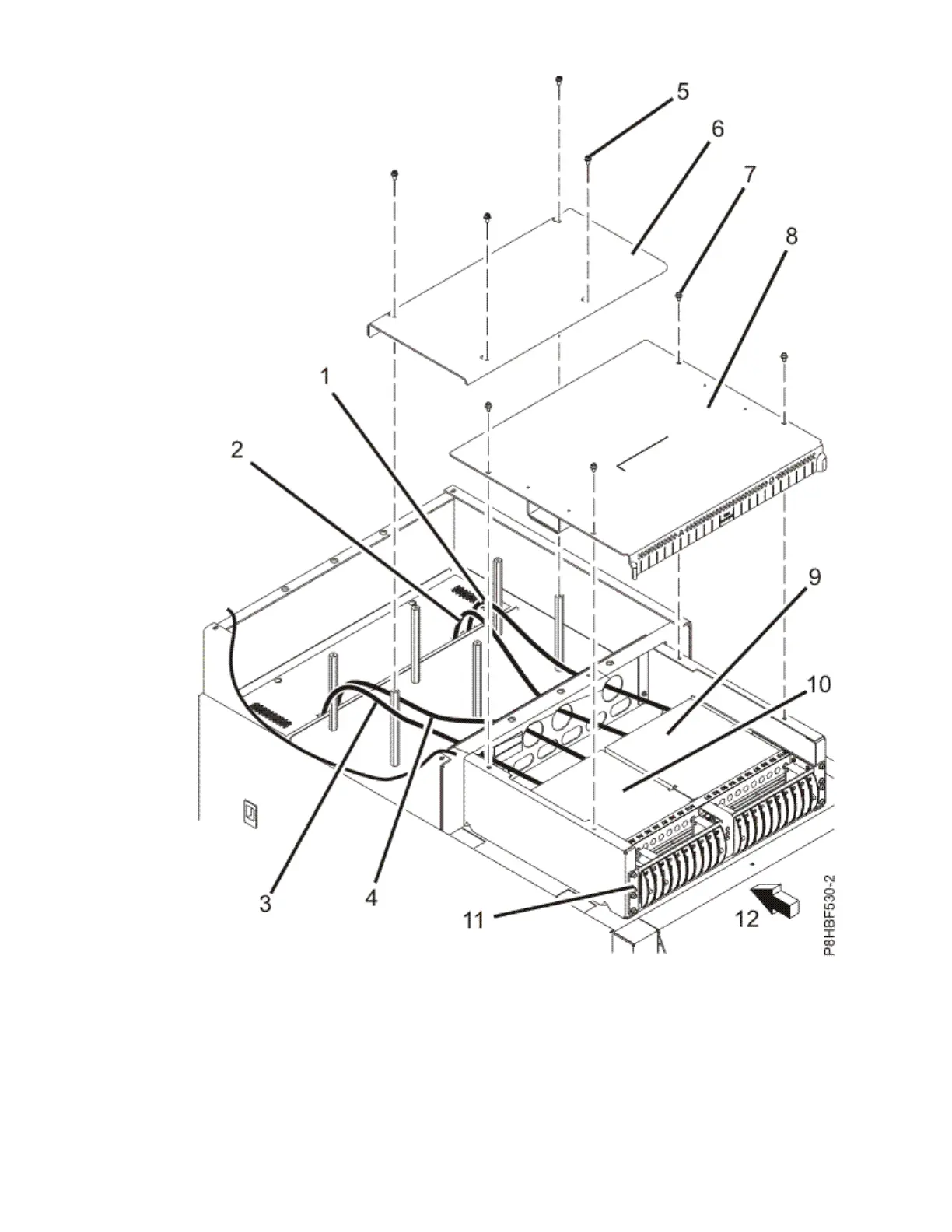

Figure 20. Power distribution panel
1
B side -48V DC return cable.
2
B side -48V DC input cable.
3
A side -48V DC return cable.
Racks and rack features
27
