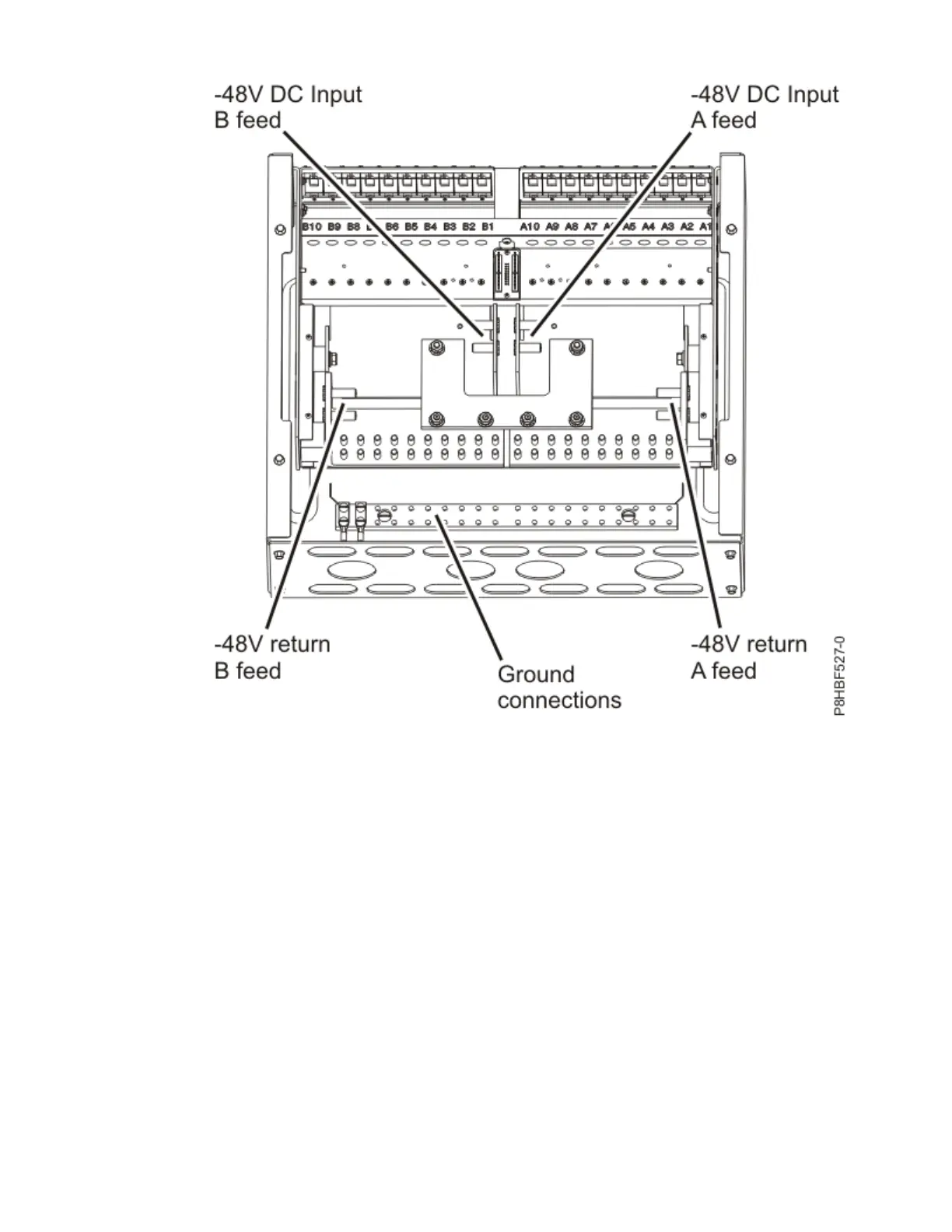

Figure 23. PDP cable connections
d. Connect the A feed of the -48V DC power to the A side input power connection (on the right side
when viewed from the rear).
e. Connect the A feed of the -48V DC return to the A side return connection (right side when viewed
from the rear).
f. Connect the B feed of the -48V DC power to the B side input power connection (left side when
viewed from the rear).
g. Connect the B feed of the -48V DC return to the B side return connection (left side when viewed
from the rear).
Racks and rack features
31
