6) Insert the DVD interposer card (C) by lining up the notches (F) with the side openings of the
card and carefully press the card back and down until the tab (E) clicks in place.
5. Replace the control panel with power off. For instructions, see “Replacing the 8203-E4A, 8204-E8A,
8261-E4S, 9407-M15, 9408-M25, or 9409-M50 control panel with the power off” on page 5.

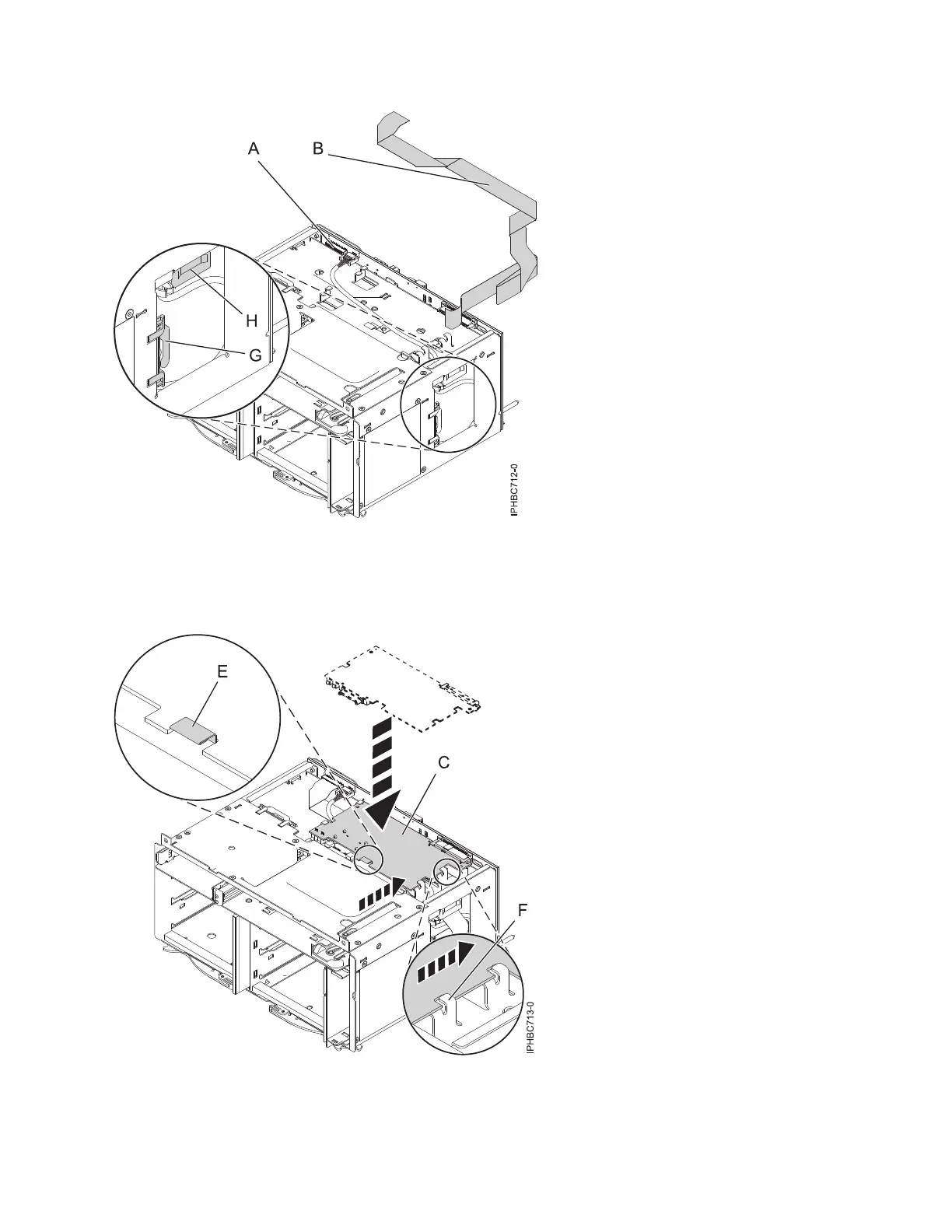

Figure 14. Installation of a signal cable in a stand-alone system
Figure 15. Installation of the DVD interposer card in the stand-alone system
Chapter 1. 8203-E4A, 8204-E8A, 8261-E4S, 9407-M15, 9408-M25, or 9409-M50 control panel 15
