4. Remove the front cover from your system. See “Removing the front cover from the 8234-EMA,
9117-MMA, or 9406-MMA” on page 40.
5. Remove the control panel by pressing the locking tabs (A) located on either side of the panel,
grasping the edges of the panel, and pulling it out of its bay as shown in the following figure.
6. If you are removing the control panel as part of another Procedure, return to that Procedure now.
Attention: If you are not immediately installing or replacing the control panel, a control panel filler
must be in place when the system power is on for proper air flow and cooling. For instructions about
installing a control panel filler, see “Removing and installing the 8234-EMA, 9117-MMA, or
9406-MMA control panel filler” on page 23.
7. Install or replace the control panel with power off. See “Installing or replacing the 8234-EMA,
9117-MMA, or 9406-MMA control panel with power off” on page 22.

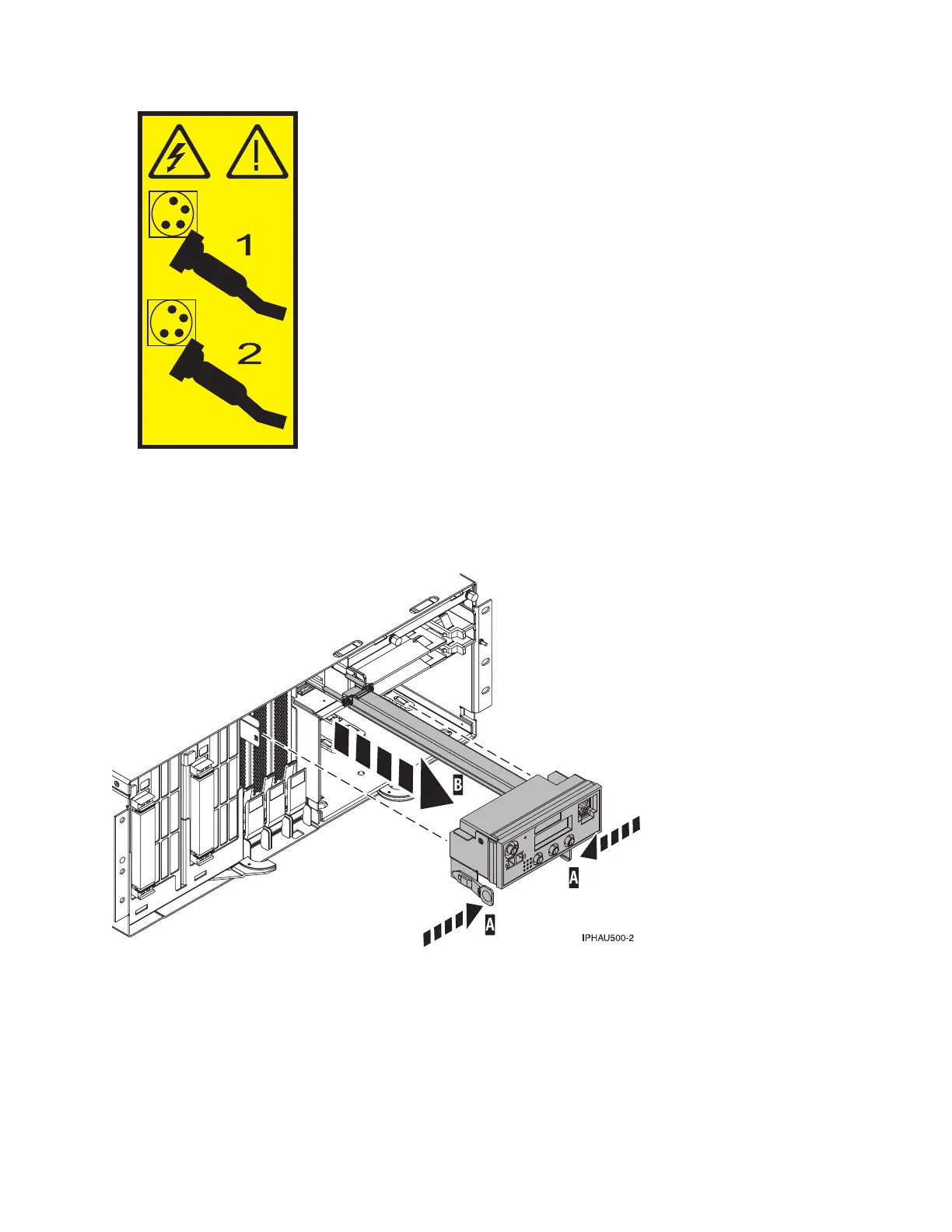

Figure 18. Removing a control panel
Chapter 2. 8234-EMA, 9117-MMA, or 9406-MMA control panel 21
