Rear view

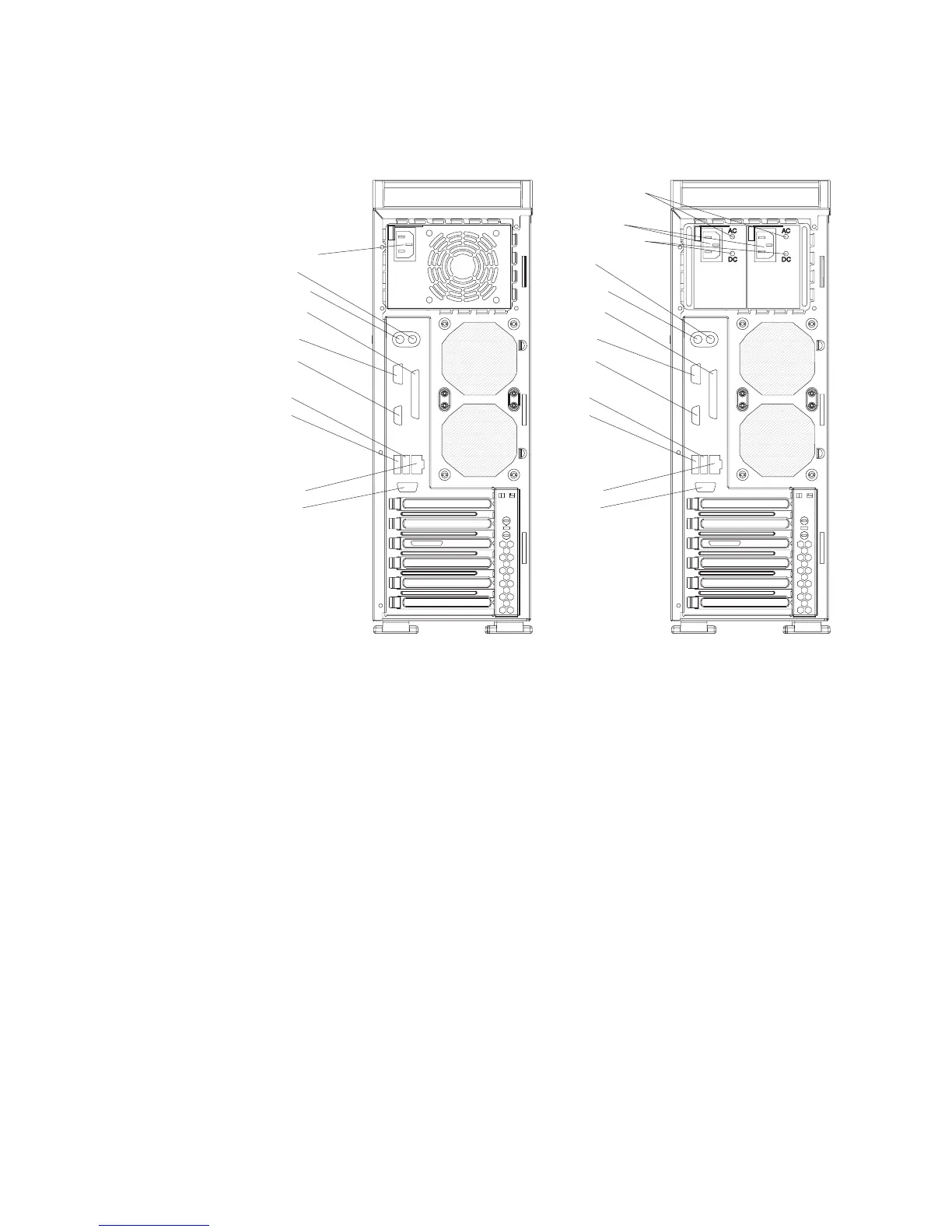

The following illustration shows the connectors on the rear of the server.
Non-redundant power supply Redundant power supplies
Power cord
Mouse
Keyboard
Parallel
Serial 1
Video
USB 1
USB 2
Ethernet
Serial 2
Power cords
Mouse
Keyboard
Parallel
Serial 1
Video
USB 1
USB 2
Ethernet
Serial 2
AC power LEDs
DC power LEDs
Power-cord connector
Connect the power cord to this connector.
AC LED
On the SCSI hot-swap server models that have redundant power supplies,
when this light is lit the power supply has AC voltage applied.
DC LED
On the SCSI hot-swap server models that have redundant power supplies,
when this light is lit the power supply is turned on and operating.
Mouse connector
Connect a mouse or other PS/2
®
device to this connector.
Keyboard connector
Connect a PS/2 keyboard to this connector.
Parallel connector
Connect a parallel device to this connector.
Video connector
Connect a monitor to this connector.
Serial 1 connector
Connect a 9-pin serial device to this connector.
USB 2 connector
Connect a USB device to this connector.
10 xSeries 226 Type 8648: User’s Guide
|
|
|
|
