IBM 9009-22A Site And Hardware Planning

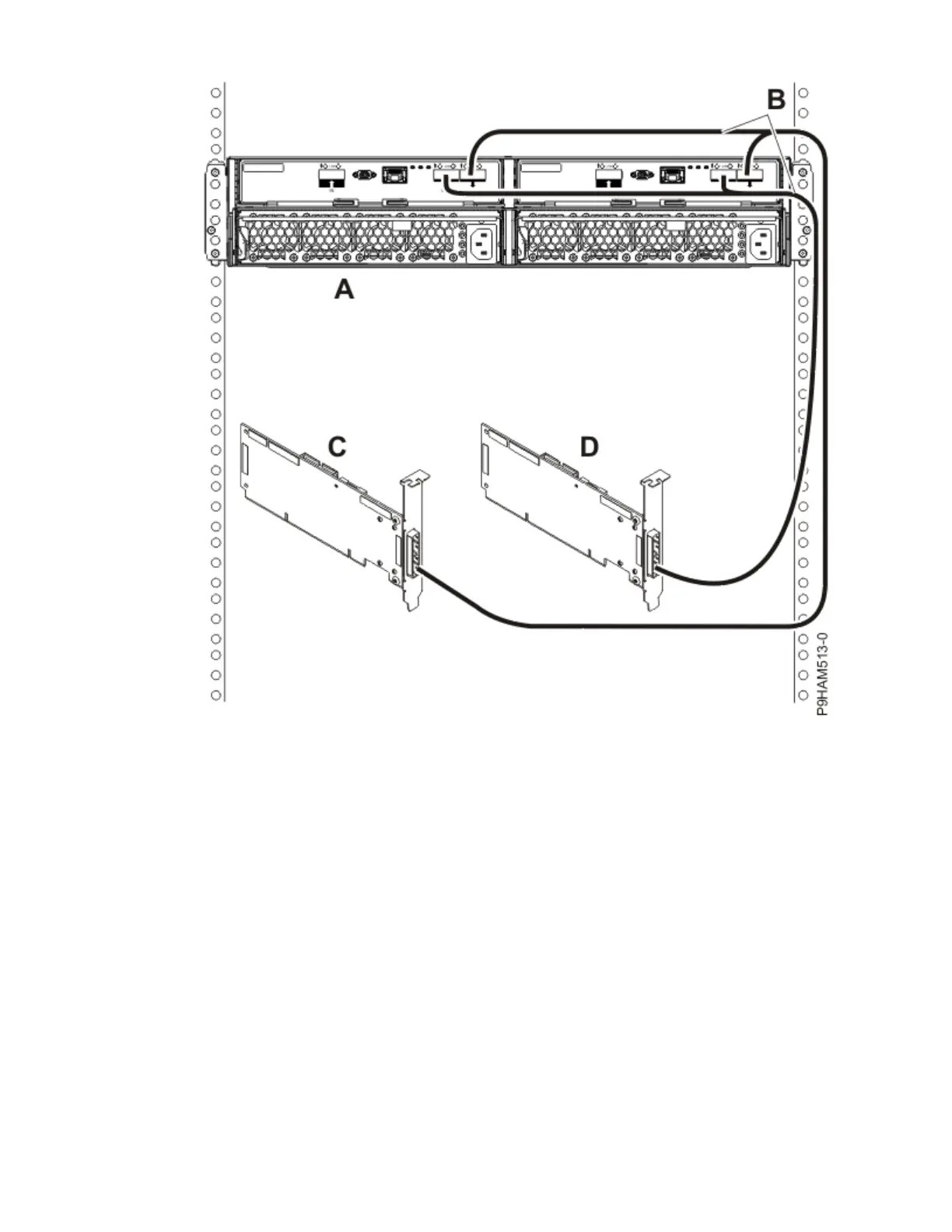

Figure 51. Mode 2 connection of one 5887 enclosure by using YO cables to two independent SAS
adapters
6. Two SAS adapter pairs to one 5887 enclosure by using a mode 2 connection.
• 5887 enclosure with two sets of 12 hard disk drives (HDDs).
• Connection using dual SAS X cables to connect to the 5887 enclosure.
• Each pair of SAS adapters controls half of the 5887 enclosure.
