IBM 9009-22A Site And Hardware Planning

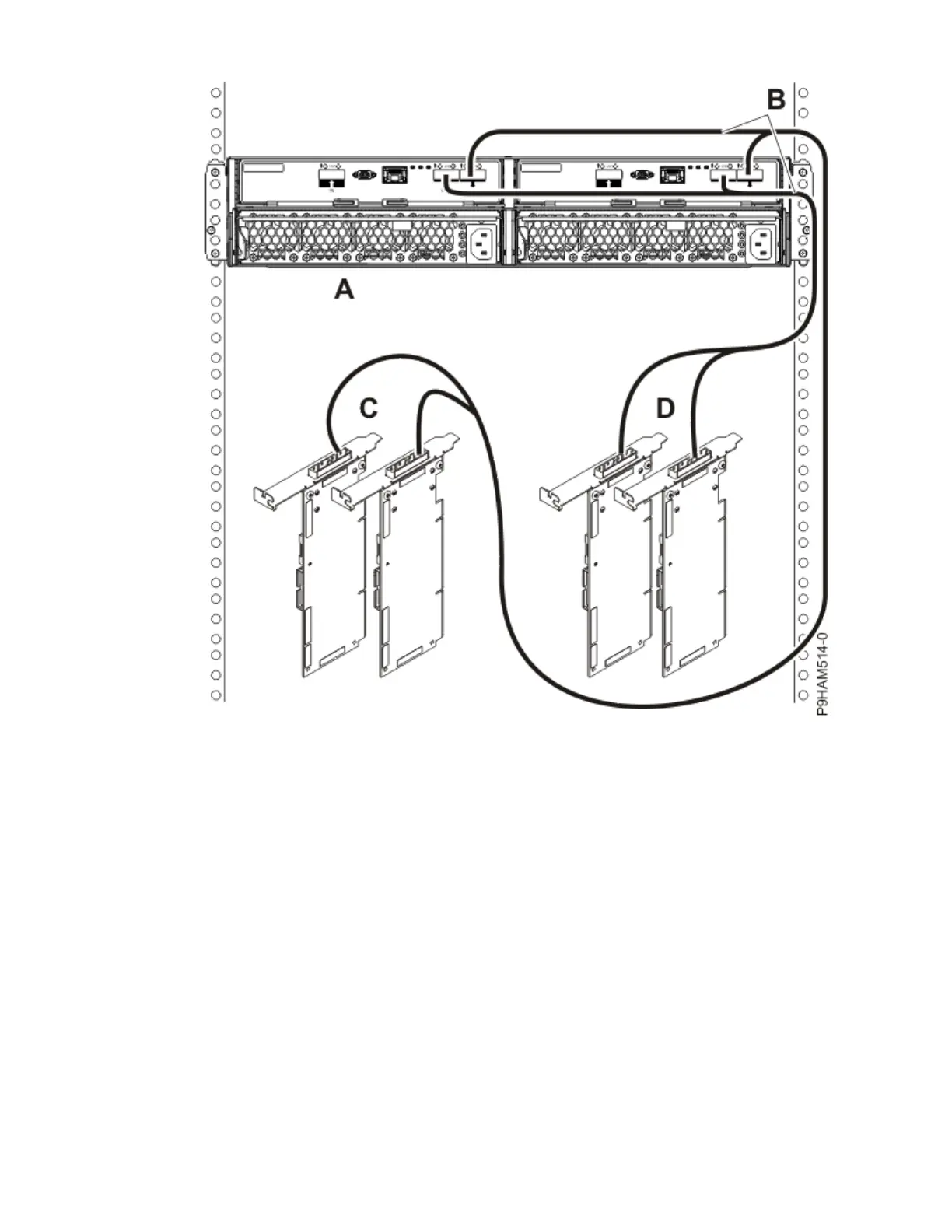

Figure 52. Mode 2 connection of a 5887 enclosure by using X cables to two SAS adapter pairs
7. Four independent SAS adapters to one 5887 enclosure by using a mode 4 connection.
• 5887 enclosure with four sets of six hard disk drives (HDDs).
• Connection using dual SAS X cables to connect to the 5887 enclosure.
130
Power Systems: Site and hardware planning
