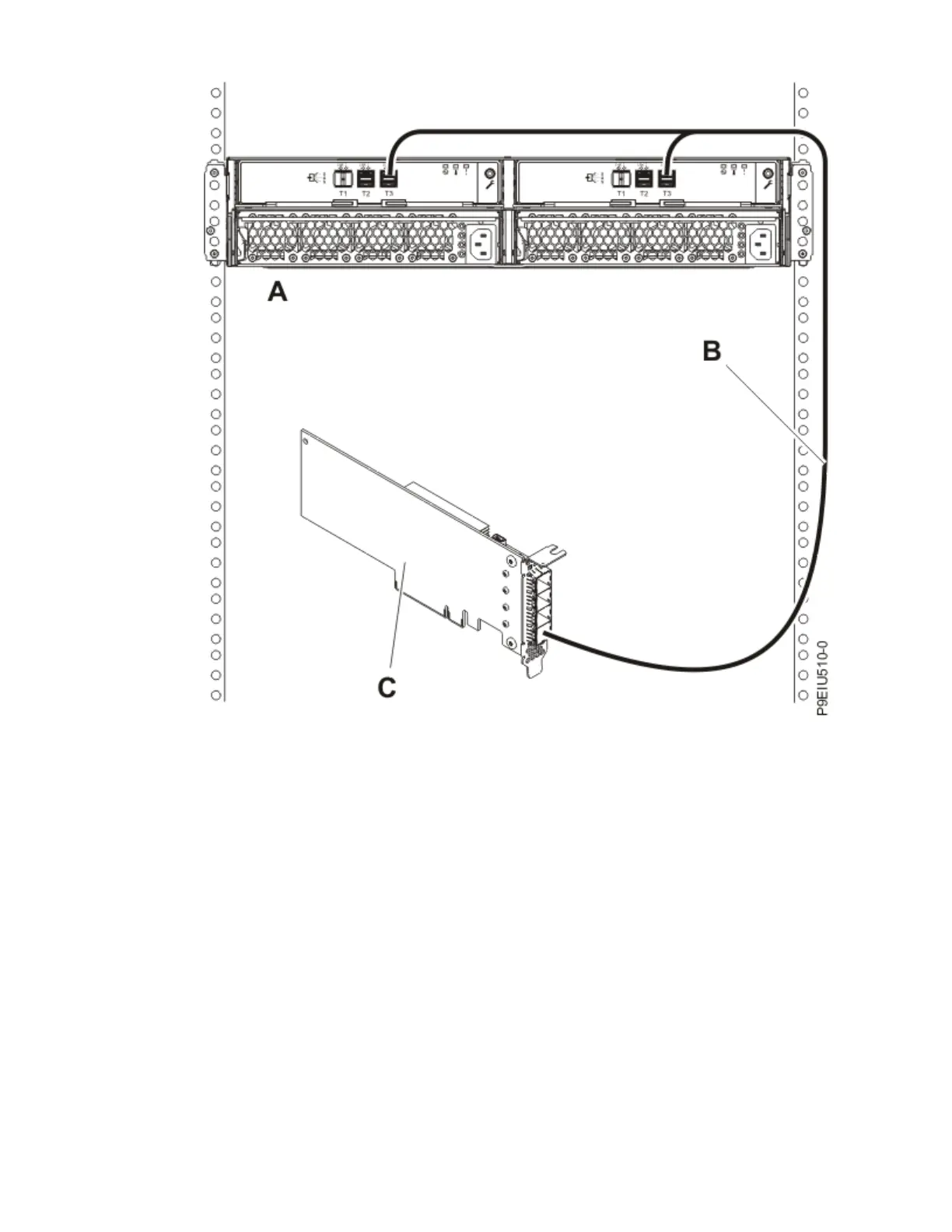

Figure 54. Mode 1 connection of one ESLL or ESLS storage enclosure by using a YO12 cable to a single
SAS adapter
2. Single SAS adapter to two ESLL or ESLS storage enclosures by using a mode 1 connection.
• Connection by using SAS YO12 cables to connect to the ESLL or ESLS storage enclosure.
132
Power Systems: Site and hardware planning
