IBM 9009-22A Site And Hardware Planning

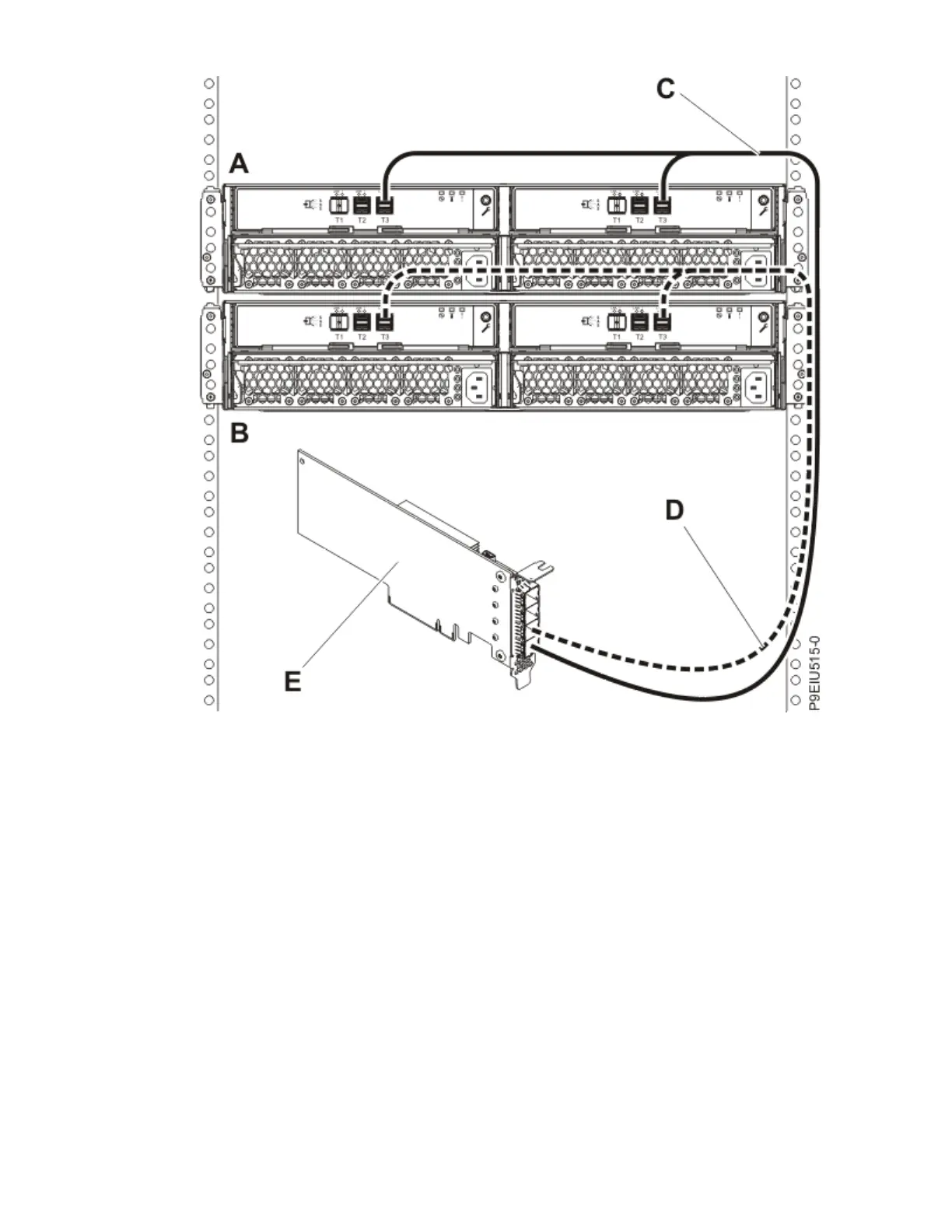

Figure 55. Mode 1 connection of two ESLL or ESLS storage enclosures by using YO12 cables to a single
SAS adapter
3. One pair of SAS adapters to one ESLL or ESLS storage enclosure by using a mode 1 connection.
• For SAS adapter pairs, you must attach the SAS cables to the same port on both adapters.
• Connection by using SAS YO12 cables to connect to the ESLL or ESLS storage enclosure.
Site and hardware planning
133
