IBM 9009-22A Site And Hardware Planning

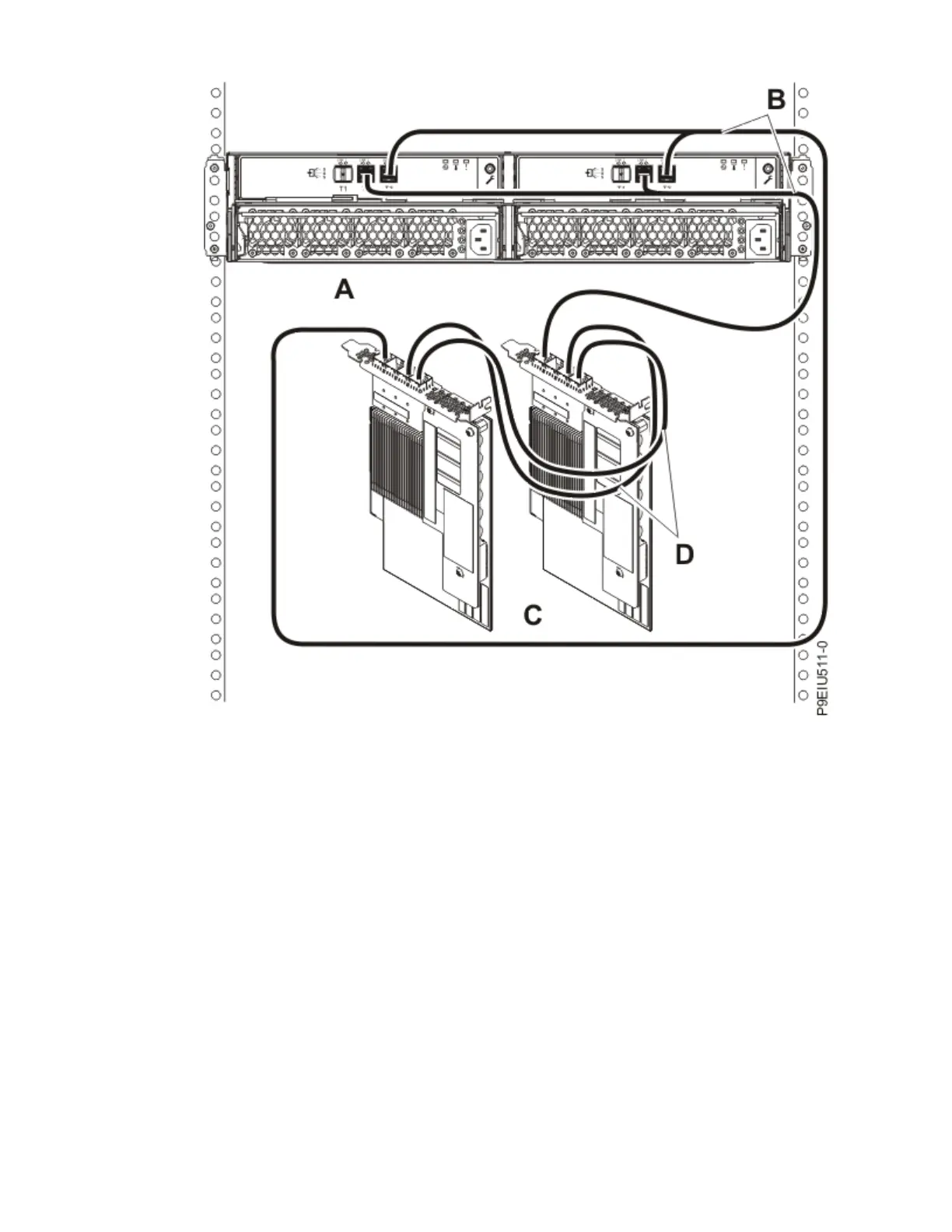

Figure 56. Mode 1 connection of one ESLL or ESLS storage enclosure by using YO12 cables to one pair of
SAS adapters
4. One pair of SAS adapters to two ESLL or ESLS storage enclosures by using a mode 1 connection.
• For SAS adapter pairs, you must attach the cables to the same port on both adapters.
• Connection by using dual SAS YO12 cables to connect to the 5887 enclosure.
134
Power Systems: Site and hardware planning
