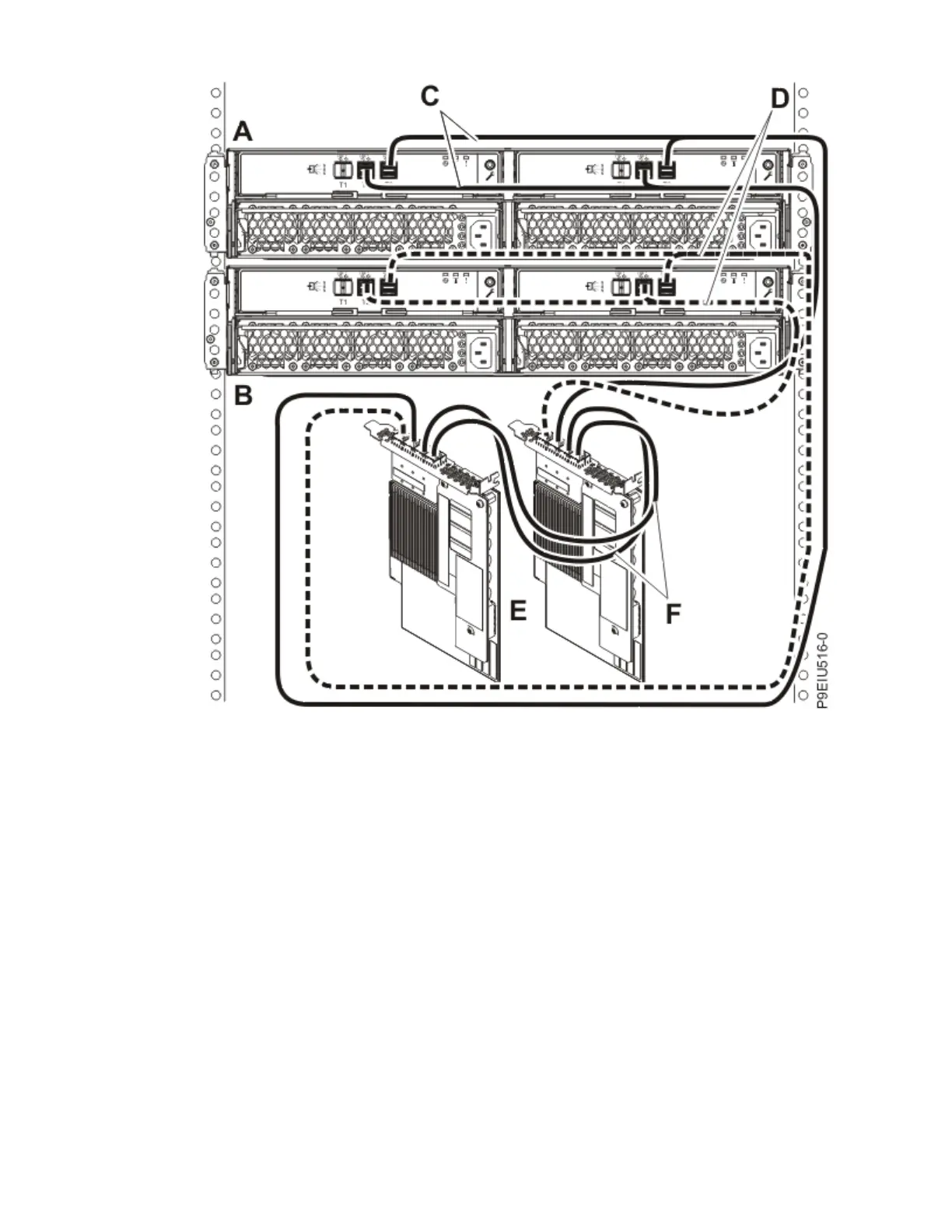

Figure 57. Mode 1 connection of two ESLL or ESLS storage enclosures by using YO12 cables to one pair
of SAS adapters
5. Two independent SAS adapters to one ESLL or ESLS storage enclosure by using a mode 2 connection.
• Connection by using two SAS YO12 cables to connect to the ESLL or ESLS storage enclosure.
Site and hardware planning
135
