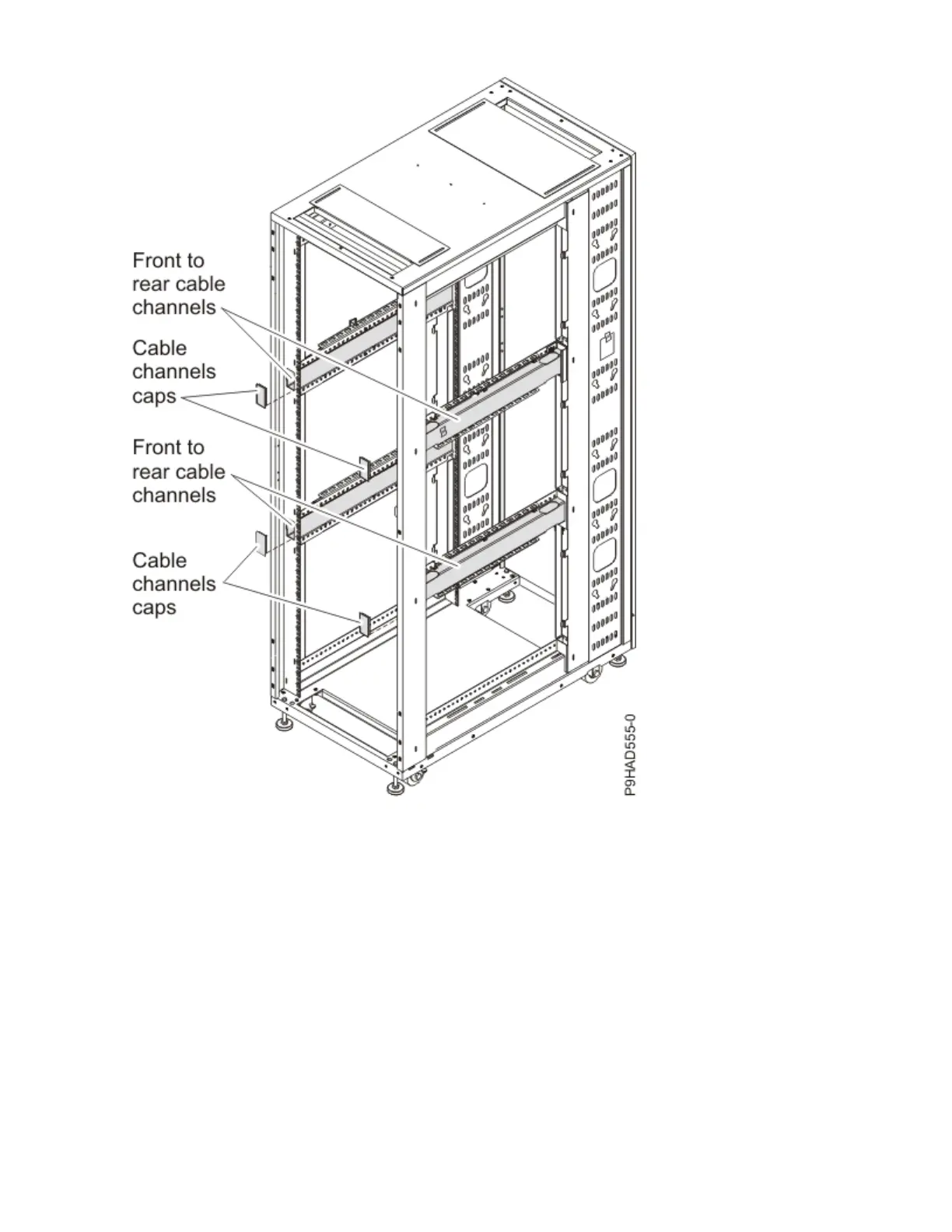

Figure 8. Cabling within the rack
Cabling under the floor
A cable access bar on the bottom rear of the rack helps to route the cables, leaving the rack in place. This
bar can be removed for installation and then reattached after the rack is installed and cabled.
42
Power Systems: Site and hardware planning
