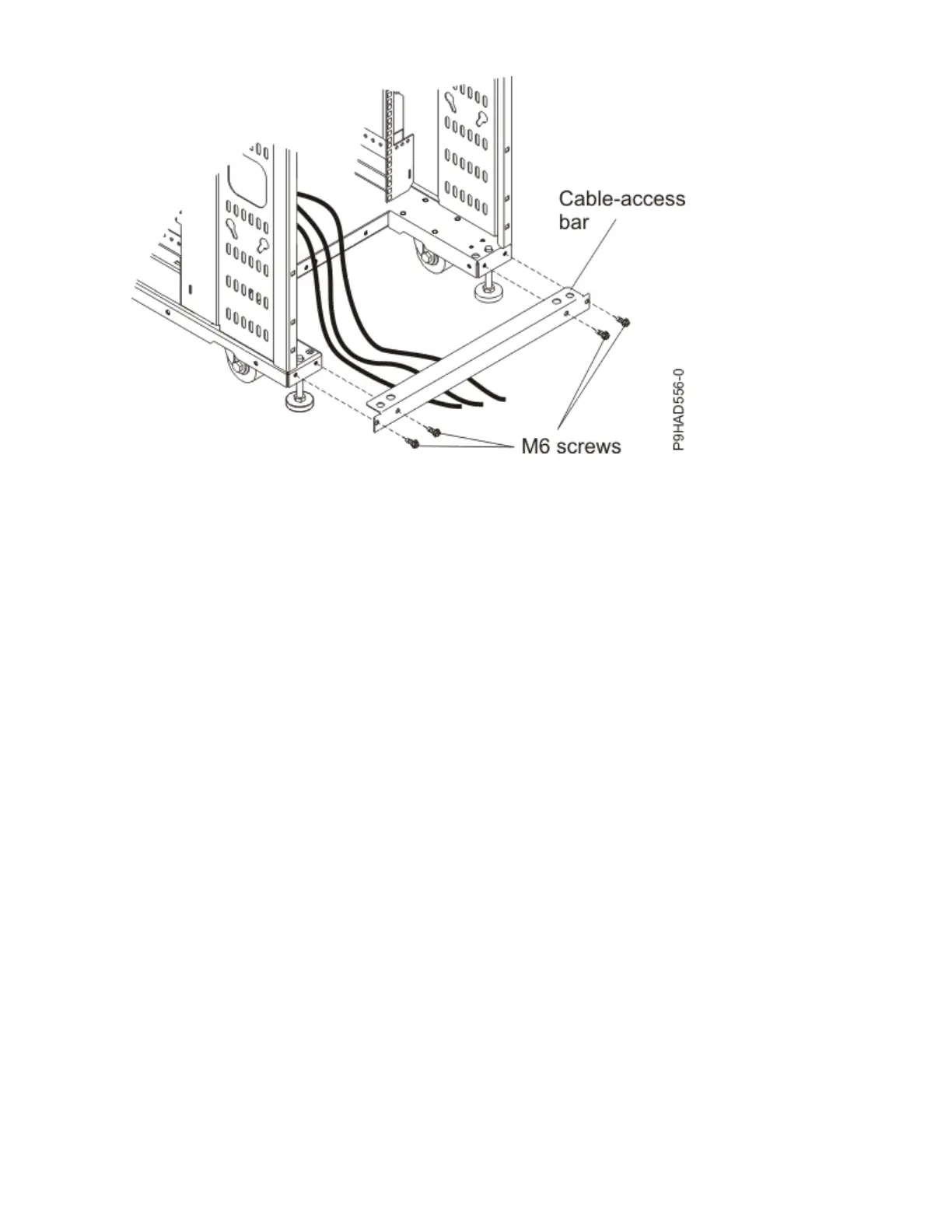

Figure 9. Cable access bar
Cabling overhead
Front and rear rectangular cable access openings that are on the top of the rack cabinet allow cables to
be routed up and out of the rack. Cable access covers are adjustable by loosing the side screws and
sliding the covers forward or backward.
Site and hardware planning
43
