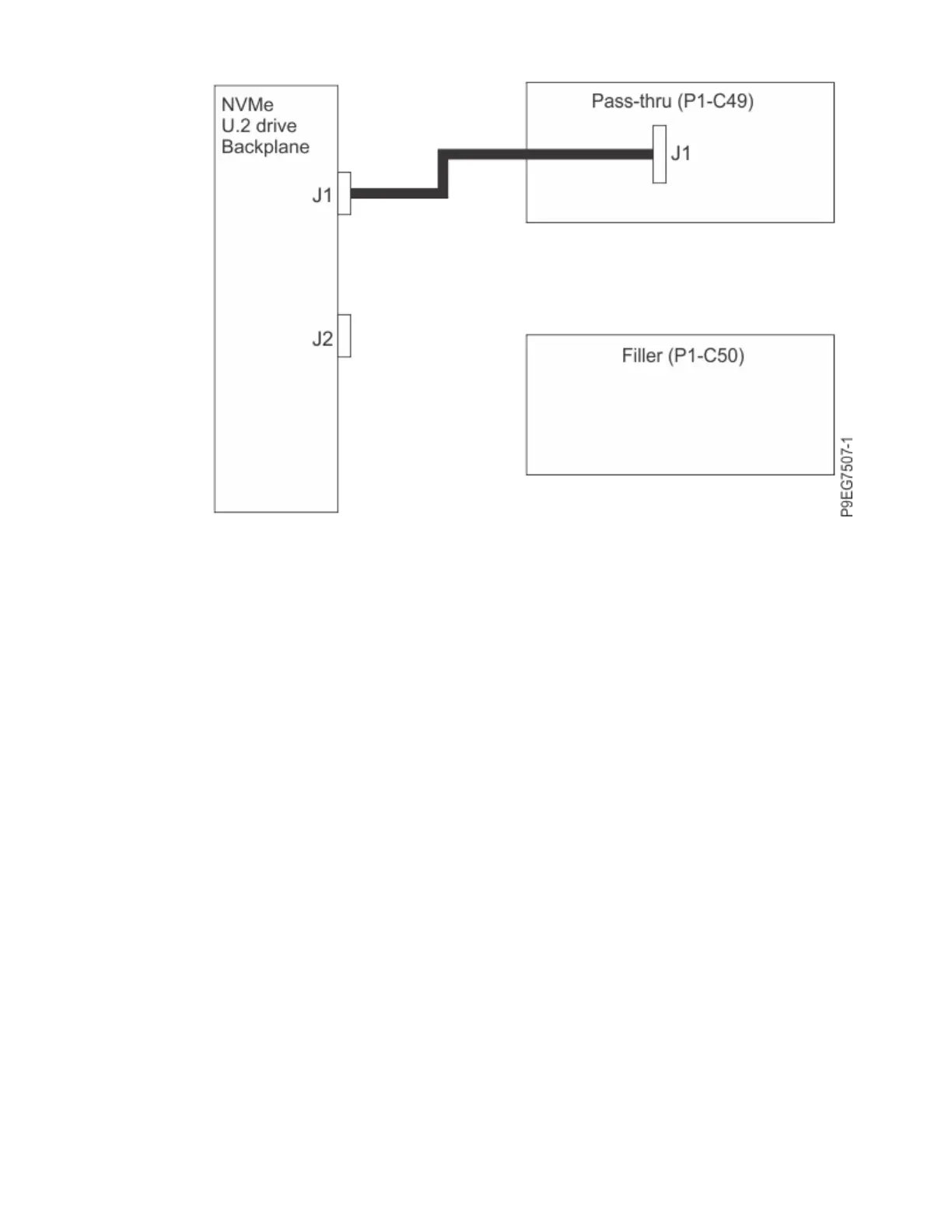

Figure 102. Connecting the NVMe cable for a system with one NVMe U.2 pass-thru card in P1-
C49 and a ller in slot P1-C50
If you have two NVMe U.2 pass-thru cards, one is installed in slot P1-C49 and the other one is
installed in slot P1-C50.
One NVMe cable connects from port (J1) on the NVMe drive backplane to port (J1) on the
NVMe U.2 pass-thru card in slot P1-C49. One NVMe cable connects from port (J2) on the
NVMe drive backplane to port (J1) on the NVMe U.2 pass-thru card in slot P1-C50. See the
following gure.
