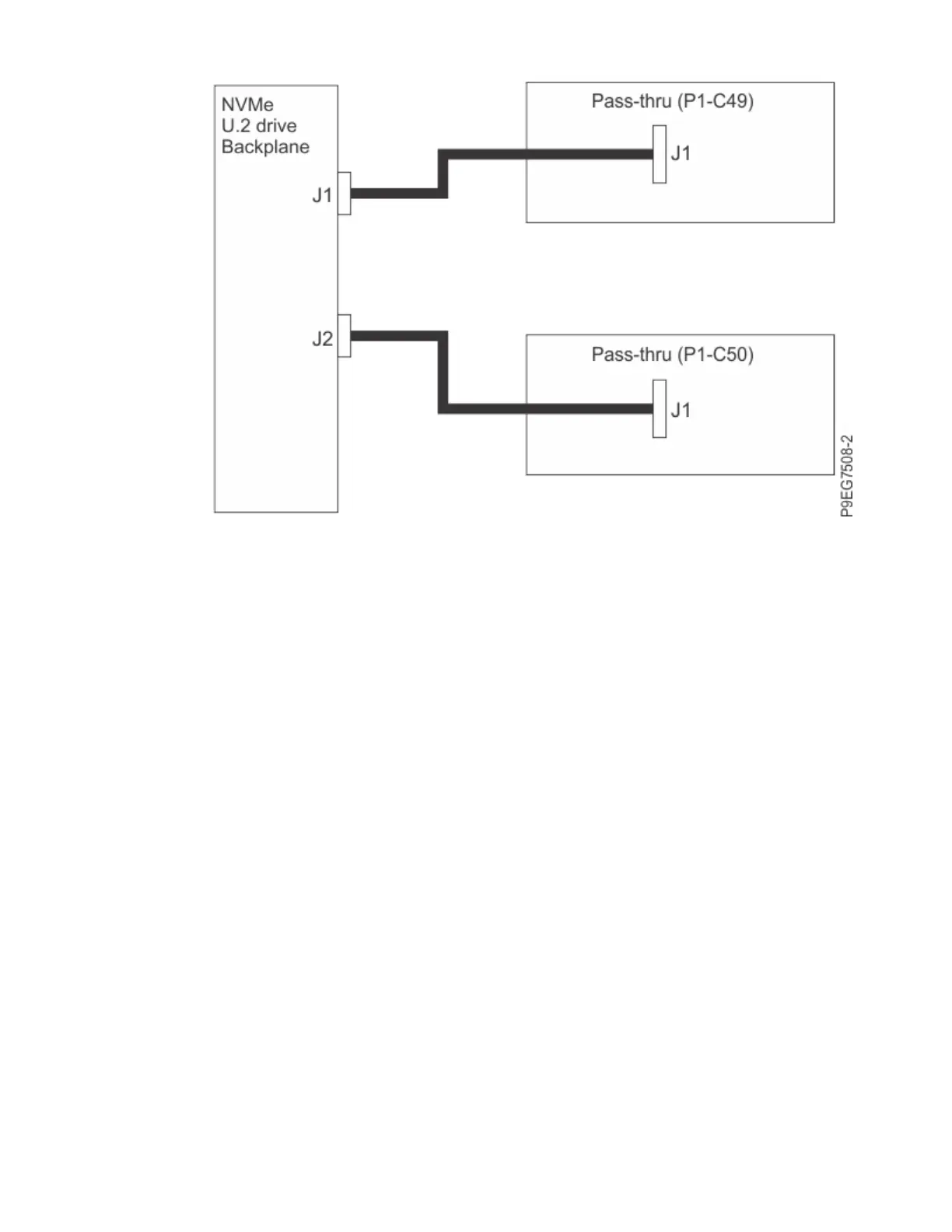

Figure 103. Connecting the NVMe cable for a system with two NVMe U.2 pass-thru cards in slot
P1-C49 and slot P1-C50
e) Push the connector in until the connector latch clicks. See the following gure.
