IBM 9009-22A

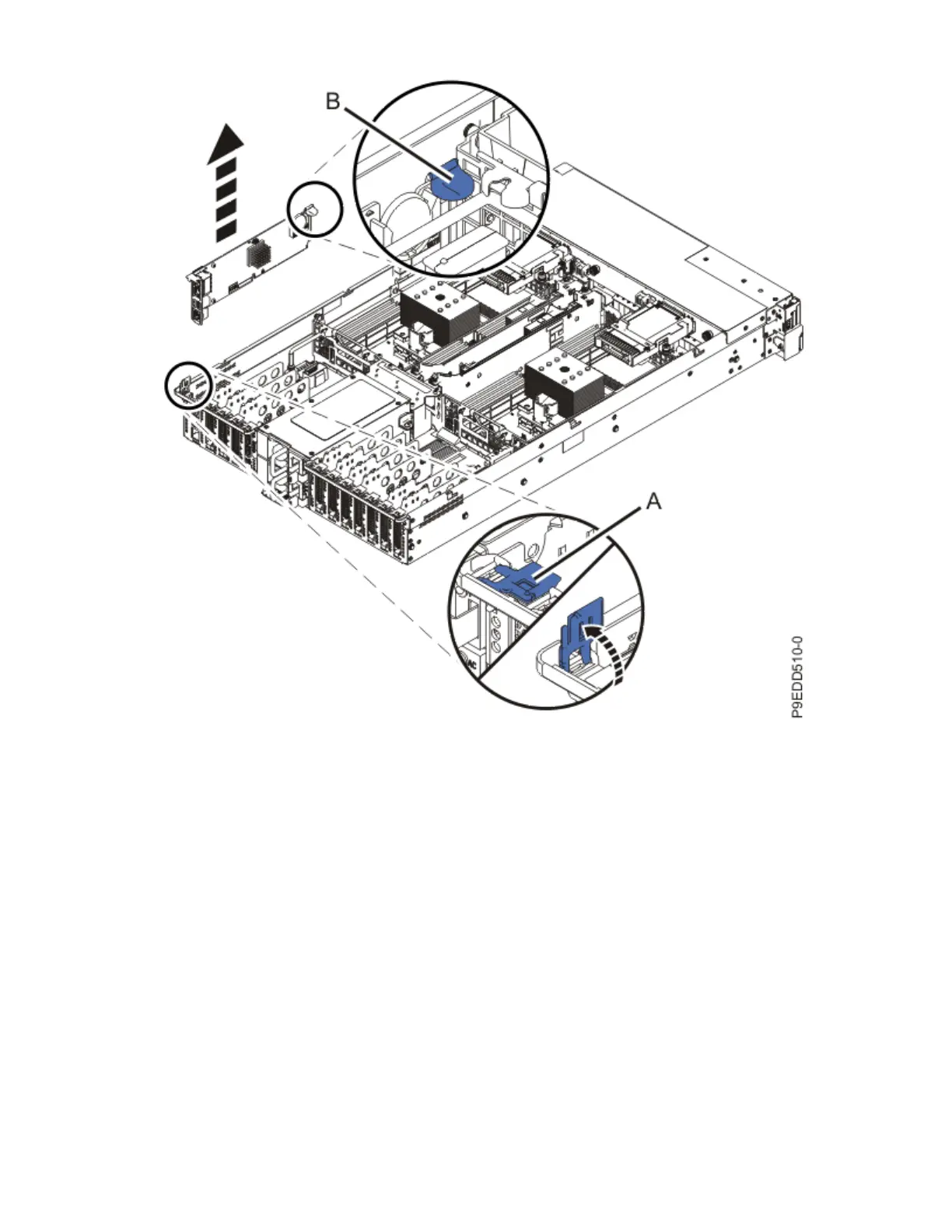

Figure 17. Removing the service processor card from slot P1-C1
8. Remove PCIe adapter dividers:
a) Place your nger on the top edge of the PCIe adapter divider (A) to hold the divider steady as
shown in the following gure.
Figure 18. Preparing to remove the PCIe adapter divider
20
Power Systems: System backplane
