8.
Connect
the
power
cable
î(A)î
to
the
front
of
the
power
supply
,
and
then
slide
the
cable
retention
bracket
(B)
to
the
closed
position
to
secure
the
cable
as
shown
in
Figur
e
24.
9.
Start
the
system,
as
described
in
Starting
the
system
or
logical
partition.

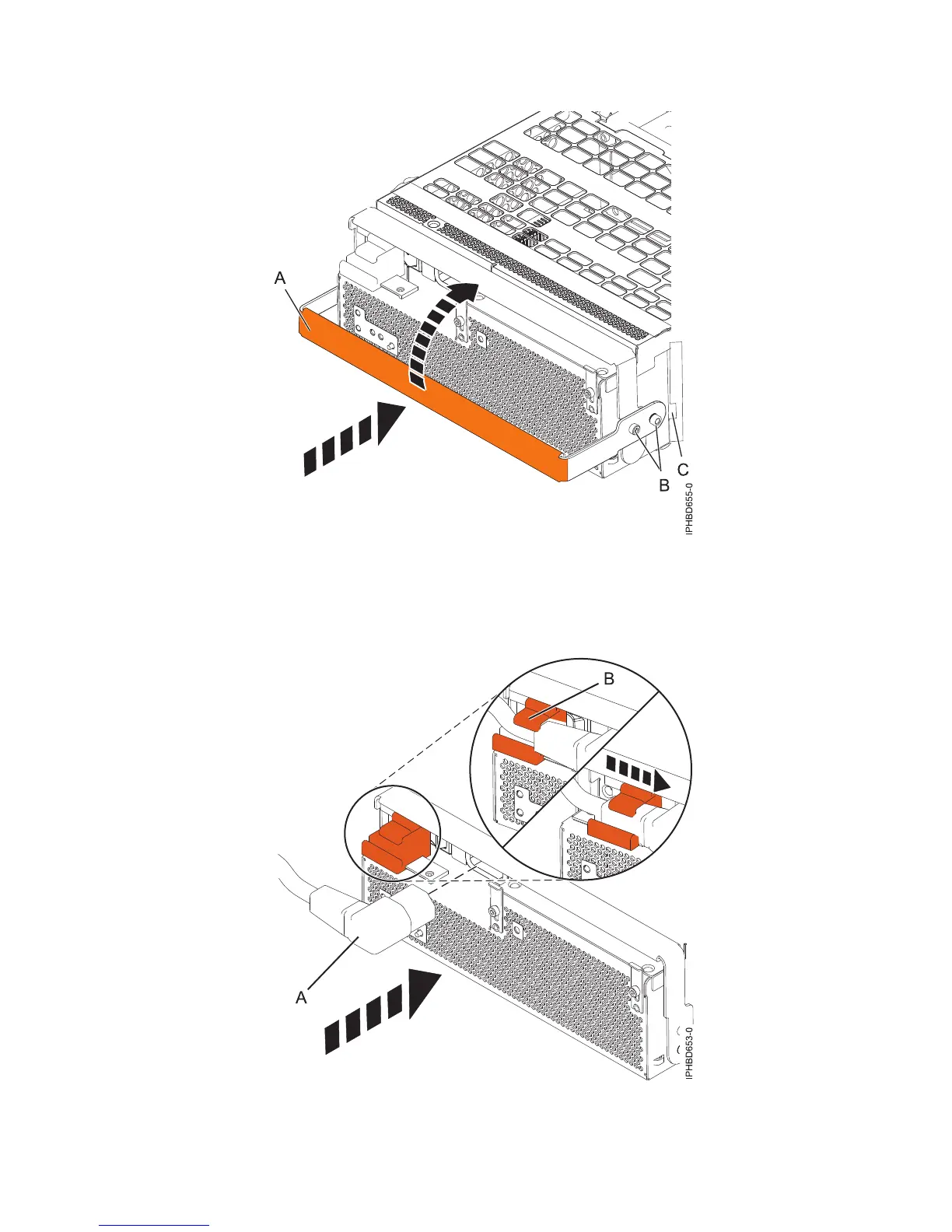

Figure
23.
Replacing
a
power
supply
Figure
24.
Connecting
the
power
cable
to
the
front
of
an
expansion
unit
Power
supplies
23
34
36
