8.
Loosen
the
thumbscrew
î(B)î
on
the
input
power
distribution
assembly
.
Pull
out
the
assembly
from
the
expansion
unit,
as
shown
in
Figur
e
29.

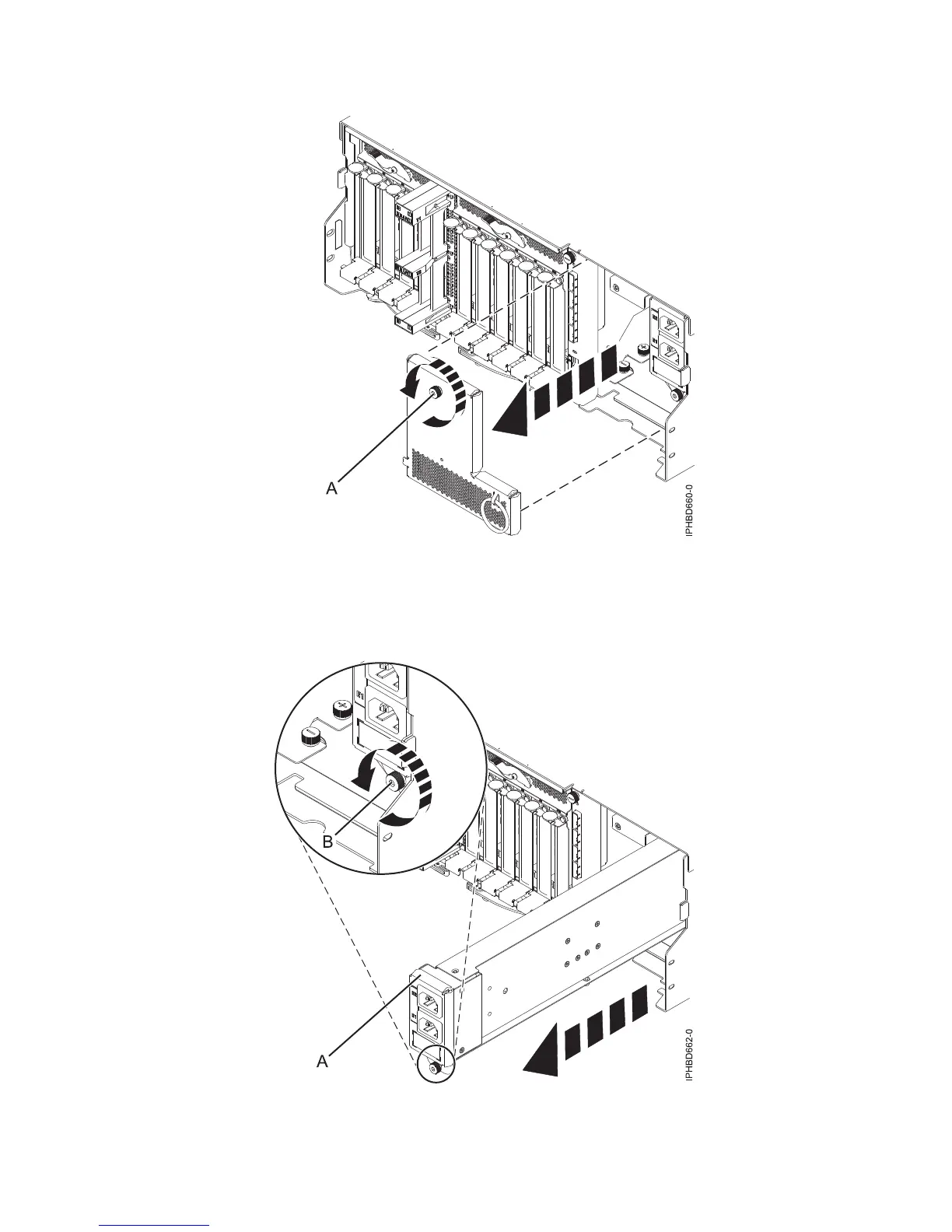

Figure
28.
Removing
an
input
power
distribution
assembly
cover
Figure
29.
Removing
an
input
power
distribution
assembly
Power
supplies
27
38
40
