6.
Replace
the
input
power
distribution
assembly
cover
,
and
then
tighten
the
thumbscr
ew
î(A)î
as
shown
in
Figur
e
31.

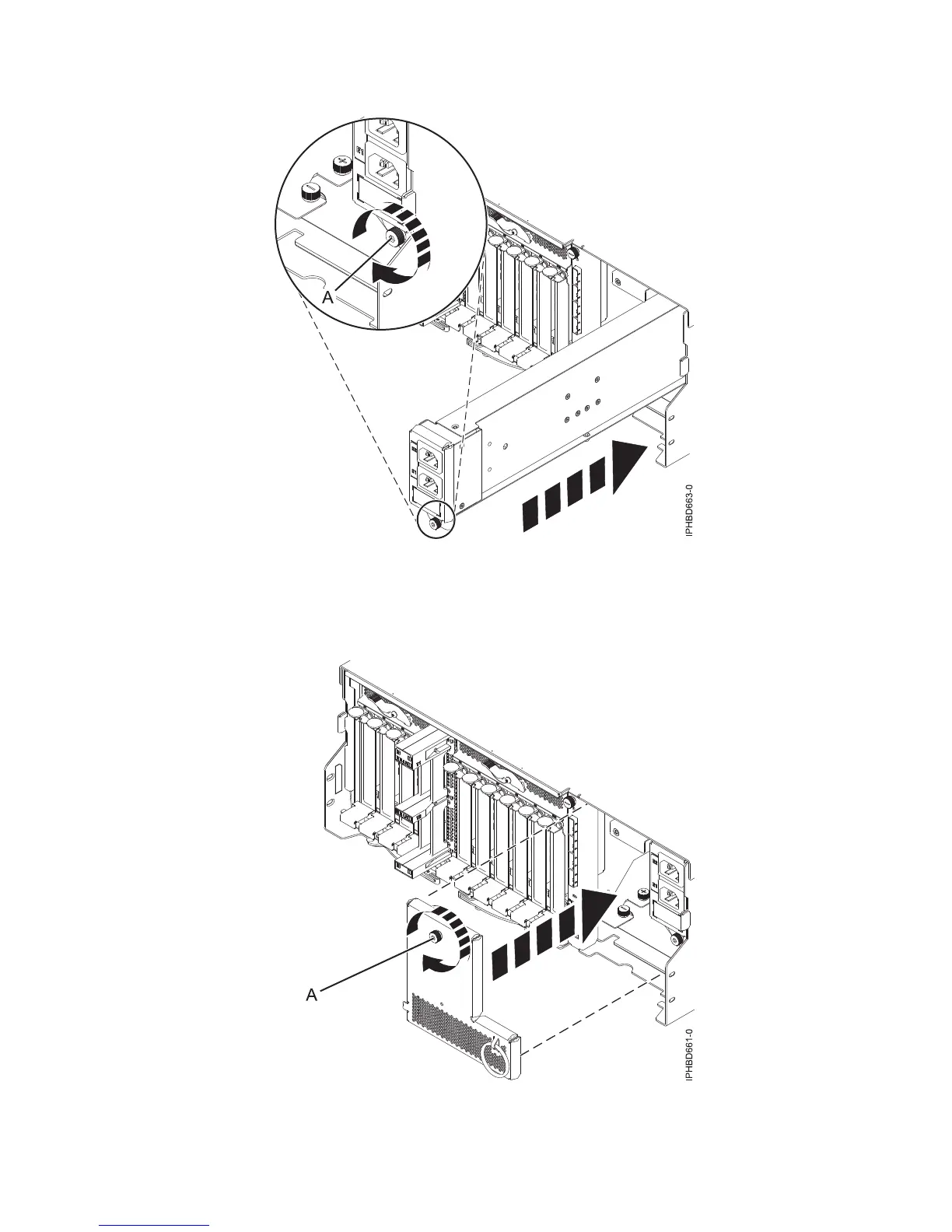

Figure
30.
Replacing
an
input
power
distribution
assembly
Figure
31.
Replacing
an
input
power
distribution
assembly
cover
Power
supplies
29
40
42
Table of Contents
Default Chapter
5
Table of Contents
5
Safety Notices
7
Power Supplies for the 9117-MMB, 9117-MMC, 9179-MHB, or 9179-MHC
13
Removing the 9117-MMB, 9117-MMC, 9179-MHB, or 9179-MHC Power Supply with the Power Turned off
13
Removing the 9117-MMB, 9117-MMC, 9179-MHB, or 9179-MHC Power Supply with the Power Turned on
15
Replacing the 9117-MMB, 9117-MMC, 9179-MHB, or 9179-MHC Power Supply with the Power Turned off
16
Replacing the 9117-MMB, 9117-MMC, 9179-MHB, or 9179-MHC Power Supply with the Power Turned on
18
Power Supply Leds
20
Power Supplies, Fans, and Input Power Distribution Assemblies in a 5802 or 5877 Expansion Unit
21
Removing a Power Supply or Fan from a 5802 or 5877 Expansion Unit with the Power Turned on
21
Removing a Power Supply or Fan from a 5802 or 5877 Expansion Unit with the Power Turned off
25
Replacing a Power Supply or Fan in a 5802 or 5877 Expansion Unit with the Power Turned on
28
Replacing a Power Supply or Fan in a 5802 or 5877 Expansion Unit with the Power Turned off
33
Removing an Input Power Distribution Assembly from a 5802 or 5877 Expansion Unit with the Power Turned off
37
Replacing an Input Power Distribution Assembly in a 5802 or 5877 Expansion Unit with the Power Turned off
40
Replacing an Input Power Distribution Assembly in a 5802 or 5877 Expansion Unit with the Power Turned off
42
Common Procedures for Installable Features
45
Before You Begin
45
Identifying a Part
47
Control Panel Leds
47
Activating the Indicator Light for the Failing Part
49
Deactivating the Failing-Part Indicator Light
49
Identifying a Failing Part in an AIX System or Logical Partition
49
Locating a Failing Part in an AIX System or Logical Partition
49
Activating the Indicator Light for the Failing Part
50
Deactivating the Failing-Part Indicator Light
50
Finding the Location Code of a Failing Part in a Linux System or Logical Partition
50
Identifying a Failing Part in a Linux System or Logical Partition
50
Identifying a Failing Part in an IBM I System or Logical Partition
50
Locating a Failing Part in a Linux System or Logical Partition
50
Identifying a Part by Using the Virtual I/O Server
51
Locating a Failing Part in a Virtual I/O Server System or Logical Partition
51
Starting the System or Logical Partition
51
Starting a System that Is Not Managed by an HMC or an SDMC
51
Starting a System or Logical Partition by Using the Hardware Management Console
53
Starting a System or Virtual Server with the Systems Director Management Console
53
Stopping a System or Logical Partition
53
Stopping a System that Is Not Managed by an HMC or an SDMC
54
Stopping a System by Using the Hardware Management Console
55
Stopping a System with the Systems Director Management Console
55
Placing the 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System into the Service or Operating Position
56
Placing a Rack-Mounted 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System into the Service Position
56
Placing the Rack-Mounted 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System into the Operating Position
57
Removing and Replacing Covers for the 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C
59
Removing the Front Cover on a Rack-Mounted 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System
59
Removing the Front Cover on a Stand-Alone 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System
60
Installing the Front Cover on a Rack-Mounted 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System
61
Installing the Front Cover and Front Door on a Stand-Alone 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System
62
Removing the Service Access Cover on a Rack-Mounted 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System
63
Removing the Service Access Cover on a Stand-Alone 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System
64
Installing the Service Access Cover on a Rack-Mounted 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System
66
Installing the Service Access Cover on a Stand-Alone 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System
66
Disconnecting the Power Cords from the 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System
68
Connecting the Power Cords to the 8202-E4B, 8202-E4C, 8205-E6B, or 8205-E6C System
70
Installing a Feature by Using the Hardware Management Console
70
Installing a Part by Using the Systems Director Management Console
71
Verifying the Installed Part
71
Verifying an Installed Part by Using Stand-Alone Diagnostics
71
Verifying the Installed Part by Using Hardware Management Console
72
Activating and Deactivating Leds by Using the HMC
73
Viewing Serviceable Events by Using the HMC
74
Activating and Deactivating Leds by Using the SDMC
75
Verifying the Installed Part by Using Systems Director Management Console
75
Viewing Serviceable Events by Using the IBM Systems Director Management Console
76
Verifying an Installed Feature or Replaced Part on a System or Logical Partition by Using Virtual I/O Server Tools
77
Verifying a Repair
79
Verifying the Repair in AIX
80
Verifying a Repair Using an IBM I System or Logical Partition
83
Verifying the Repair from the Management Console
85
Verifying the Repair in Linux
85
Closing a Service Call
87
Closing a Service Call Using AIX or Linux
91
Closing a Service Call Using Integrated Virtualization Manager
95
Activating and Deactivating Leds
99
Activating or Deactivating an Identify LED Using the Management Console
100
Deactivating a System Attention LED or Partition LED Using the Management Console
100
Deactivating a System Attention LED or Logical Partition LED Using the Advanced System Management Interface
101
Activating or Deactivating an Identify LED Using the Advanced System Management Interface
102
Notices
103
Trademarks
104
Electronic Emission Notices
104
Class a Notices
104
Class B Notices
108
Terms and Conditions
111
5
