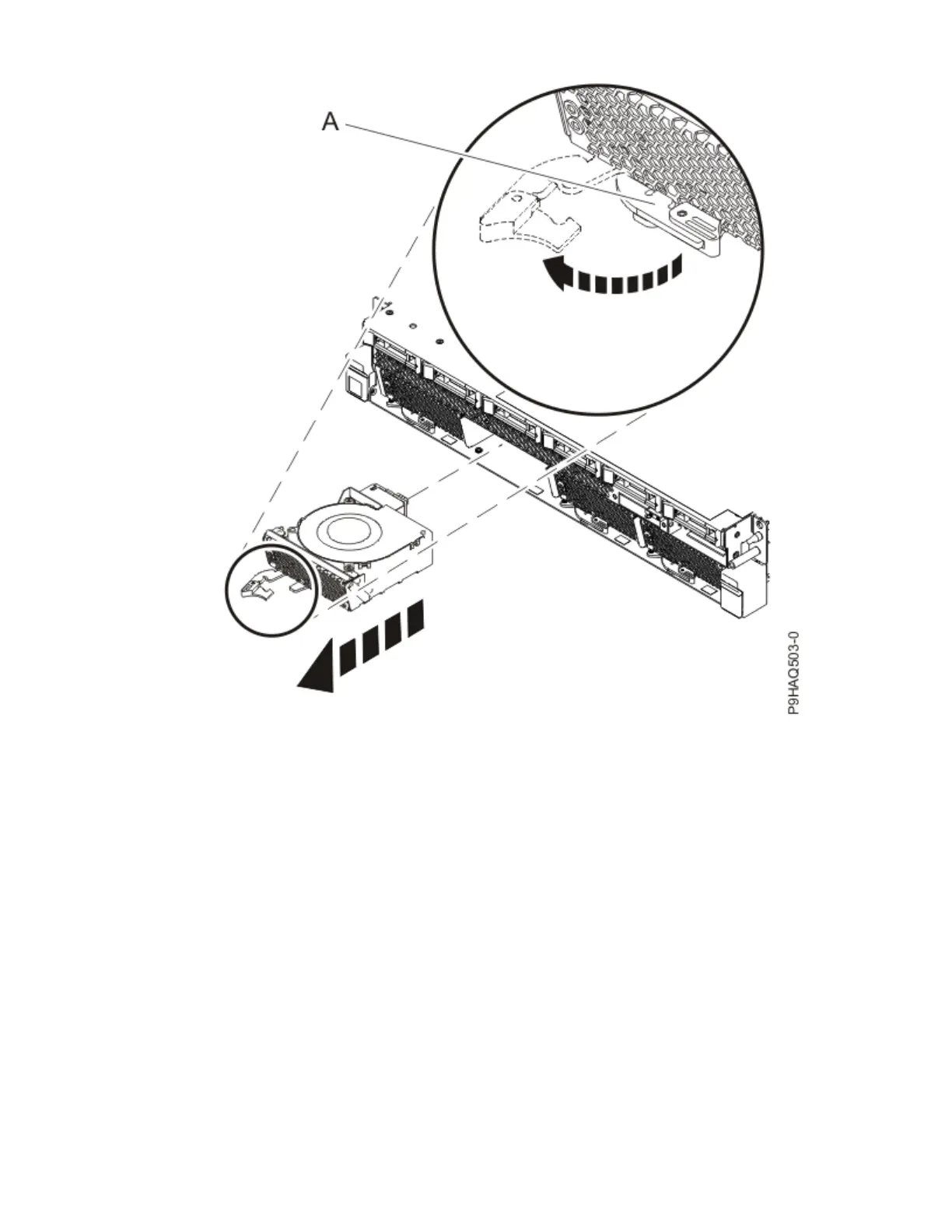

Figure 47. Removing a fan from the system
21. Disconnect the control panel cable from the system backplane:
a) Unplug the control panel cable from the system backplane as shown in the following gure.
As you face the chassis, the connector is in the left front corner. You can pull the cable from the
system backplane by using the cable cover near the plug.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 49
