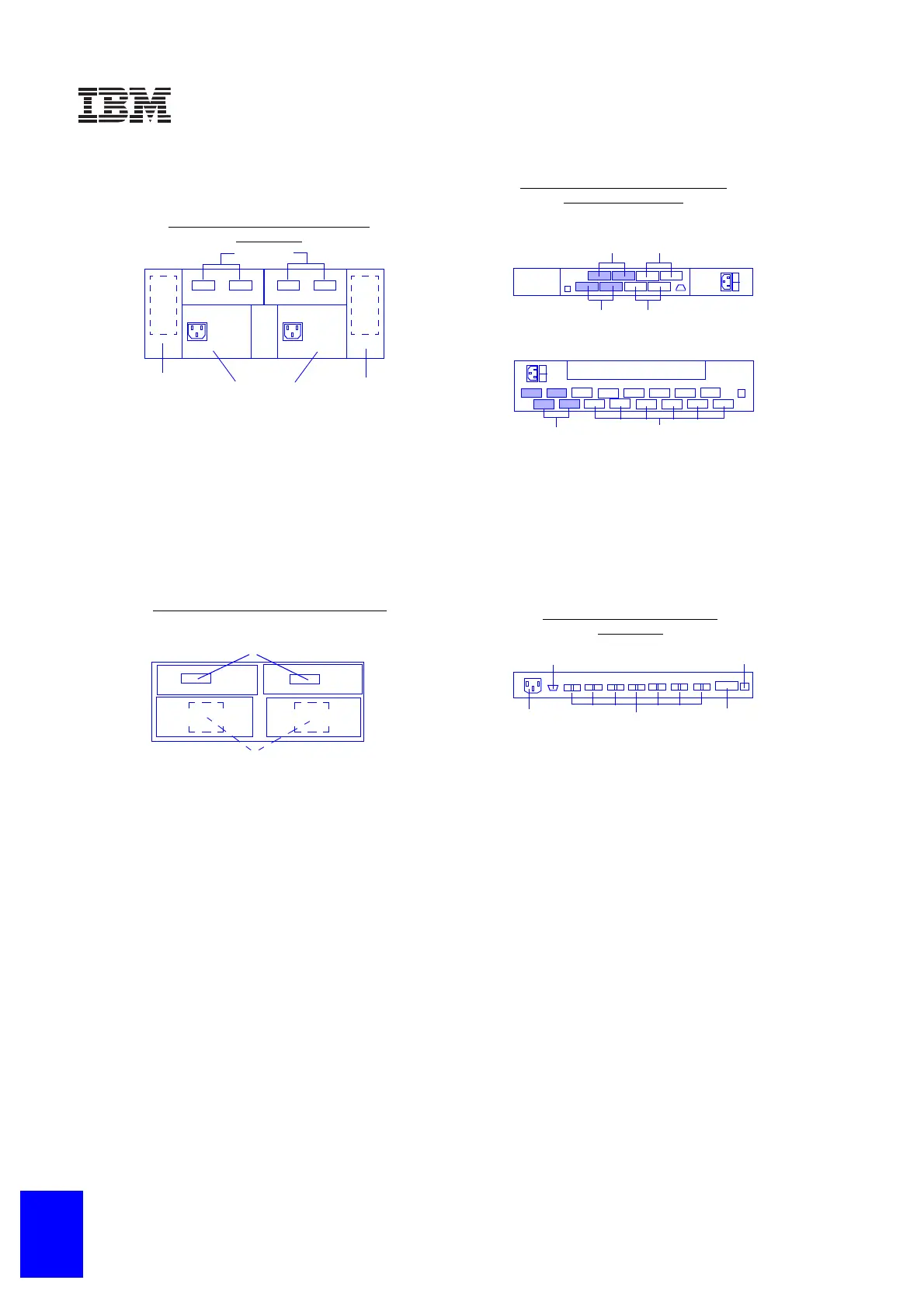

GBIC Ports
Hot-swap
Fan
Hot-swap
Fan
Hot-swap
Power Supplies
FAStT EXP500 Storage Expansion Unit
P/N 00N71xx
• Two hot-swap, 350 W auto-ranging, redundant power supplies.
• Redundant fans - two hot-swap, dual-fan units.
• LED indicators on all critical components warn of faults, over
temperature, and other abnormalities.
• Ten drive bays - supports slim-high or half-high Fibre Channel hot-
swap hard disk drives.
• Height is 3U (1 U = 1,75 in. or 44.45 mm)
• Requires Netfinity Enterprise Rack or Expansion Cabinet, Netfinity
Rack, Netfinity NetBAY22 or 19-inch EIA-D Industry-Standard
Rack. Mounting rails are included with the controller.
• Requires optional GBICs for each connection. GBICs not included.
GBIC Ports
with GBICs
GBIC Ports
GBIC Ports
GBIC Ports
with GBICs
GBIC Ports
SAN Fibre Channel Switch, 8 or 16 Ports
P/Ns 2109S08, 2109S16
8 port switch
16 port switch
GBIC Ports
with GBICs
• Each port delivers up to 100 MB/sec, full-duplex data transfer.
• Comes with 4 Short-Wave GBICs installed.
• Embedded Web browser configuration, management and
service.
• Support for Public Fibre Channel Arbitrated Loops.
• Optional power supply (P/N 09L5403) available.
• The 8 port switch is 1 U (1 U=1.75 in. or 44.45 mm) high and
the 16 port switch is 2 U (1 U=1.75 in. or 44,45 mm) high.
P/N 2019S08
P/N 2019S16
SAN Fibre Channel Managed Hub
P/N 35L1647
Power
Integrated Short-Wave
Optical Ports
GBIC Port
Serial Port
10/100 Ethernet Port
• High-speed performance utilising nonblocking switch-based
technology.
• Simultaneous 100 MB/sec full duplex data transfers across all ports.
• Eight ports total, one that is configurable with either an optional
short-wave or long-wave GBIC and seven integrated short-wave
optical ports.
• Support for industry standard MIBs enabling standard SNMP
management.
• Height is 1 U (1 U=1.75 in. or 44.45 mm) high.
SCSI Connectors
Hot-swap Power Supplies with
Integrated Fan
EXP300 Storage Expansion Unit P/N 19K11xx
• Fourteen slim-high drive bays.
• Supports Ultra160 SCSI data transfer speeds - up to 160 MB/s.
• Single or dual SCSI bus configurations.
• Dual hot-swap 500 W redundant power supplies with integrated
fan assemblies.
• Height is 3 U (1 U=1.75 in. or 44.45 mm).
• Tower capability through optional Rack-to-Tower Conversion Kit.
• Requires Netfinity Enterprise Rack or Expansion Cabinet,
Netfinity Rack, Netfinity NetBAY22 or 19-inch EIA-D
Industry-Standard Rack. Mounting rails are included with
the controller.
