IBM F50 RS/6000 7025

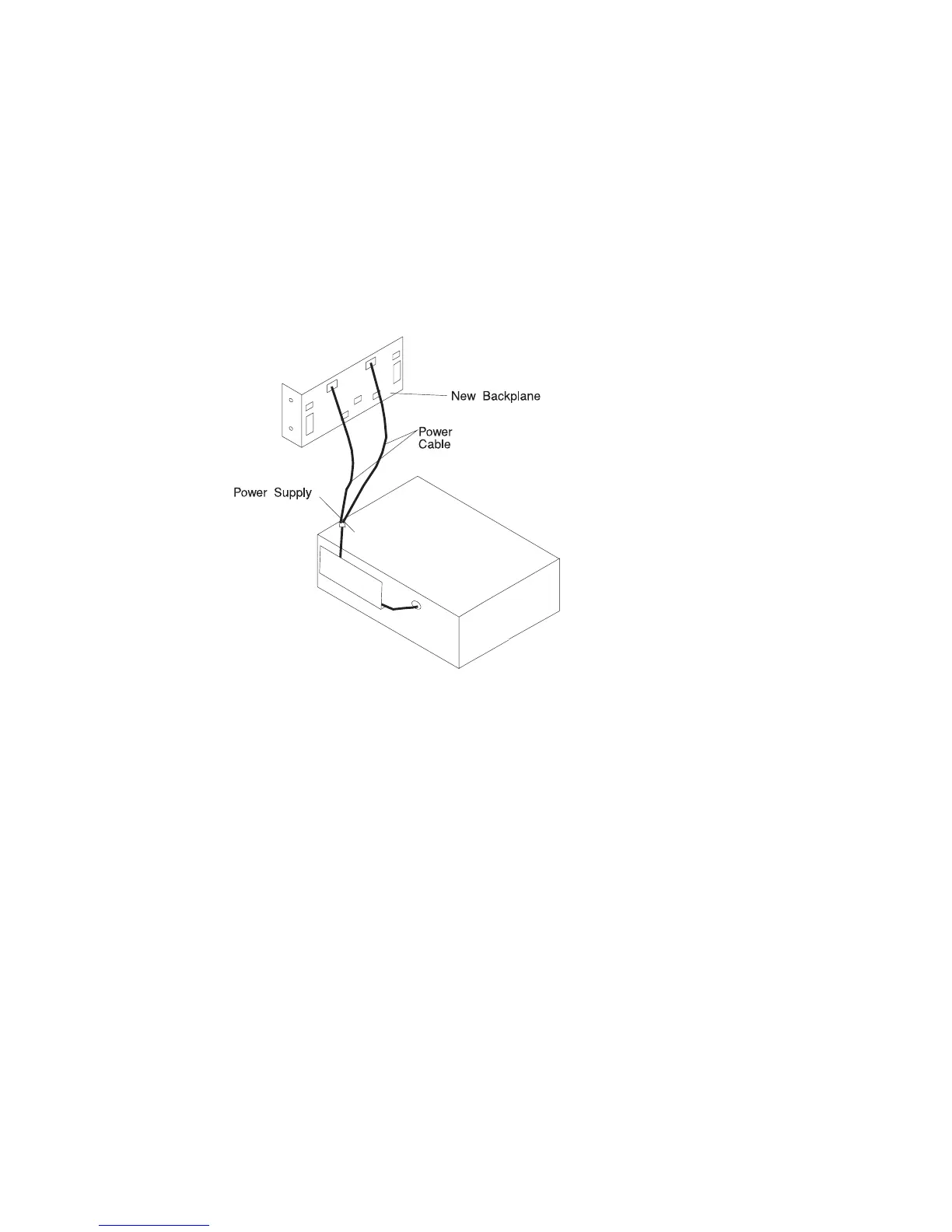

18. Attach the new power cable to backplane E.
19. Attach the SSA daisy chain cable to the connector on Backplane D.
20. If the other end is not attached to the inside SSA connector on Backplane E.
21. Connect the connector from the EPOW cable to backplane E as shown.
5-76
IBM RS/6000 7025 F50 Series User's Guide
