installed, you can configure the internal hard disk drives into disk arrays. You can
also cable a SCSI adapter to external hard disk drives. See your SCSI adapter
option documentation for complete instructions for installing a SCSI adapter in your
computer and for additional information about SCSI adapters.
Notes:
1. The SCSI cables that are used by the integrated SCSI controller cannot be
used with an optional SCSI adapter.
2. If you install a ServeRAID 6i+ adapter, it must be installed in slot 3; no cabling
is required for this adapter.

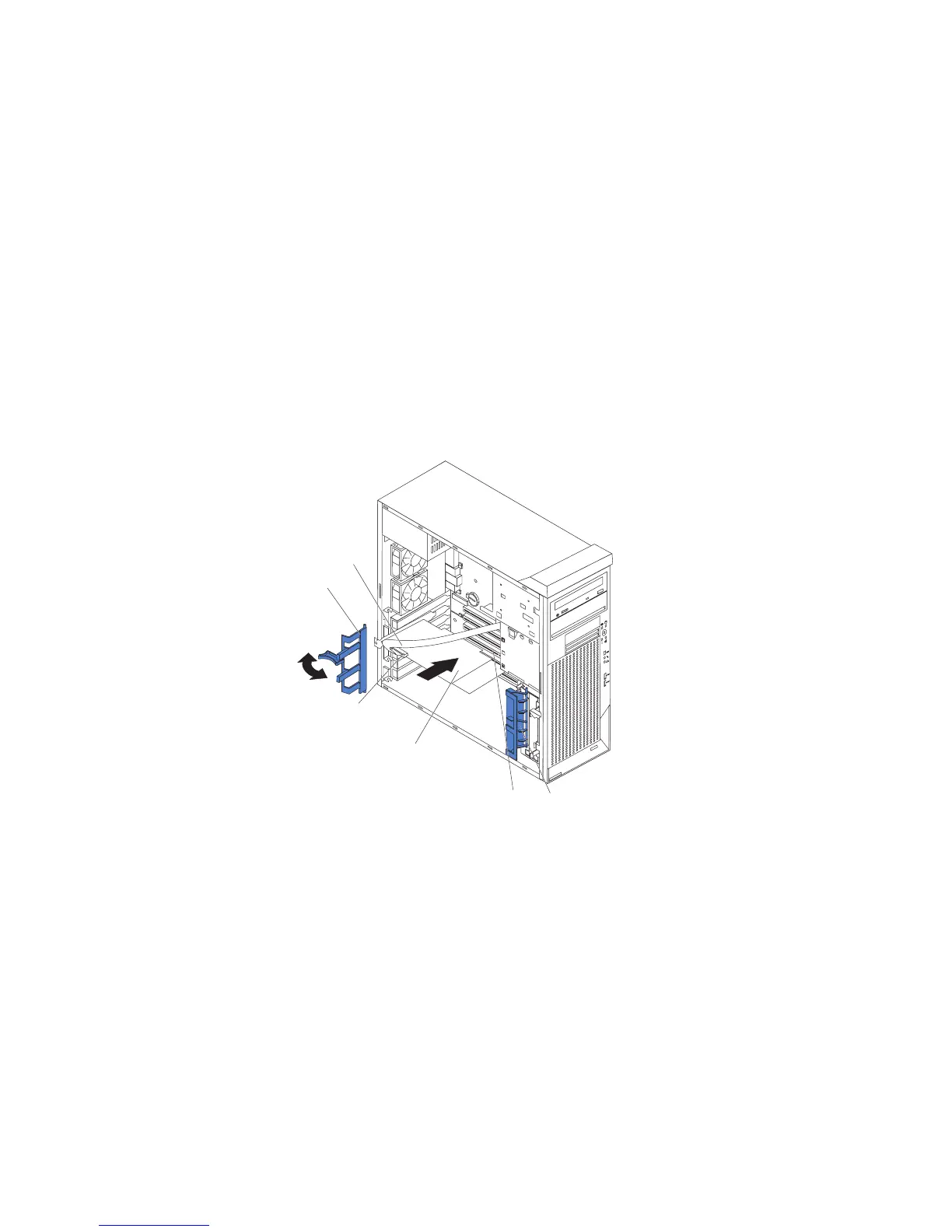

Complete the following steps to cable an optional SCSI adapter:
1. Install the SCSI adapter (see “Installing an adapter” on page 17).
2. Connect the SCSI-signal cable to the adapter and one or more of the signal
cable connectors to the rear of the SCSI devices.
3. Connect the SCSI-activity-indicator cable to the adapter and to the SCSI-LED
connector on the system board. See “System-board internal connectors” on
page 13 for the location of the SCSI-LED connector.
1394
Rear
adapter-
support
bracket
Front
adapter-
support
bracket
SCSI
adapter
SCSI
LED
SCSI signal
cable connector
SCSI
signal
cable
4. Complete the installation of the optional SCSI adapter.
20 IntelliStation A Pro Type 6224: Installation Guide
