Note: You might find it easier to install the new drive into the opening on the
front and then attach the cables.
9. If you are installing a 3.5-in. drive in bay 2, attach a 5.25-in. conversion kit to
the 3.5-in. drive.

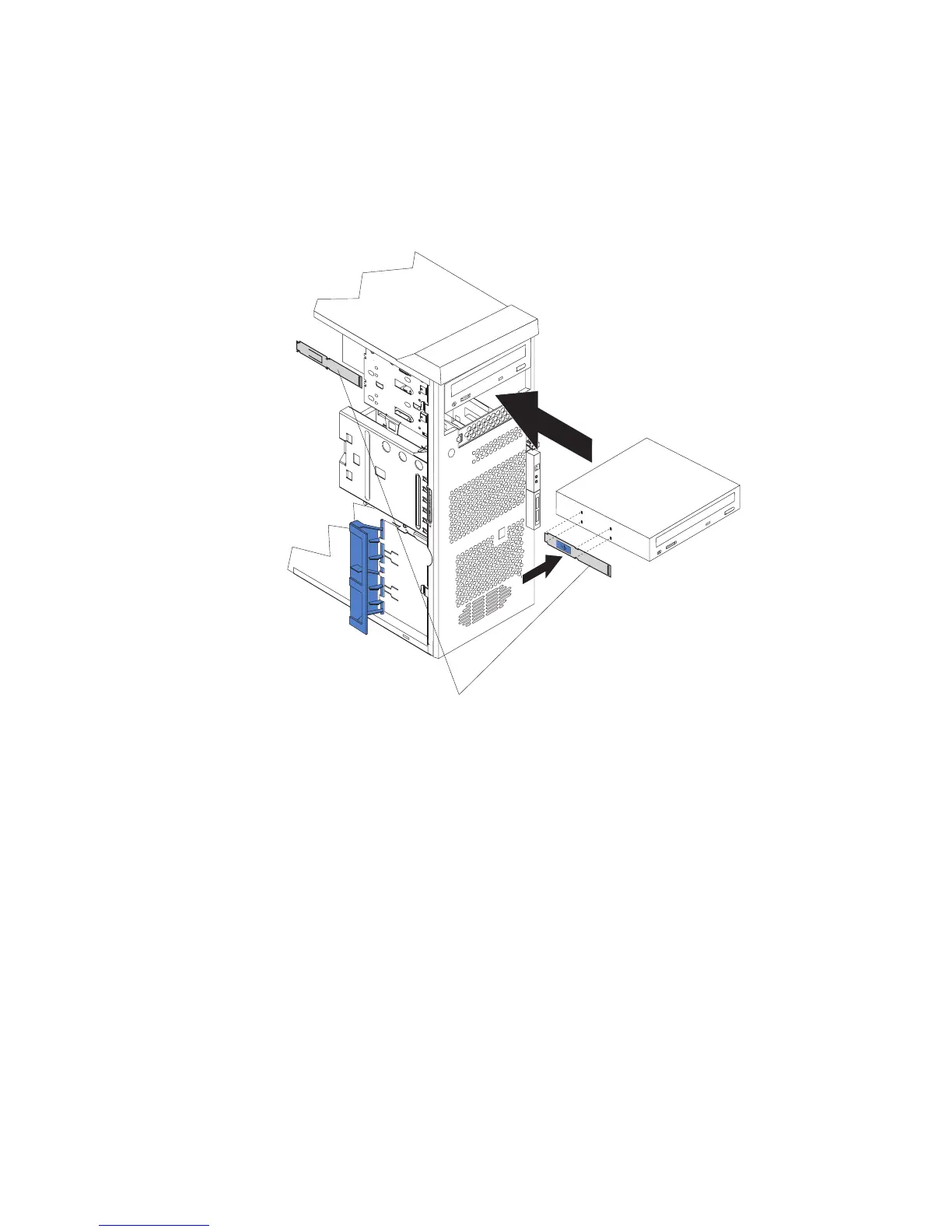

10. Remove the clip from the side of the drive cage of bays 1 and 2 by sliding the
clip to the left; then, snap the clip into the screw holes on the side of the drive
(the blue side of the clip should be facing outward).
Drive clip
11. Push the drive into the bay.
12. Determine whether the drive is an IDE or SCSI device; then, connect one end
of the applicable signal cable into the back of the drive and the other end of
this cable into the applicable IDE or SCSI connector on the system board. See
“Power and signal cables for internal drives” on page 29 for additional
information about cabling drives and “System-board internal connectors” on
page 13 for the location of IDE and SCSI connectors on the system board. If
there are open connectors on the cables connecting existing IDE or SCSI
drives, you can use these cables to connect the new drive.
13. Route the signal cable so that it does not block the airflow to the rear of the
drives or over the microprocessor.
14. Connect the power cable to the back of the drive. The connectors are keyed
and can be inserted only one way.
15. If you have other options to install or remove, do so now; otherwise, replace
the bezel and support bracket and then go to “Completing the installation” on
page 39.
24 IntelliStation A Pro Type 6224: Installation Guide
