Appendix A. Connector Pin Assignments
PCI Bus Connectors
B1
A1
B62
B49 B52
A62
A49
A52

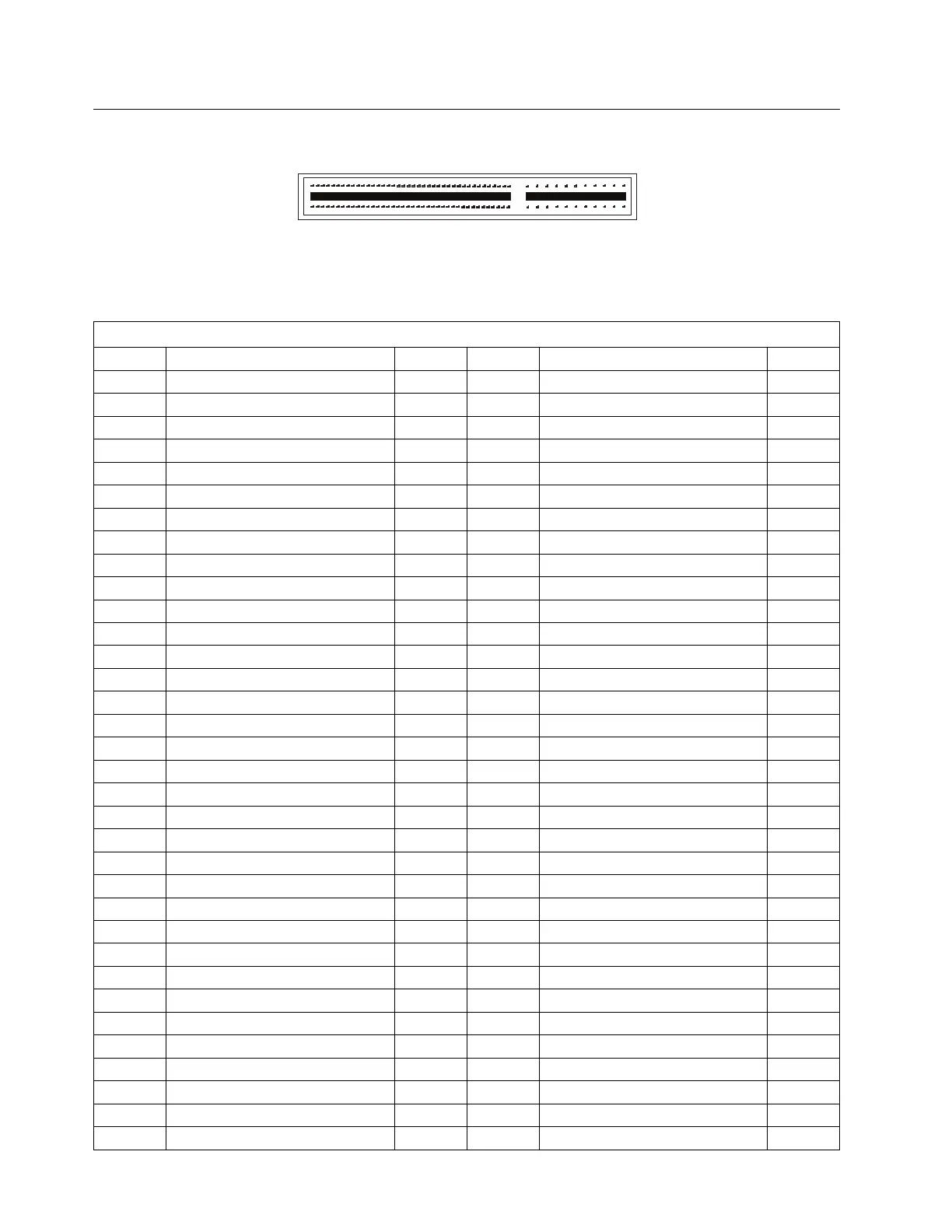

Figure 3. PCI Bus Connector
Note: The PCI bus connectors are located on the system board.
Table 37 (Page 1 of 2). Pin Assignments for the PCI Bus Connectors
Pin Signal Name I/O Pin Signal Name I/O
A1 TRST# O B1 −12 V dc NA
A2 +12 V dc NA B2 TCK O
A3 TMS O B3 Ground NA
A4 TDI O B4 TDO I
A5 +5 V dc NA B5 +5 V dc NA
A6 INTA# I B6 +5 V dc NA
A7 INTC# I B7 INTB# I
A8 +5 V dc NA B8 INTD# I
A9 Reserved NA B9 PRSNT1# I
A10 +5 V dc NA B10 Reserved NA
A11 Reserved NA B11 PRSNT2# I
A12 Ground NA B12 Ground NA
A13 Ground NA B13 Ground NA
A14 Reserved NA B14 Reserved NA
A15 RST# O B15 Ground NA
A16 +5 V dc NA B16 CLK O
A17 GNT# O B17 Ground NA
A18 Ground NA B18 REQ# I
A19 Reserved NA B19 +5 V dc NA
A20 Address/Data 30 I/O B20 Address/Data 31 I/O
A21 +3.3 V dc NA B21 Address/Data 29 I/O
A22 Address/Data 28 I/O B22 Ground NA
A23 Address/Data 26 I/O B23 Address/Data 27 I/O
A24 Ground NA B24 Address/Data 25 I/O
A25 Address/Data 24 I/O B25 +3.3 V dc NA
A26 IDSEL O B26 C/BE3# I/O
A27 +3.3 V dc NA B27 Address/Data 23 I/O
A28 Address/Data 22 I/O B28 Ground NA
A29 Address/Data 20 I/O B29 Address/Data 21 I/O
A30 Ground NA B30 Address/Data 19 I/O
A31 Address/Data 18 I/O B31 +3.3 V dc NA
A32 Address/Data 16 I/O B32 Address/Data 17 I/O
A33 +3.3 V dc NA B33 C/BE2# I/O
A34 FRAME# I/O B34 Ground NA
