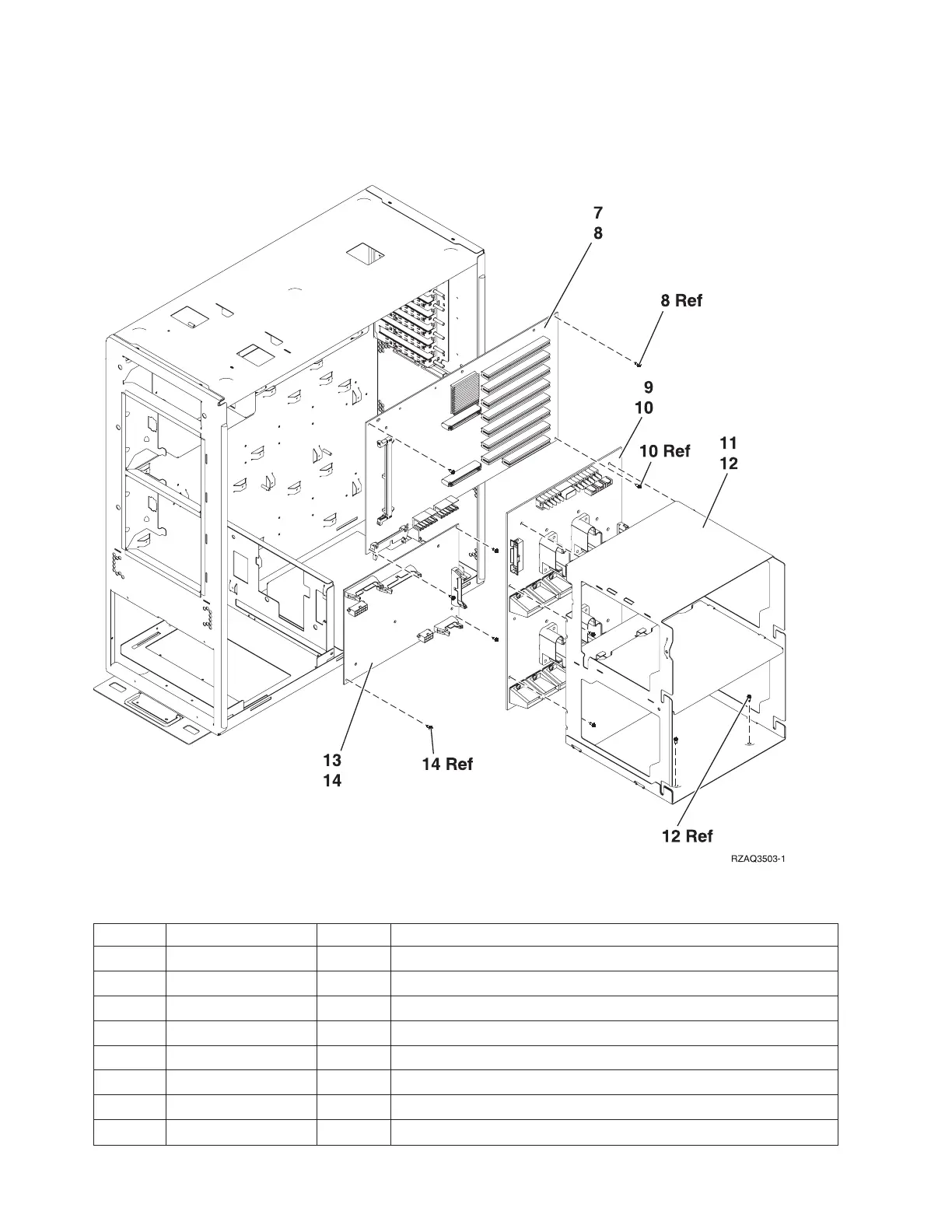

Figure 2. Final assembly — FC 5075, continued
Table 2. Final assembly — FC 5075, continued
Index Part number Units Description
7 NONUM 1 Backplane assembly
8 75G2878 8 Screw, M3.5 x 8mm
9 04N6111 1 Power distribution backplane (PB1)
10 75G2878 5 Screw, M3.5 x 8mm
11 NONUM 1 Power supply shelf
12 75G2878 11 Screw, M3.5 x 8mm
13 NONUM 1 Backplane assembly
14 75G2878 5 Screw, M3.5 x 8mm
466 Hardware (Remove and Replace; Part Locations and Listings)
