3. At this point, the cover can be removed from the module to expose the interposer.
4. To remove the cover from the bottom half of the interposer, perform the following:
a. Place the module on the ESD mat.
b. Place your thumb over one of the release latches and your forefinger over the opposite latch.
Note: To ensure proper grip, your thumb and finger should be directly over the latches and the
cover, not just at the ends of the latches.

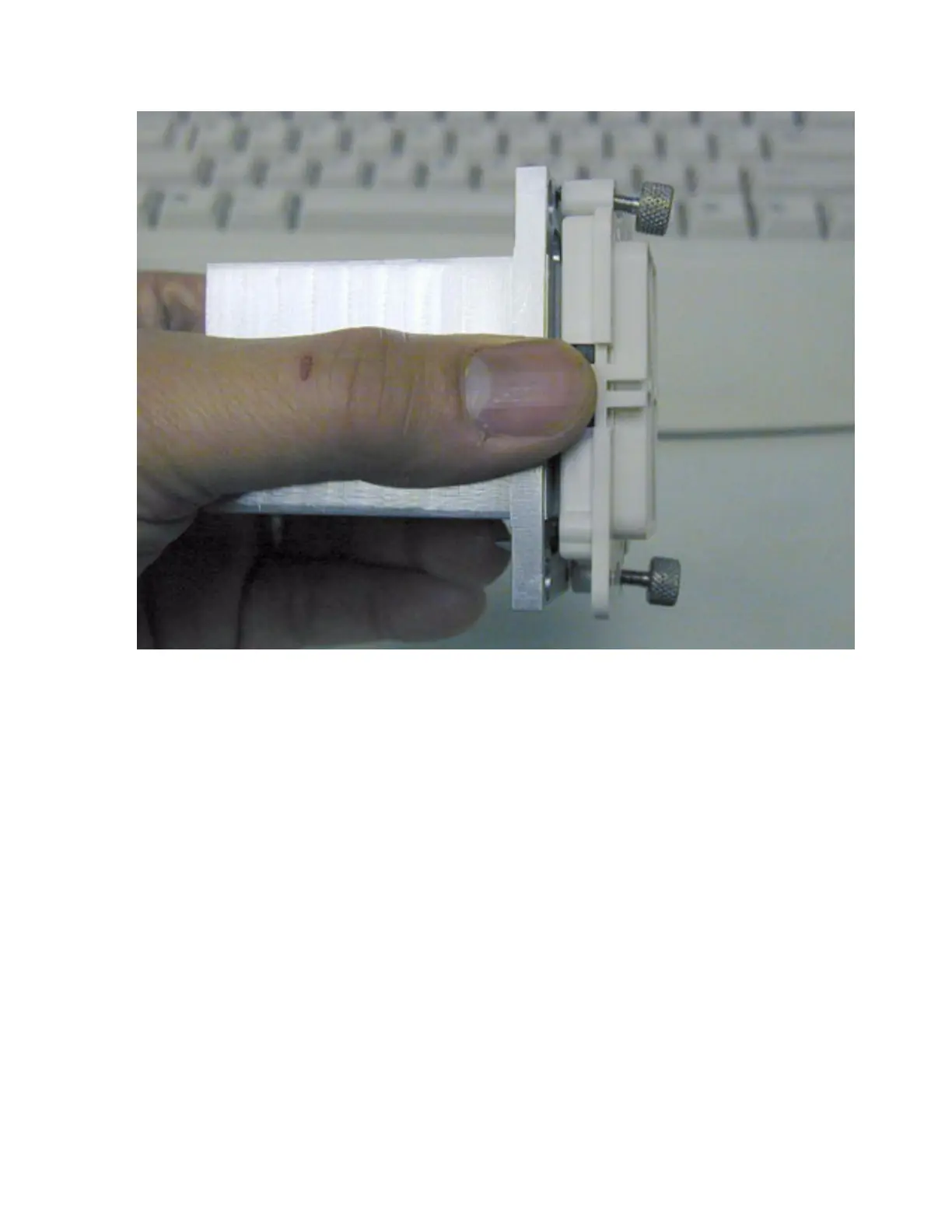

Figure 3. Place thumb and forefinger on the release latches
Analyze hardware problems 117
