Note: To view the dual line cord, 2 power supply, see Figure 6. Final assembly (continued) — FC 5074 (2
power supply dual line cord) (See page 462) in Final asssembly - FC 5074, FC 5094.

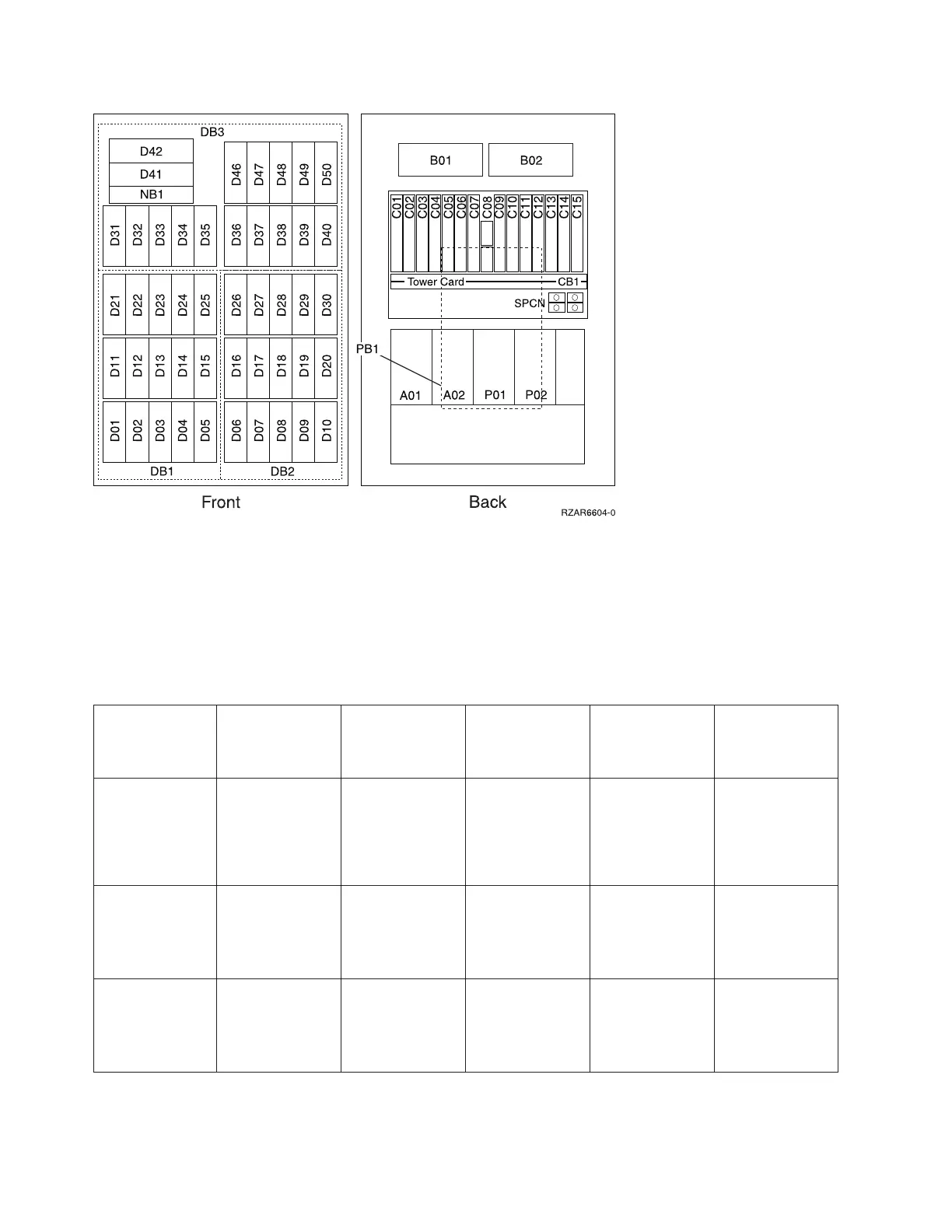

The following table gives the components available for callout on the FC 5074 Expansion I/O Tower. It
matches those components with the FRU containing the component. The other columns give location
information, CCIN information, a link to a remove and replace procedure, and additional information.
Table 1. FRU locations and failing components for FC 5074 Expansion I/O Towers
Possible failing
component FRU name Position
Type or CCIN
number (see the
Type, model, and
part number list)
Remove and
replace
procedure
Additional
comments
v SPCN
v Card enclosure
or backplane
v Multi-adapter
bridge (all)
Tower card CB1 28AB (See page
528)
Go to FC 5074,
FC 5079, FC
9079 - Tower card
- CB1
IOP PCI card C01 through C06,
C09 through C12,
C14, C15
2842 (See page
527), 2843 (See
page 527), or
2844 (See page
527)
Go to FC 5074,
FC 5079, FC
5094, FC 5294 -
Cards
(concurrent).
IOA PCI card C02 through C04,
C06, C07, C09,
C10, C12 through
C15
See the Type,
model, and part
number list
Go to FC 5074,
FC 5079, FC
5094, FC 5294 -
Cards
(concurrent).
296 Hardware (Remove and Replace; Part Locations and Listings)
