Table 4. Final assembly, rear - Models 830 and SB2 with FC 9074 (continued)
Index Part number Units Description
21 24L0823 1 EMC access plate
22 NONUM 1 Air moving device (AMD) door assembly
23 1621811 2 Screw, M4 (10mm)
24 44L0023 2 Air moving device (AMD) (B01, B02)
25 24L0891 1 Power board/stiffener assembly (PB1)
26 1621816 6 Screw
27 16G8095 1 Time of day (TOD) battery
28 24L0926 1 PCI card cage assembly
29 1621811 6 Screw, M4 (10mm)

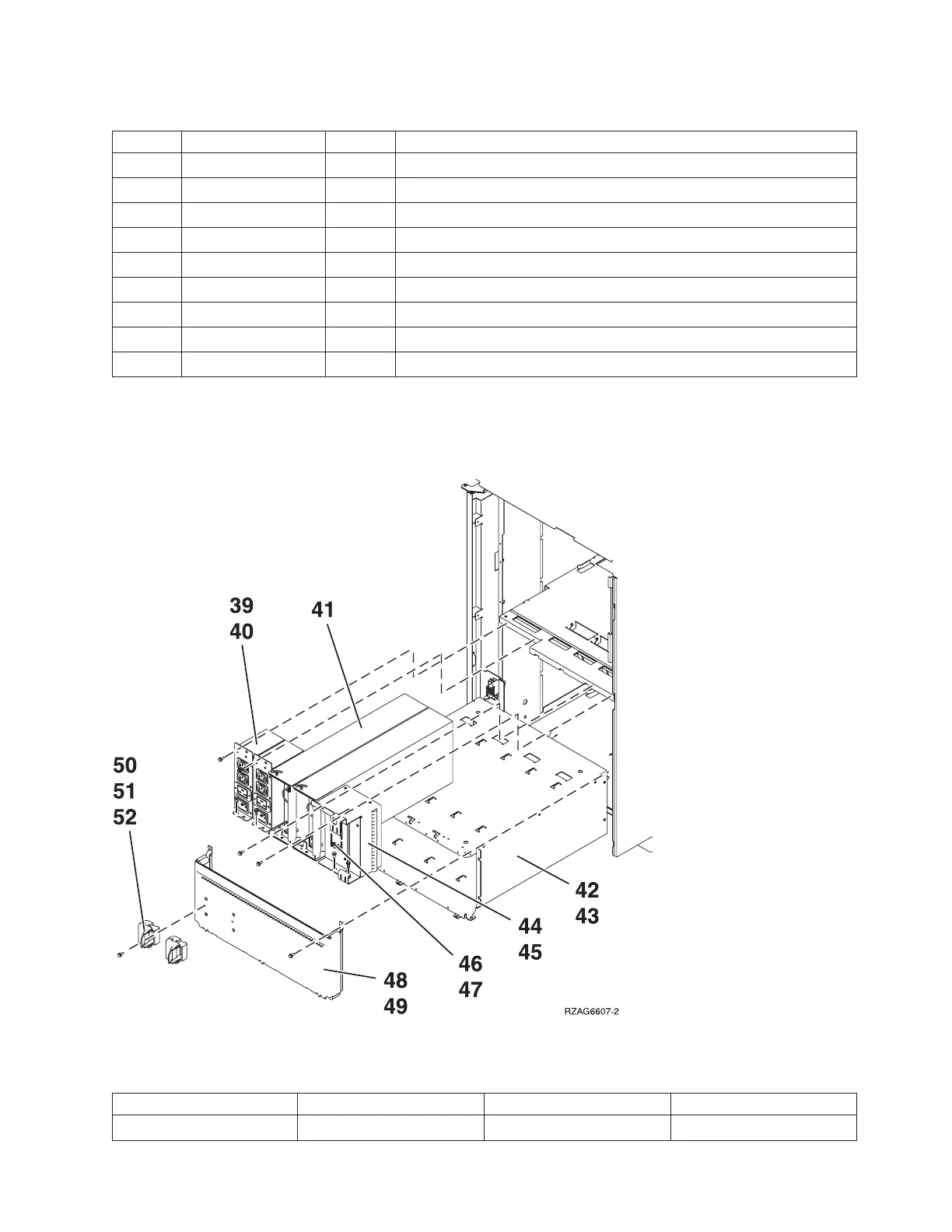

Figure 5. Final assembly, rear - Models 830 and SB2 with FC 9074 (continued), (2 power supply
dual line cord)
Table 5. Final assembly, rear - Models 830 and SB2 with FC 9074 (continued), (2 power supply dual
line cord)
39 21P6347 2 AC module
40 1621811 4 Screw, M4 (10mm)
Analyze hardware problems 407
