Notes:
1.
Please
choose
the
correct
antenna
R
for
LCD.
Choose
antenna
R
with
gasket
for
FRU
LCD
92P6728
(Samsung),
while
antenna
R
without
gasket
for
FRU
LCD
92P6687
(ID
Tech).

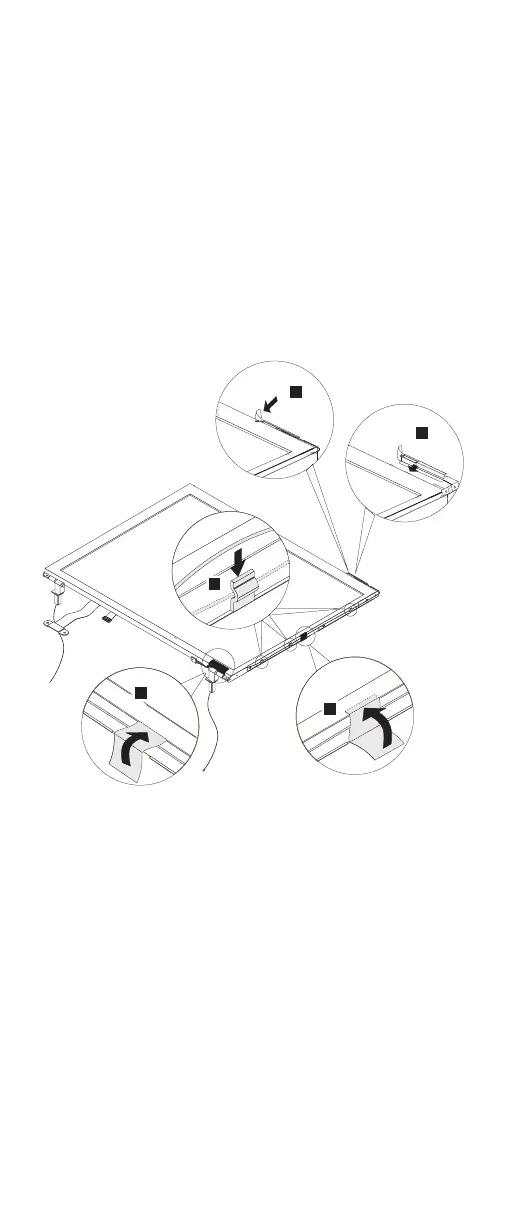

2.
When
installing,
please
align
the
antenna
hook
with
the
LCD
edge
to
put
the
antenna
R
back
to
its
original
place,
shown
as
1,
and
reattach
the
mylar,
shown
as
2.
Then
put
the
antenna
R
in
the
three
clips,
shown
as
3,
and
put
the
tape
back
to
its
original
place,
shown
as
4a
and
4b,
before
securing
it
with
the
one
screw.
3
4a
4b
2
1
Removing
and
replacing
a
FRU
104
ThinkPad
X40
(2369,
2370,
2371,
2372,
2382,
2386)
