1050
Keyboard
For
access,
remove
following
FRU:
v
“1010
Battery
pack”
on
page
76

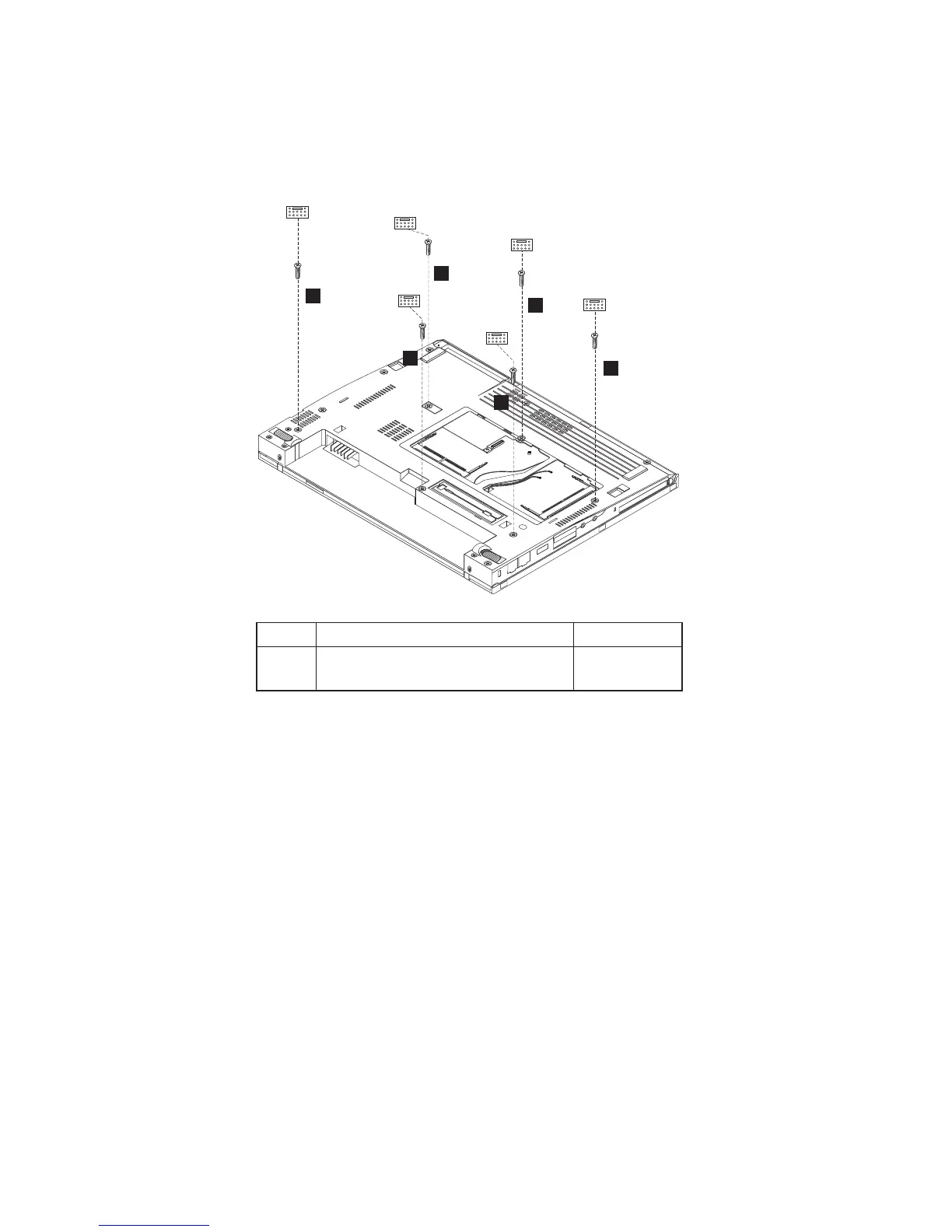

Remove
6
screws
with
keyboard
icon
to
remove
keyboard.
1
1
1
1
1
1
Step
Screw
(quantity)
T
orque
1
M2
×
6
mm,
nylon-coated
(6)
0.196
Nm
(2
kgfcm)
(continued)
Removing
and
replacing
a
FRU
82
MT
2369/2370/2371/2372/2382/2386
85
87
