When installing: Follow the steps below.

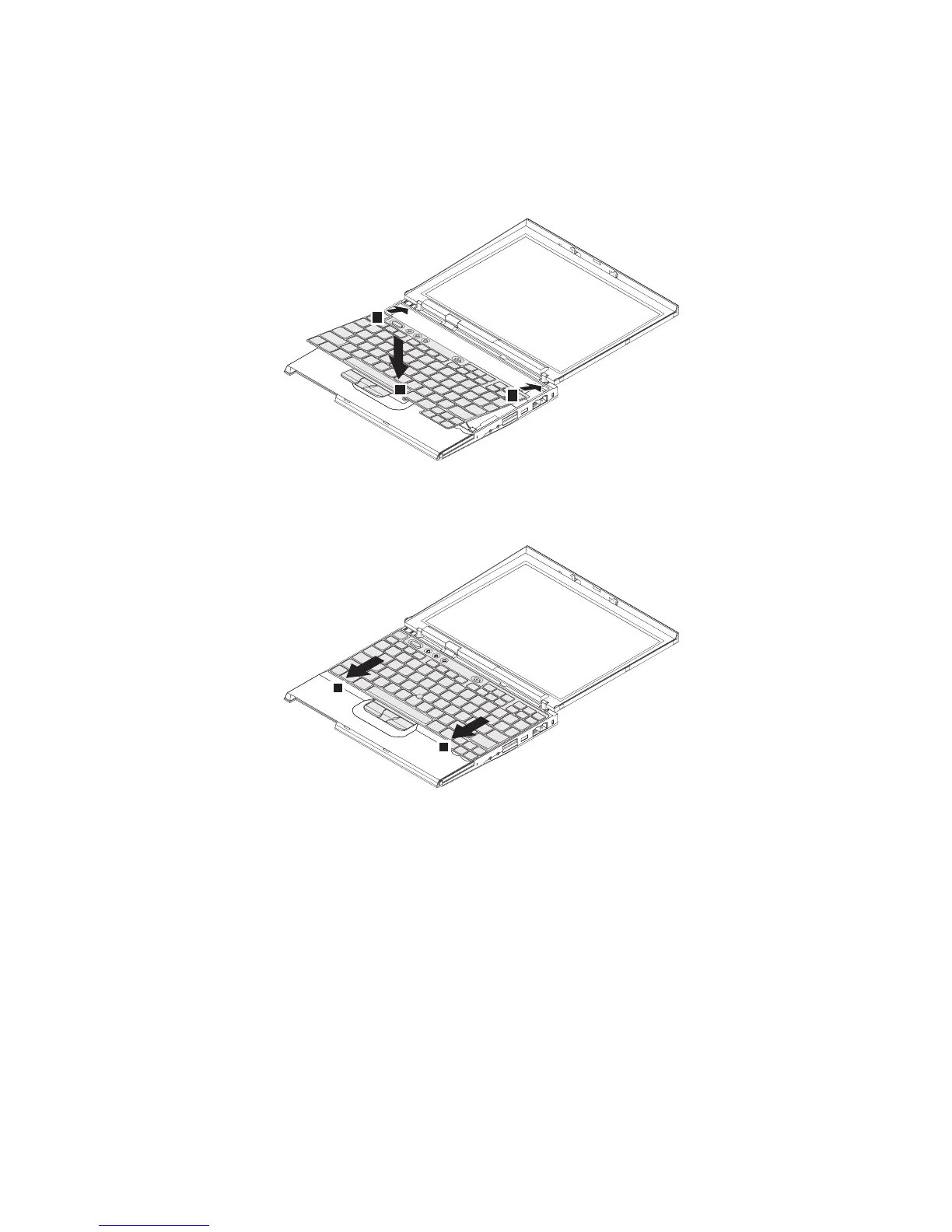

1. Attach the connector.
2. Make sure that the keyboard edges, shown in the step
1, are under the frame. Then press the keys
indicated by step 2 to latch the keyboard firmly in
place.
1
1
2
3. To make sure that the front side of the keyboard is
housed firmly, gently press the keys with your thumbs
and try to slide the keyboard toward you.
3
3
4. Secure the keyboard by tightening the screws from the
bottom side of the computer.
Removing and replacing a FRU
84 MT 2369/2370/2371/2372/2382/2386
