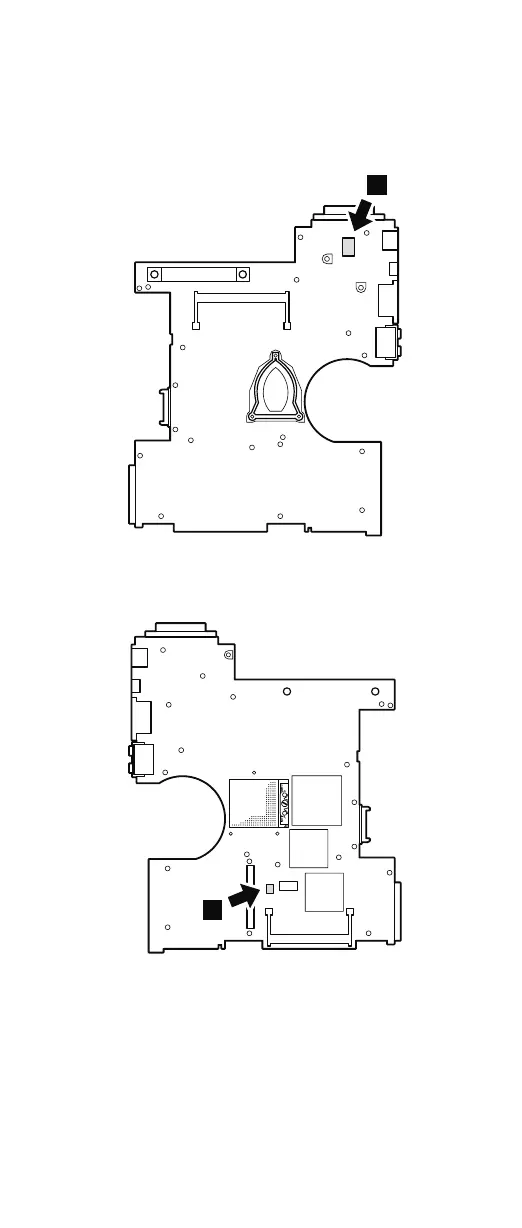

Important notice for handling the system board:
The security chip a is soldered on the underside of the
system board as in this figure.
a
The accelerometer chip for the IBM HDD Active Protection
System b is also soldered on the topside of the system
board.
b
Removing and replacing a FRU
ThinkPad T43 Series 141
